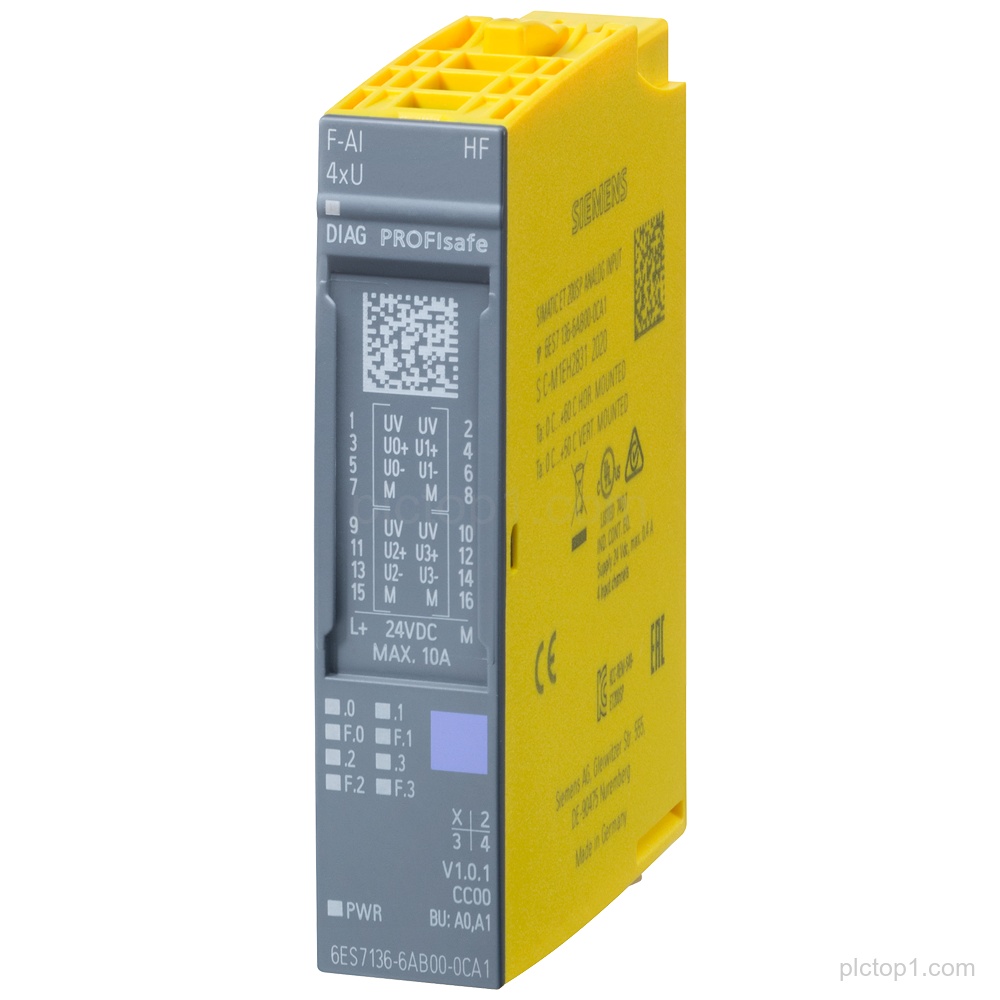

SIMATIC DP electronics module ET 200SP F-AI 4xU 0..10V HF with part number 6ES7136-6AB00-0CA1 for fail-safe analog inputs.
Detailed Parameters
Product family:SIMATIC DP
System:ET 200SP
Module designation:F-AI 4xU 0..10V HF
Input type:fail-safe analog inputs
Channel count:4
Input range:0..10 V
Safety integrity level (functional safety):up to SIL 3 (IEC 61508)
Performance level (functional safety):up to PL E (ISO 13849)
Engineering Context
Use the SIMATIC DP electronics module ET 200SP F-AI 4xU 0..10V HF as a fail-safe analog input module.
The module provides 4 fail-safe analog input channels for an input range of 0..10 V.
Functional safety is specified with up to SIL 3 (IEC 61508) and up to PL E (ISO 13849).
FAQ
1. What is the module type for 6ES7136-6AB00-0CA1?
6ES7136-6AB00-0CA1 is a SIMATIC DP electronics module ET 200SP designated as F-AI 4xU 0..10V HF for fail-safe analog inputs.
2. How many analog input channels does the F-AI 4xU 0..10V HF module provide?
It provides 4 channels.
3. What input voltage range is supported?
The module supports an input range of 0..10 V.
4. What functional safety levels are specified for this module?
It is specified up to PL E (ISO 13849) and up to SIL 3 (IEC 61508).
