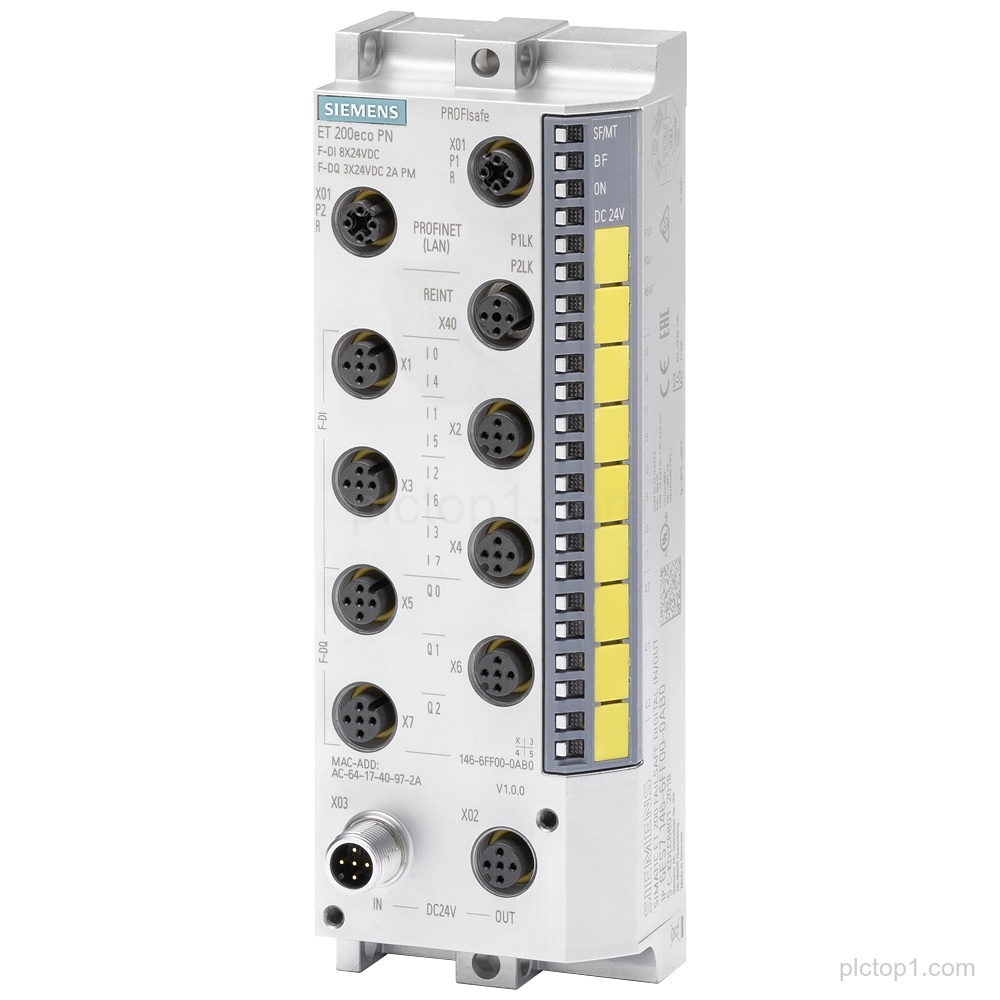

SIMATIC DP, ET 200eco PN, with part number 6ES7146-6FF00-0AB0, provides F-DI 8×24 V and F-DQ 3×24 V 2 A using a M12 PROFIsafe design and includes an eCoding plug-in connector.
Detailed Parameters
System family:SIMATIC DP
Remote terminal:ET 200eco PN
Module type:F-DI 8×24 V / F-DQ 3×24 V 2 A
Connector type:M12 PROFIsafe
Safety level (ISO 13849):up to PL e
Safety integrity level (IEC 61508):up to SIL 3
Degree of protection:IP65/67
Included accessory:including eCoding plug-in connector
Engineering Context
The SIMATIC DP ET 200eco PN module provides a mixed F-DI and F-DQ configuration with defined channel counts.
The design uses a M12 PROFIsafe interface and supports safety concepts up to PL e (ISO 13849) and up to SIL 3 (IEC 61508).
The specified degree of protection for the module is IP65/67.
FAQ
1. What signal configuration does 6ES7146-6FF00-0AB0 provide?
It provides F-DI 8×24 V and F-DQ 3×24 V 2 A.
2. What connector type is used on 6ES7146-6FF00-0AB0?
It uses a M12 PROFIsafe connector.
3. Which safety levels are specified for 6ES7146-6FF00-0AB0?
It is specified for up to PL e (ISO 13849) and up to SIL 3 (IEC 61508).
4. What is the degree of protection of 6ES7146-6FF00-0AB0?
The degree of protection is IP65/67.
5. Is an eCoding plug-in connector included with 6ES7146-6FF00-0AB0?
Yes, it includes an eCoding plug-in connector.
