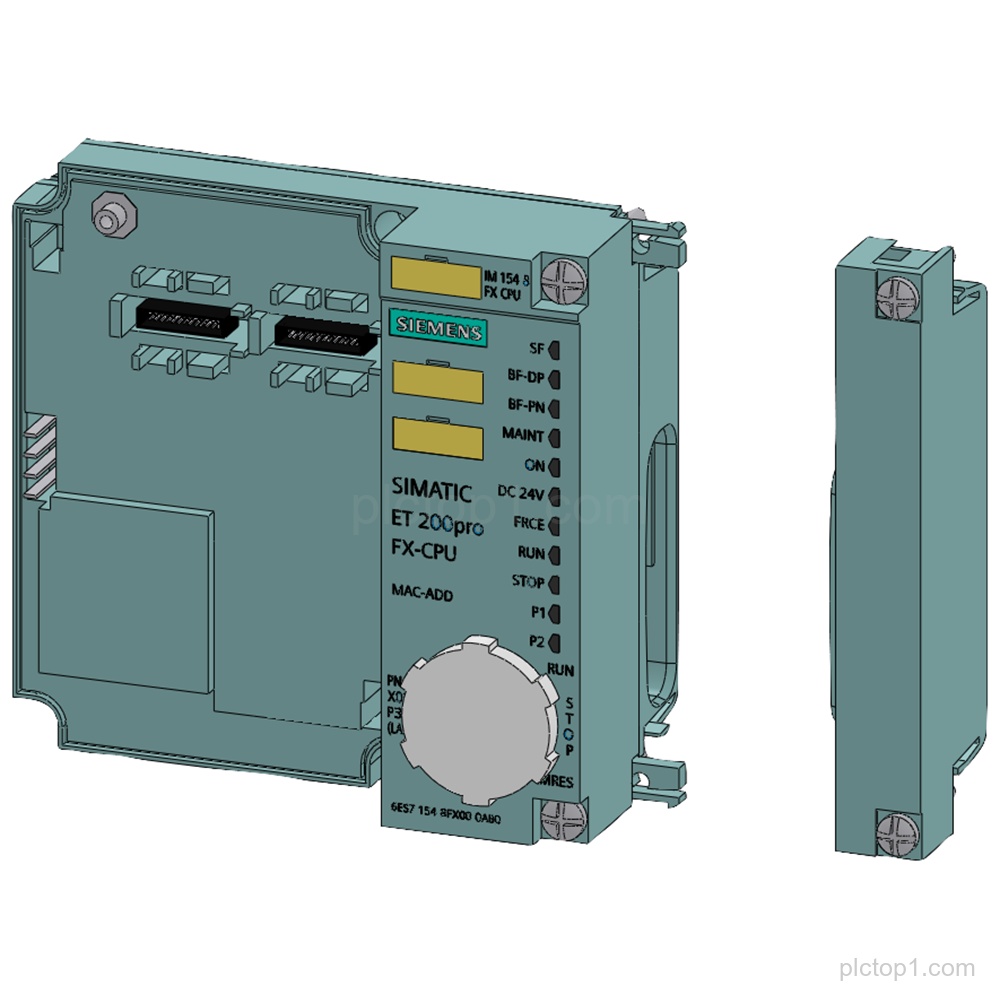

SIMATIC DP SIMATIC IM154-8FX PN/DP CPU, order-relevant for part number 6ES7154-8FX00-0AB0 in the ET200 Pro environment; a Micro Memory Card and connection module are required.
Detailed Parameters
Spare part:SIMATIC DP, IM154-8FX PN/DP CPU for ET200 Pro
Work memory:1.5 MB
Internal PROFINET interface:Yes
Internal PROFIBUS DP master/device interface:Degree of protection IP65/67
Required accessories:Micro Memory Card and connection module required
Engineering Context
The IM154-8FX PN/DP CPU is intended as a SIMATIC DP spare part for ET200 Pro systems.
The CPU provides internal PROFINET and internal PROFIBUS DP master/device interface capability.
A Micro Memory Card and connection module are required for operation in the specified configuration.
FAQ
1. What product family and designation does part 6ES7154-8FX00-0AB0 belong to?
It is a SIMATIC DP IM154-8FX PN/DP CPU.
2. What CPU work memory is specified for 6ES7154-8FX00-0AB0?
1.5 MB work memory.
3. Which internal interfaces are provided on the IM154-8FX PN/DP CPU?
Internal PROFINET interface and internal PROFIBUS DP master/device interface.
4. What degree of protection is stated for the internal PROFIBUS DP master/device interface?
IP65/67.
5. What items are required in addition to the CPU for ET200 Pro?
Micro Memory Card and connection module required.
