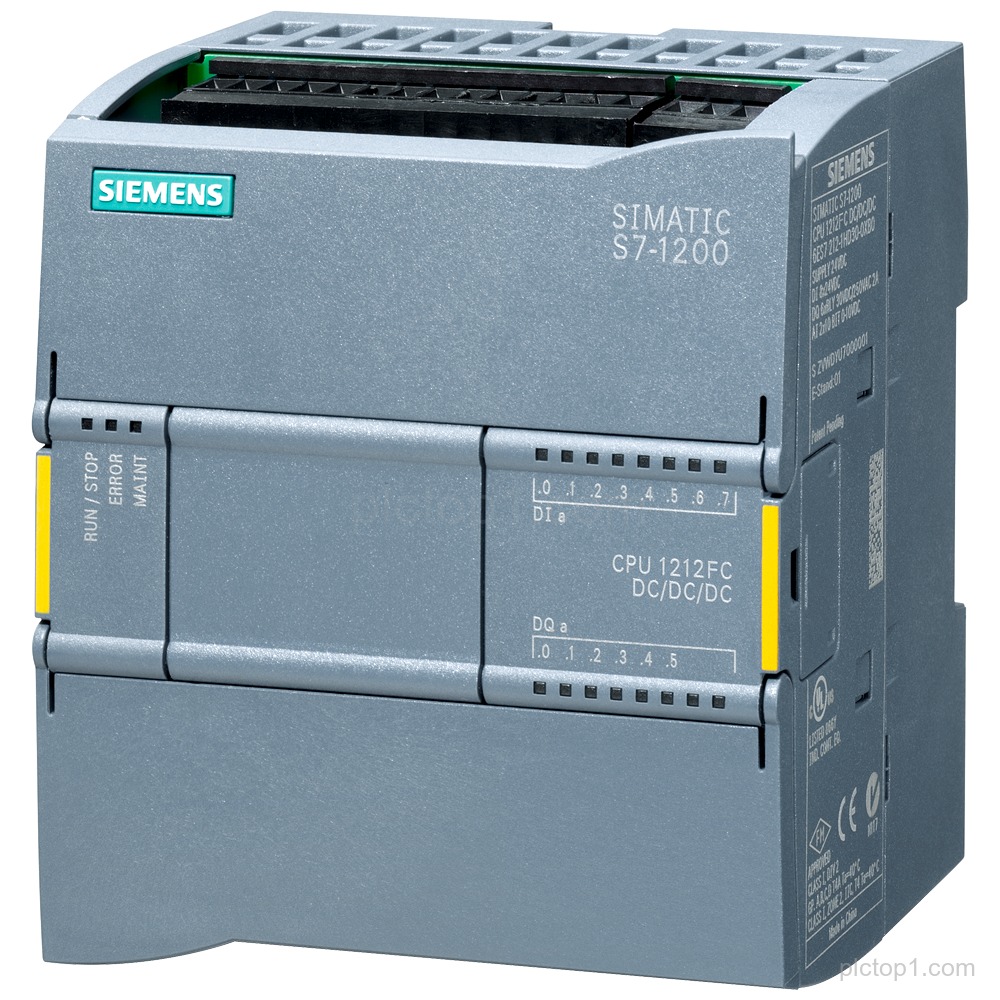

SIMATIC S7-1200 CPU 1212FC compact CPU provides onboard I/O with DI, DO relay outputs, and analog inputs, with power supply operation from DC 20.4-28.8 V DC (part number: 6ES7212-1HF40-0XB0).
Detailed Parameters
Part number:6ES7212-1HF40-0XB0
Product family:SIMATIC S7-1200
CPU type:CPU 1212FC
Design:compact CPU
Output/Power design:DC/DC/relay
Onboard I/O: DI:8 DI 24 V DC
Onboard I/O: DO:6 DO relay 2 A
Onboard I/O: AI:2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:150 KB
Engineering Context
The SIMATIC S7-1200 CPU 1212FC compact CPU integrates digital inputs, relay digital outputs, and analog inputs on board.
The DC/DC/relay design supports an onboard DO stage specified as relay 2 A and power supply operation from DC 20.4-28.8 V DC.
Program and data storage are specified as 150 KB for the CPU 1212FC.
FAQ
1. What is the product family and CPU designation for part number 6ES7212-1HF40-0XB0?
The product family is SIMATIC S7-1200 and the CPU designation is CPU 1212FC.
2. How many onboard digital inputs are available on CPU 1212FC, and what signal voltage is specified?
CPU 1212FC provides onboard I/O with 8 DI 24 V DC.
3. How many onboard relay digital outputs are provided, and what current rating is specified?
CPU 1212FC provides onboard I/O with 6 DO relay 2 A.
4. What analog input range is specified for the onboard AI channels?
CPU 1212FC provides 2 AI 0-10 V DC.
5. What power supply range is specified for the CPU 1212FC?
The power supply is specified as DC 20.4-28.8 V DC.
6. What program/data memory is specified for CPU 1212FC?
Program/data memory is specified as 150 KB.
