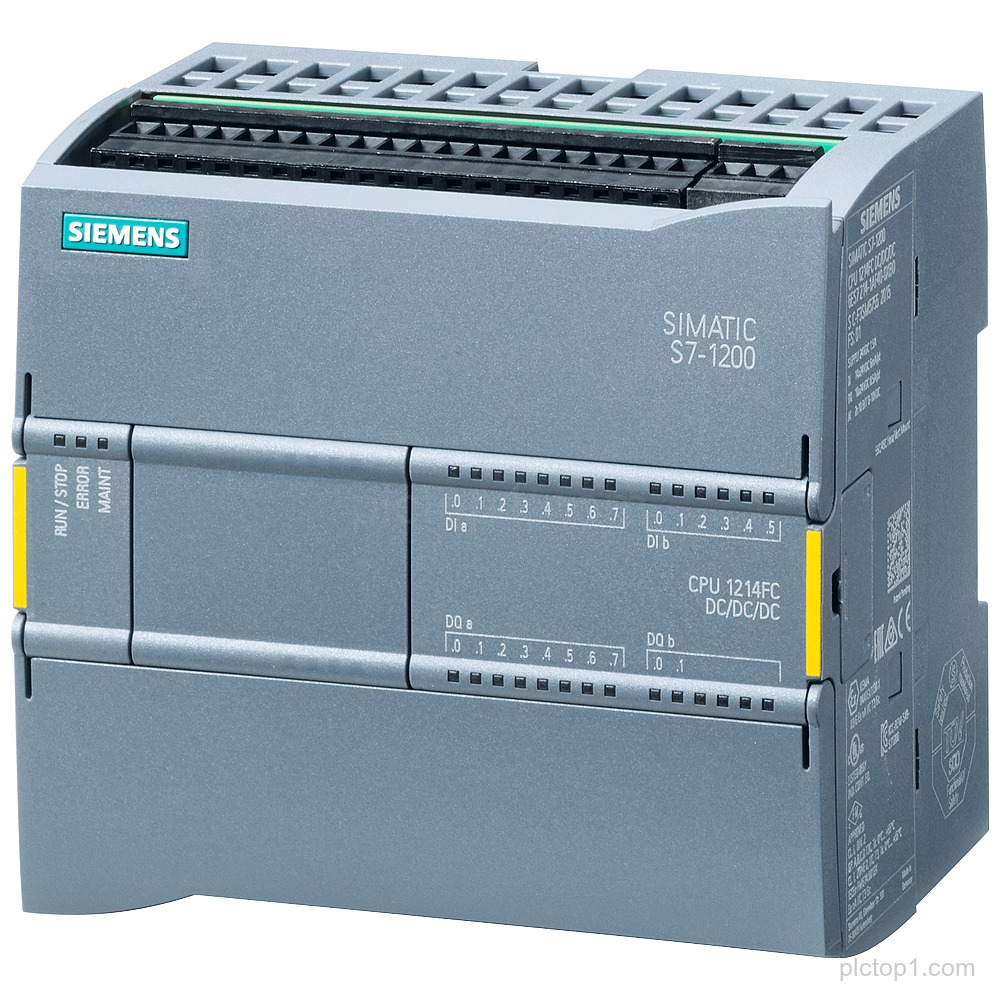

SIMATIC S7-1200F CPU 1214 FC (part number 6ES7214-1AF40-0XB0) provides a compact CPU with DC/DC/DC and onboard I/O consisting of 14 DI, 10 DO, and 2 AI.
Detailed Parameters
Product family:SIMATIC S7-1200F
CPU:CPU 1214 FC
CPU type:compact CPU
Power supply concept:DC/DC/DC
Onboard I/O:14 DI 24 V DC; 10 DO 24 V DC; 2 AI 0-10 V DC
Power supply:DC 20.4-28.8 V DC
Program/data memory:200 KB
Engineering Context
The SIMATIC S7-1200F CPU 1214 FC is configured as a compact CPU providing onboard I/O for 24 V DC digital input and output and 0-10 V DC analog input.
The CPU 1214 FC supports a DC/DC/DC power supply concept and is powered by DC 20.4-28.8 V DC.
The program/data memory of the CPU 1214 FC is specified as 200 KB.
FAQ
1. What Siemens product family and CPU designation are provided by 6ES7214-1AF40-0XB0?
The product is in the SIMATIC S7-1200F family with CPU 1214 FC.
2. How many onboard digital inputs and outputs does the CPU 1214 FC provide?
It has 14 DI 24 V DC and 10 DO 24 V DC onboard I/O.
3. How many analog inputs are available onboard and what is the analog input range?
It provides 2 AI with 0-10 V DC.
4. What is the specified power supply range and power supply concept for the CPU 1214 FC?
Power supply range is DC 20.4-28.8 V DC and the power supply concept is DC/DC/DC.
5. What program/data memory is specified for CPU 1214 FC?
Program/data memory is specified as 200 KB.
