Product information

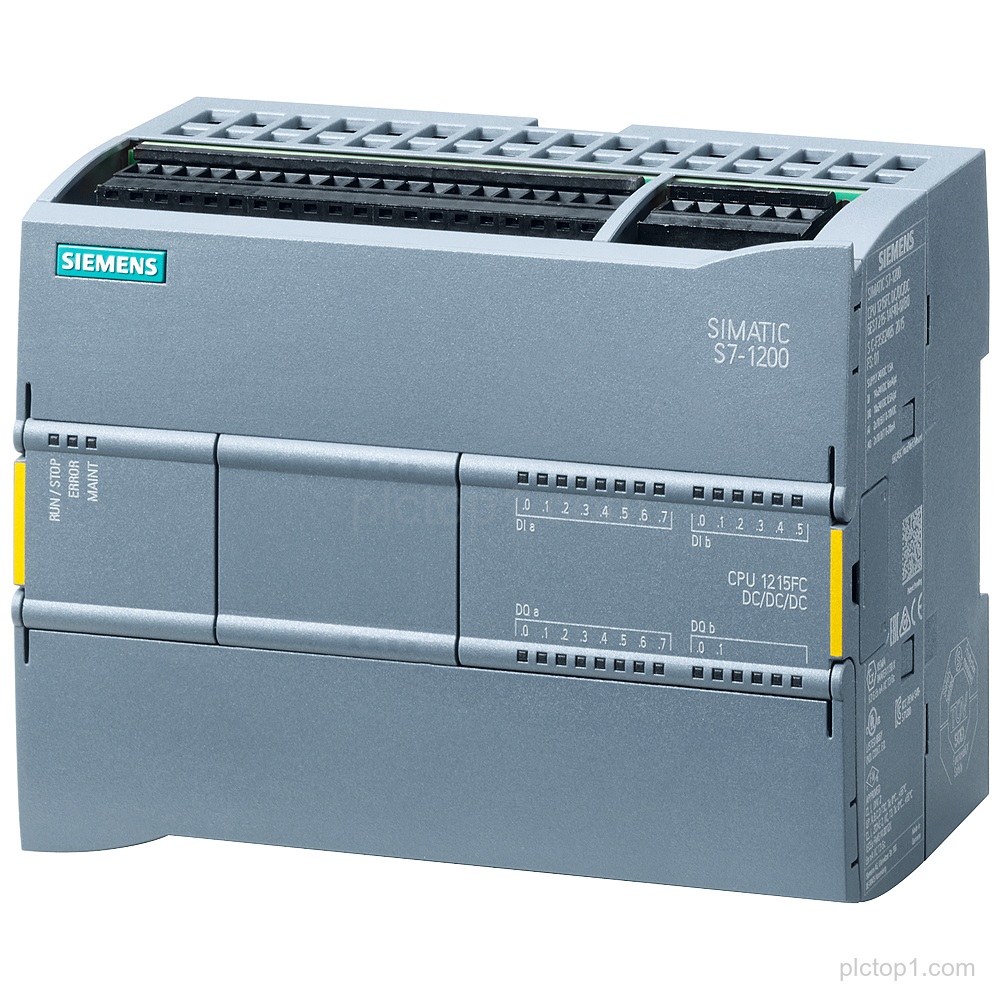

SIMATIC S7-1200F CPU 1215 FC (Part Number: 6ES7215-1AF40-0XB0) provides a compact controller with 2 PROFINET ports, onboard I/O, and specified memory for program/data storage.
Detailed Parameters
Product family:SIMATIC S7-1200F
CPU type:CPU 1215 FC
Design:compact CPU
Power supply:DC 20.4-28.8 V DC
Power supply type:DC/DC/DC
PROFINET ports:2
Onboard I/O – DI:14 DI 24 V DC
Onboard I/O – DO:10 DO 24 V DC; 0.5 A
Onboard I/O – AI:2 AI 0-10 V DC
Onboard I/O – AO:2 AO 0-20 mA DC
Program/data memory:250 KB
Engineering Context
Designed as a SIMATIC S7-1200F compact CPU for operation with DC 20.4-28.8 V DC.
Provides 2 PROFINET ports and onboard I/O including digital input/output and analog input/output channels.
Stores program and data in 250 KB program/data memory.
FAQ
1. Which product family and CPU designation does 6ES7215-1AF40-0XB0 belong to?
6ES7215-1AF40-0XB0 is SIMATIC S7-1200F CPU 1215 FC.
2. How many PROFINET ports are included?
It has 2 PROFINET ports.
3. What onboard digital inputs and outputs are available?
Onboard I/O includes 14 DI 24 V DC and 10 DO 24 V DC; 0.5 A.
4. What onboard analog input/output ranges are provided?
Onboard I/O includes 2 AI 0-10 V DC and 2 AO 0-20 mA DC.
5. What is the required power supply range and type?
Power supply: DC 20.4-28.8 V DC; power supply type: DC/DC/DC.
6. How much program/data memory is available?
Program/data memory is 250 KB.
