Product information

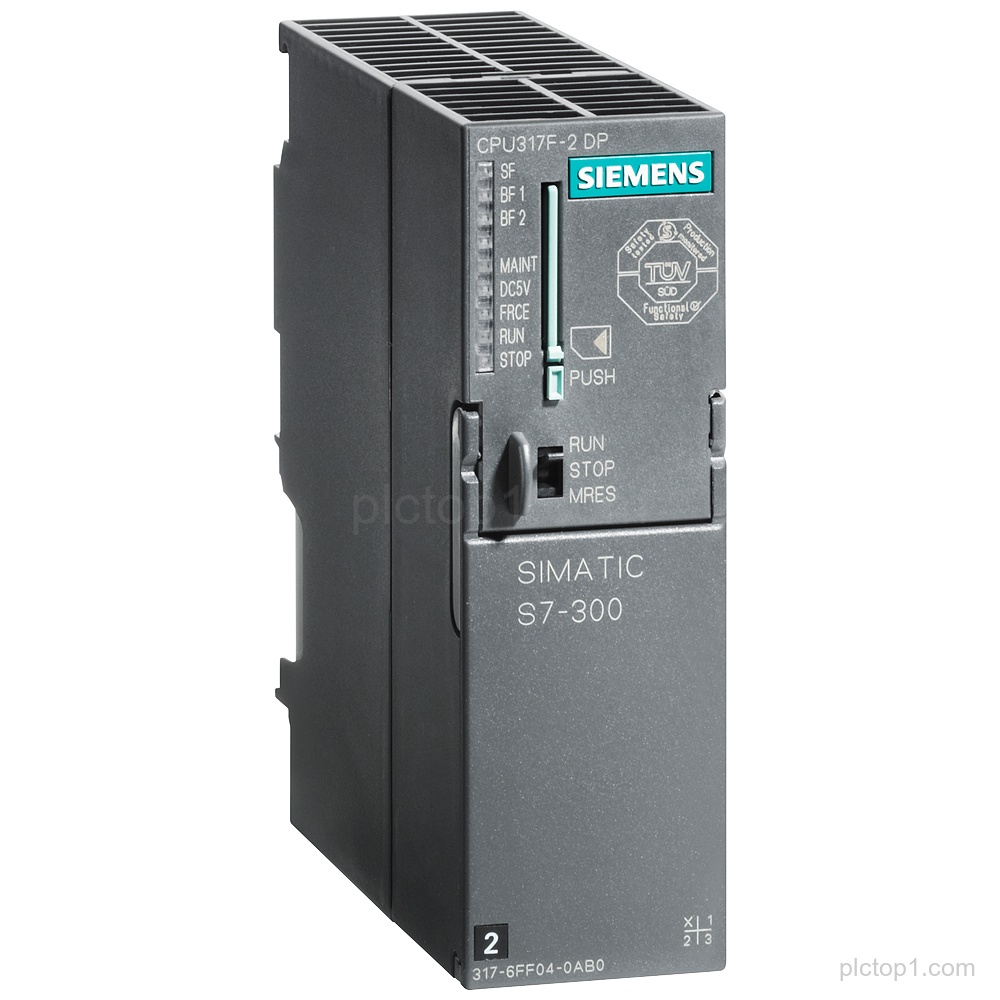

SIMATIC S7-300 CPU 317F-2DP (Part Number: 6ES7317-6FF04-0AB0) provides central processing with 1.5 MB work memory and an MPI/DP 12 Mbps 1st interface, and it supports a 2nd DP master/slave interface with software package requirement for use with S7 Distributed Safety V5.2 SP1 or higher.
Detailed Parameters
Product type:Central processing unit
Product family:SIMATIC S7-300
CPU designation:CPU 317F-2DP
Work memory:1.5 MB
1st interface:MPI/DP
1st interface data rate:12 Mbps
2nd interface:DP master/slave
Memory card requirement:Micro Memory Card required
Software package requirement:S7 Distributed Safety V5.2 SP1 or higher
Engineering Context
CPU 317F-2DP is a SIMATIC S7-300 central processing unit configured with an MPI/DP 12 Mbps 1st interface.
The CPU includes a 2nd interface configured as DP master/slave.
For use with S7 Distributed Safety, a Micro Memory Card is required and the software package S7 Distributed Safety V5.2 SP1 or higher is specified.
FAQ
1. What product family and CPU designation are associated with Part Number 6ES7317-6FF04-0AB0?
It is associated with SIMATIC S7-300 and the CPU designation CPU 317F-2DP.
2. What work memory is provided by the CPU 317F-2DP?
The CPU provides 1.5 MB work memory.
3. What are the interface types and data rate for the 1st interface?
The 1st interface is MPI/DP with a data rate of 12 Mbps.
4. How is the 2nd interface configured?
The 2nd interface is configured as DP master/slave.
5. What is required to use the CPU with S7 Distributed Safety?
A Micro Memory Card is required, and it can be used with software package S7 Distributed Safety V5.2 SP1 or higher.
