Product information

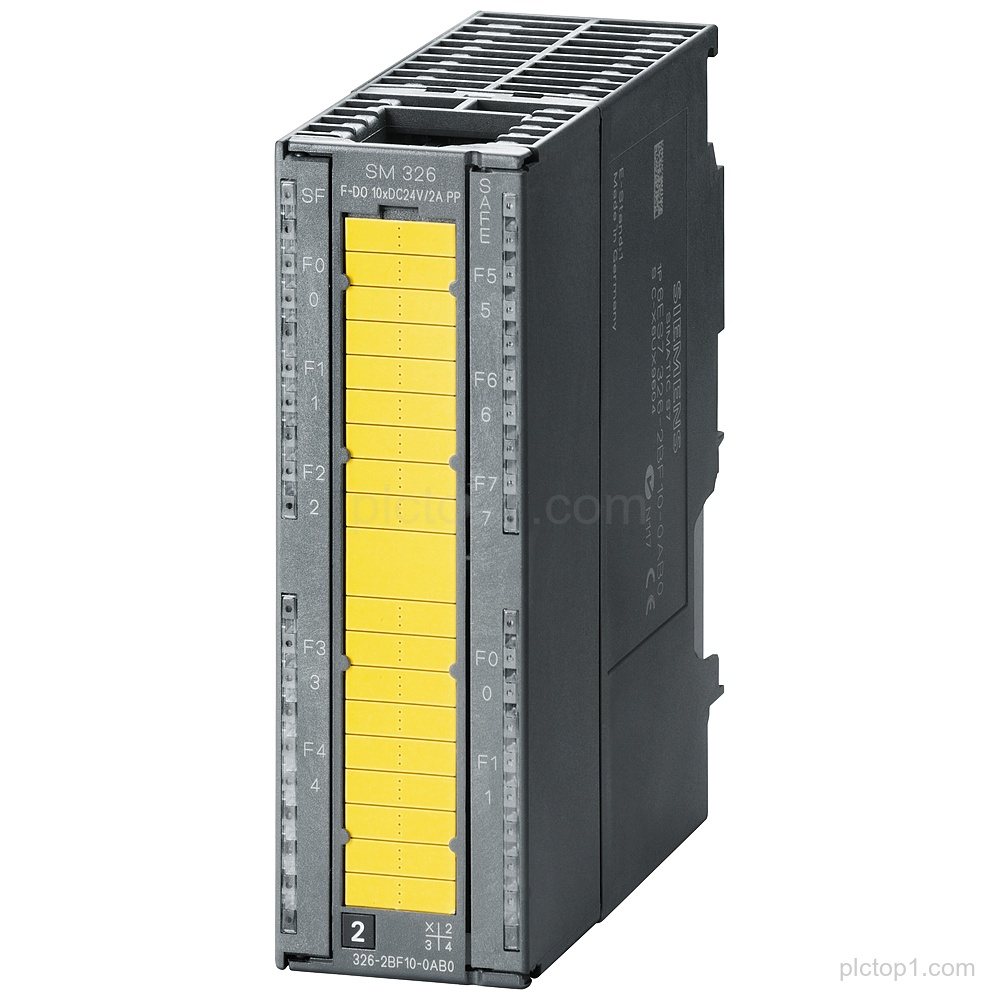

SIMATIC S7 digital output SM 326 F-DO 10x 24 V DC/2 A PP, fail-safe digital output, part number 6ES7326-2BF10-0AB0, for SIMATIC S7F systems.
Detailed Parameters
Product family:SIMATIC S7
Module:digital output SM 326
Designation:F-DO 10x 24 V DC/2 A PP
Fail-safe function:fail-safe digital output for SIMATIC S7F systems
Diagnostics:with diagnostic alarm
LVV:LVV
Functional safety category:up to category 4 (EN 954-1)
Safety integrity level:SIL3 (IEC61508)
Performance level:PLE (ISO13849)
Connector / pole count:1x 40-pole
Spare part:***spare part***
Engineering Context
The SM 326 provides a fail-safe digital output configured as F-DO 10x 24 V DC/2 A PP for SIMATIC S7F systems.
The module includes a diagnostic alarm as stated for the fail-safe digital output.
The functional safety performance is specified as up to category 4 (EN 954-1) / SIL3 (IEC61508) / PLE (ISO13849).
FAQ
1. What does the 6ES7326-2BF10-0AB0 module provide?
It is a SIMATIC S7 digital output SM 326 configured as a fail-safe digital output (F-DO 10x 24 V DC/2 A PP) for SIMATIC S7F systems.
2. How many output channels and what output level are specified for this F-DO module?
The designation specifies F-DO 10x 24 V DC/2 A PP.
3. Does the module include diagnostics?
Yes, it is specified as “with diagnostic alarm.”
4. Which functional safety targets are stated for this module?
It is stated as “up to category 4 (EN 954-1) / SIL3 (IEC61508) / PLE (ISO13849).”
5. What connector/pole count is specified?
It is specified as “1x 40-pole.”
6. Is this item labeled as a spare part?
Yes, the product information explicitly marks it as ***spare part***.
