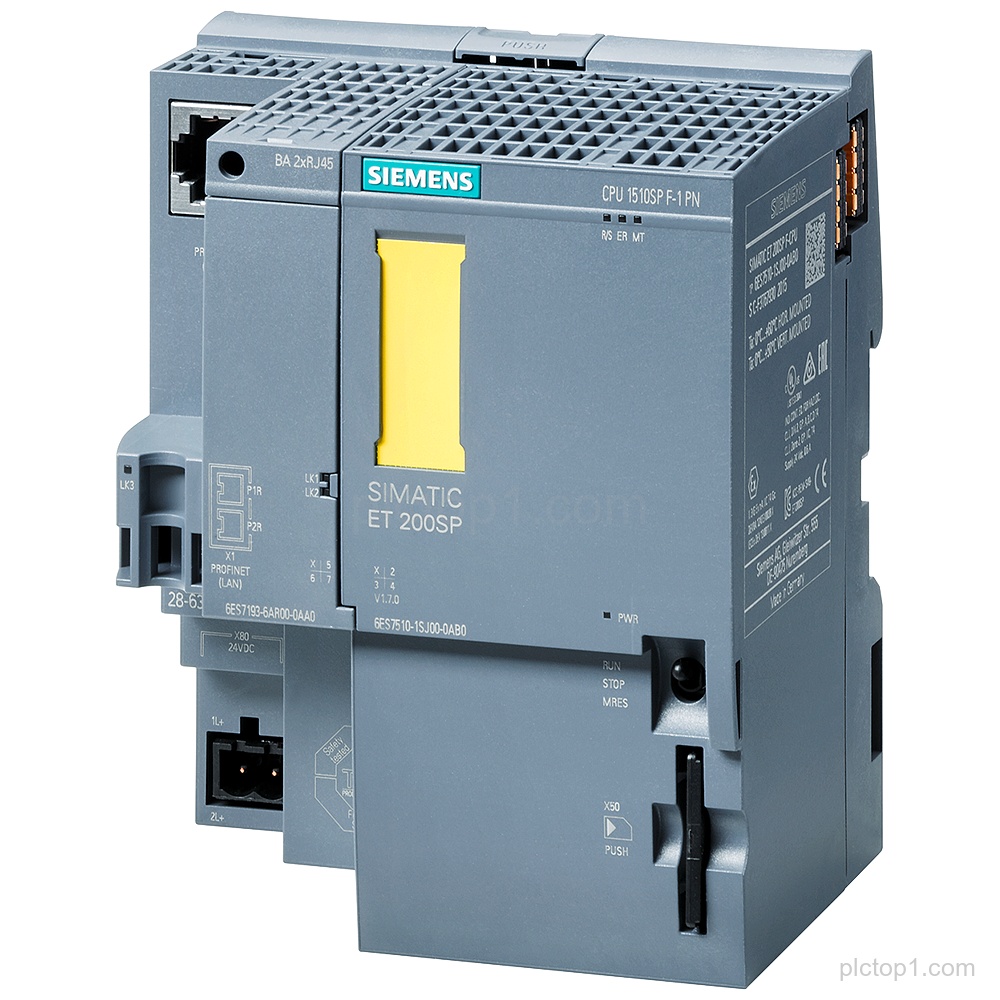

SIMATIC DP CPU 1510SP F-1 PN (6ES7510-1SJ01-0AB0) for ET 200SP is provided as a central processing unit with PROFINET IRT interface and requires SIMATIC Memory Card, plus BusAdapter for port 1 and 2.
Detailed Parameters
Product family:SIMATIC DP
Siemens designation:CPU 1510SP F-1 PN
For system:ET 200SP
Work memory for program:150 KB
Work memory for data:750 KB
1st interface:PROFINET IRT with 3-port switch
Bit performance:72 ns
SIMATIC Memory Card:required
BusAdapter:required for port 1 and 2
Engineering Context
Used in SIMATIC DP configurations for ET 200SP as the central processing unit.
Provides an interface as PROFINET IRT with 3-port switch for the SIMATIC DP/ET 200SP system configuration.
Memory and port adapter components are required for operation, depending on the provided configuration.
FAQ
1. Which product family and Siemens designation does 6ES7510-1SJ01-0AB0 belong to?
6ES7510-1SJ01-0AB0 belongs to SIMATIC DP and is designated as CPU 1510SP F-1 PN.
2. What system is the CPU 1510SP F-1 PN for?
CPU 1510SP F-1 PN is for ET 200SP.
3. What work memory capacities are provided for program and data?
Work memory is 150 KB for program and 750 KB for data.
4. What is the 1st interface and how is it configured?
The 1st interface is PROFINET IRT with 3-port switch.
5. What bit performance is specified for the CPU?
The specified bit performance is 72 ns.
6. Which additional components are required for this spare part?
SIMATIC Memory Card is required, and BusAdapter is required for port 1 and 2.
