Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

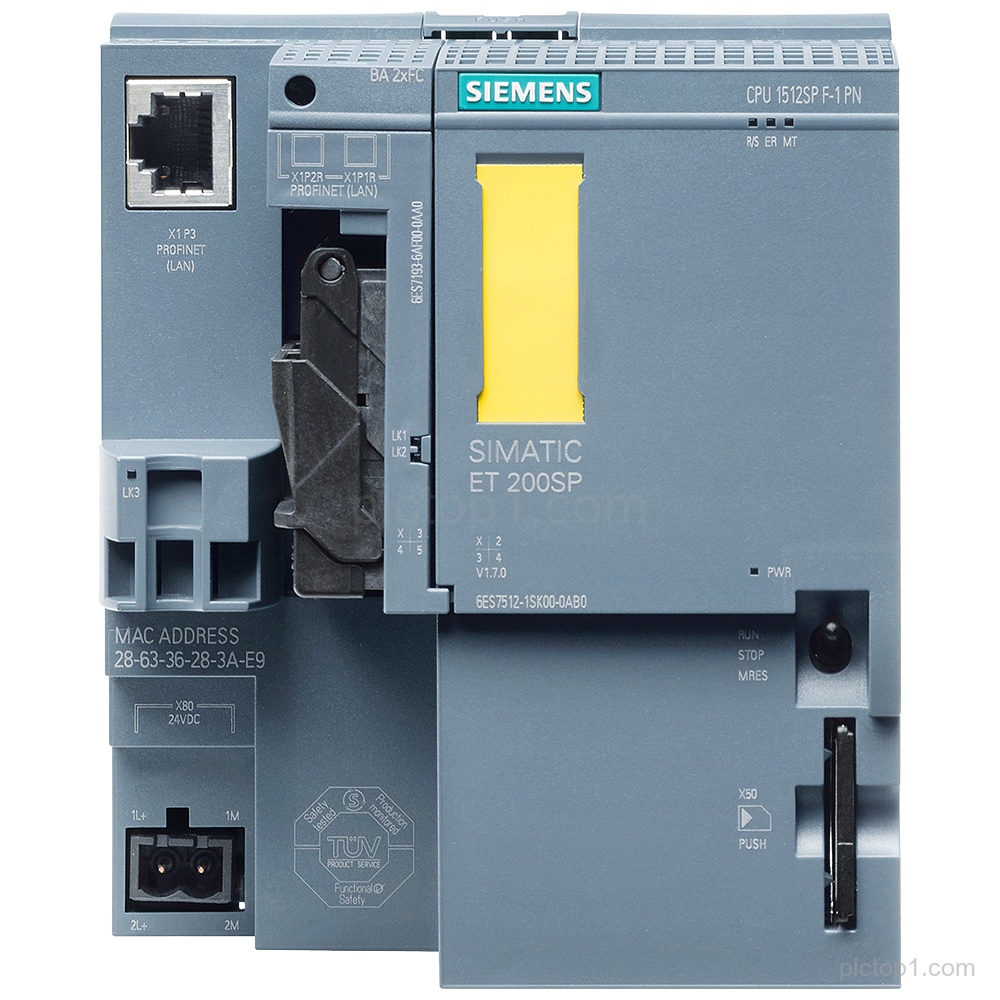

SIMATIC DP, SIMATIC DP CPU 1512SP F-1 PN (Part Number: 6ES7512-1SK01-0AB0) is designed as the central processing unit for ET 200SP.
Detailed Parameters
Product type:central processing unit
Spare part:spare part
System:SIMATIC DP
Application system:for ET 200SP
CPU designation:CPU 1512SP F-1 PN
Work memory for program:300 KB
Work memory for data:1 MB
1st interface:PROFINET IRT
1st interface port configuration:3-port switch
Bit performance:48 ns
Required for operation:SIMATIC Memory Card required
Required for port operation:BusAdapter required for port 1 and 2
Engineering Context
The SIMATIC DP CPU 1512SP F-1 PN is provided as a spare part for central processing in ET 200SP.
The CPU includes a 1st interface based on PROFINET IRT with a 3-port switch.
SIMATIC Memory Card and a BusAdapter for port 1 and 2 are required according to the provided product information.
FAQ
1. What is the product family and designation of the spare part with part number 6ES7512-1SK01-0AB0?
SIMATIC DP CPU 1512SP F-1 PN.
2. For which system is CPU 1512SP F-1 PN intended?
For ET 200SP.
3. What work memory capacities are specified for CPU 1512SP F-1 PN?
300 KB for program and 1 MB for data.
4. Which interface is provided as the 1st interface on CPU 1512SP F-1 PN?
PROFINET IRT with a 3-port switch.
5. What bit performance is stated for CPU 1512SP F-1 PN?
48 ns bit performance.
6. Which components are required according to the provided information?
SIMATIC Memory Card is required, and a BusAdapter is required for port 1 and 2.
