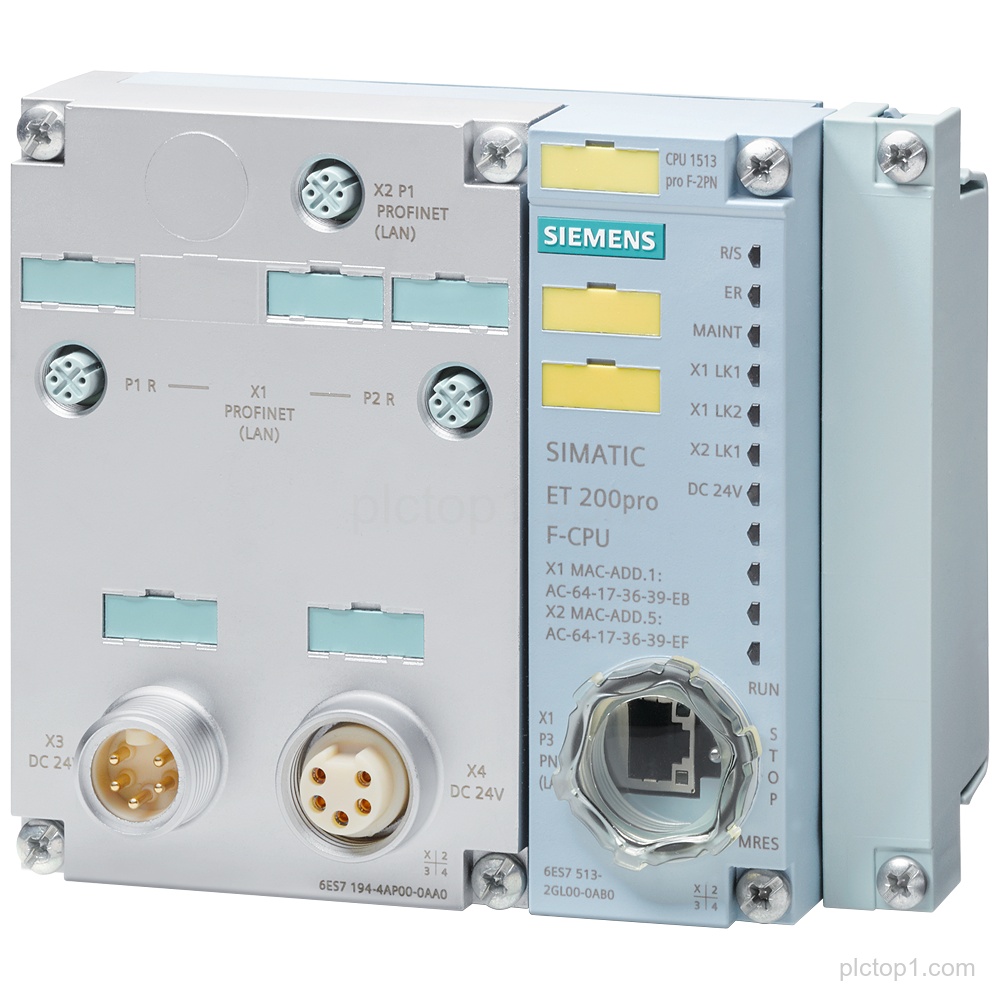

SIMATIC DP CPU 1513pro F-2 PN for ET 200pro, part number 6ES7513-2GL00-0AB0, provides central processing with specified work memory and PROFINET connectivity.
Detailed Parameters
Product type:CPU
System family:SIMATIC DP
CPU designation:CPU 1513pro F-2 PN
For:ET 200pro
Work memory (program):450 KB
Work memory (data):1.5 MB
1st interface:PROFINET IRT with 3-port switch
2nd interface:PROFINET RT
Bit performance:40 ns
Degree of protection:IP65/67
Required connection module:SIMATIC Memory Card required connection module required
Engineering Context
SIMATIC DP CPU 1513pro F-2 PN is specified for ET 200pro as a central processing unit.
The CPU provides two PROFINET interfaces, with the 1st interface implemented as PROFINET IRT with a 3-port switch and the 2nd interface as PROFINET RT.
The CPU work memory is specified as 450 KB for program and 1.5 MB for data.
FAQ
1. Which SIMATIC family and CPU designation does 6ES7513-2GL00-0AB0 belong to?
6ES7513-2GL00-0AB0 is a SIMATIC DP CPU with the designation CPU 1513pro F-2 PN.
2. What amount of work memory is specified for program and data?
The CPU specifies work memory of 450 KB for program and 1.5 MB for data.
3. What PROFINET interfaces are available on this CPU?
It provides a 1st interface: PROFINET IRT with 3-port switch, and a 2nd interface: PROFINET RT.
4. What is the specified bit performance of the CPU?
The CPU bit performance is specified as 40 ns.
5. What degree of protection is specified?
The degree of protection is specified as IP65/67.
6. Is a SIMATIC Memory Card or a connection module required?
SIMATIC Memory Card required connection module required is stated for this item.
