Product information

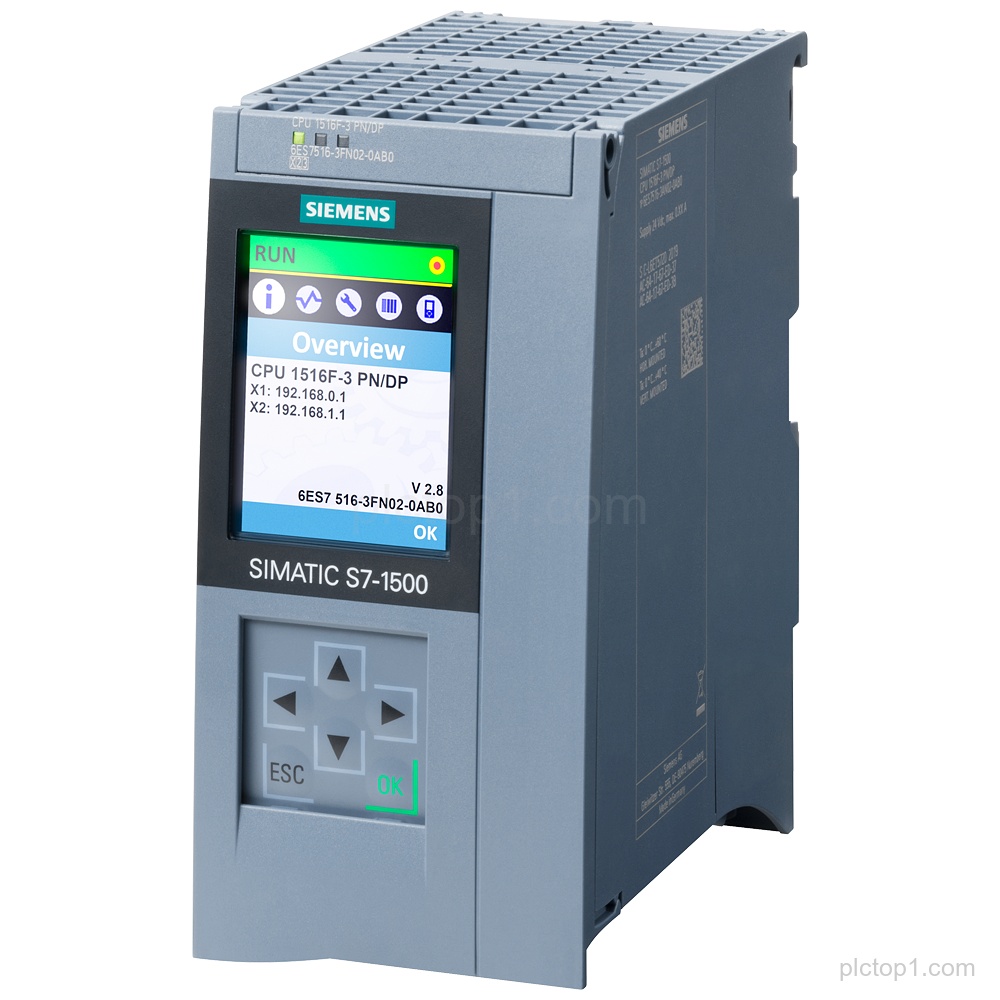

SIMATIC S7-1500F CPU 1516F-3 PN/DP, part number 6ES7516-3FN02-0AB0, provides a central processing unit with work memory and multiple interfaces including PROFINET IRT, PROFINET RT, and PROFIBUS.
Detailed Parameters
Product Type:SIMATIC S7-1500F
CPU Type:CPU 1516F-3 PN/DP
Work Memory (Program):1.5 MB
Work Memory (Data):5 MB
1st Interface:PROFINET IRT with 2-port switch
2nd Interface:PROFINET RT
3rd Interface:PROFIBUS
Bit Performance:10 ns
Memory Card Requirement:SIMATIC Memory Card required
Product Note:*** spare part ***
Engineering Context
This SIMATIC S7-1500F central processing unit CPU 1516F-3 PN/DP is intended for system configuration requiring PROFINET IRT (with 2-port switch), PROFINET RT, and PROFIBUS interfaces.
The CPU is specified with work memory 1.5 MB for program and 5 MB for data.
SIMATIC Memory Card is required for operation of this CPU.
FAQ
1. What is the product family and function of 6ES7516-3FN02-0AB0?
6ES7516-3FN02-0AB0 is a SIMATIC S7-1500F CPU 1516F-3 PN/DP central processing unit.
2. How much work memory is provided for program and data?
The CPU provides work memory 1.5 MB for program and 5 MB for data.
3. Which interfaces are available on CPU 1516F-3 PN/DP?
The CPU has PROFINET IRT with 2-port switch as the 1st interface, PROFINET RT as the 2nd interface, and PROFIBUS as the 3rd interface.
4. What is the specified bit performance?
The specified bit performance is 10 ns.
5. Is a SIMATIC Memory Card required?
Yes. SIMATIC Memory Card required is specified.
6. Is this part a spare part?
*** spare part *** is provided in the product information.
