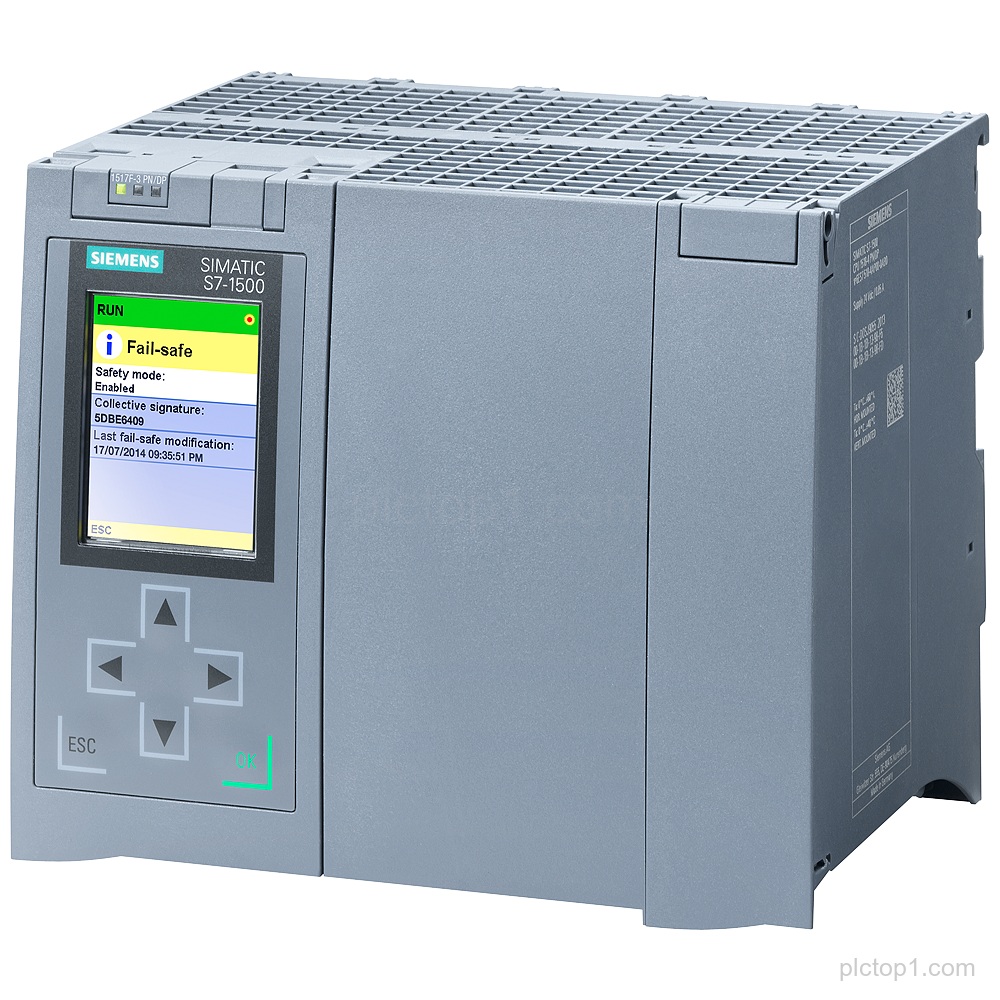

SIMATIC S7-1500F CPU 1517F-3 PN/DP with part number 6ES7517-3FP00-0AB0 is a central processing unit with specified work memory and multiple communication interfaces, with SIMATIC Memory Card required.
Detailed Parameters
Product family:SIMATIC S7-1500F
CPU:CPU 1517F-3 PN/DP
Work memory (program):3 MB
Work memory (data):8 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:PROFIBUS
Bit performance:2 ns
Requirement:SIMATIC Memory Card required
Engineering Context
The CPU 1517F-3 PN/DP in the SIMATIC S7-1500F family provides central processing unit functionality with defined work memory for program and data.
The interfaces include PROFINET IRT with 2-port switch, PROFINET RT, and PROFIBUS for system configuration depending on the overall setup.
A SIMATIC Memory Card is required for this CPU according to the provided information.
FAQ
1. What is the product family and CPU designation for part number 6ES7517-3FP00-0AB0?
The product family is SIMATIC S7-1500F and the CPU designation is CPU 1517F-3 PN/DP.
2. What work memory is specified for program and data?
The work memory for program is 3 MB and for data is 8 MB.
3. Which interfaces are available on this CPU?
The CPU has 1st interface PROFINET IRT with 2-port switch, 2nd interface PROFINET RT, and 3rd interface PROFIBUS.
4. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required.
5. What bit performance is specified?
The specified bit performance is 2 ns.
