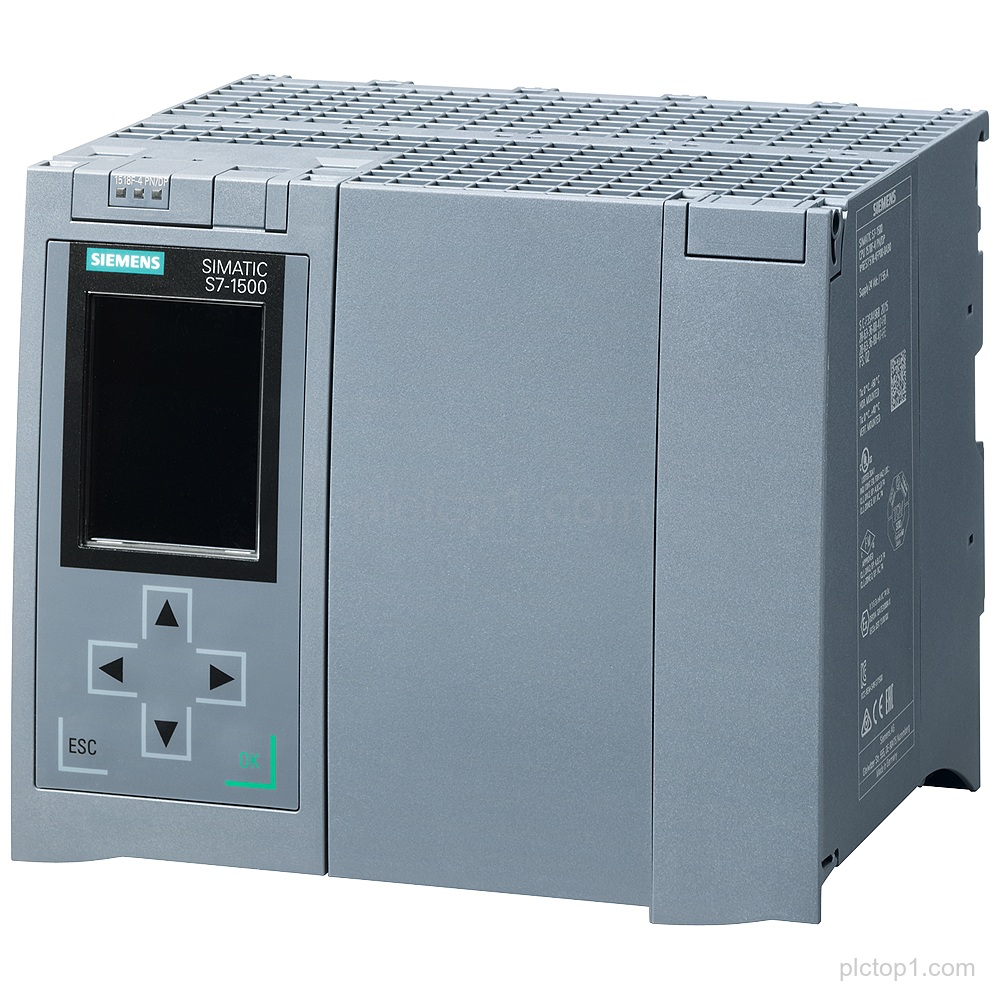

SIMATIC S7-1500F CPU 1518F-4 PN/DP (part number 6ES7518-4FP00-0AB0) provides central processing with defined work memory and multiple PROFINET/PROFIBUS interfaces, and it requires SIMATIC Memory Card.
Detailed Parameters
Product family:SIMATIC S7-1500F
CPU type:CPU 1518F-4 PN/DP
Work memory for program:9 MB
Work memory for data:60 MB
1st interface:PROFINET IRT with 2-port switch
2nd interface:PROFINET RT
3rd interface:PROFINET basic services
4th interface:PROFIBUS
Bit performance:1 ns
Required:SIMATIC Memory Card
Engineering Context
CPU 1518F-4 PN/DP in the SIMATIC S7-1500F provides central processing unit functions with defined work memory for program and data.
The CPU supports multiple interfaces including PROFINET IRT with 2-port switch, PROFINET RT, PROFINET basic services, and PROFIBUS.
The CPU specifies 1 ns bit performance and requires SIMATIC Memory Card.
FAQ
1. Which product family does 6ES7518-4FP00-0AB0 belong to?
It belongs to SIMATIC S7-1500F.
2. What CPU designation is provided for part 6ES7518-4FP00-0AB0?
CPU 1518F-4 PN/DP.
3. How much work memory is available for program and for data?
9 MB for program and 60 MB for data.
4. Which interfaces are available on CPU 1518F-4 PN/DP?
PROFINET IRT with 2-port switch, PROFINET RT, PROFINET basic services, and PROFIBUS.
5. What does the product specify for bit performance?
1 ns bit performance.
6. Is a memory card required?
Yes. SIMATIC Memory Card required.
