Product information

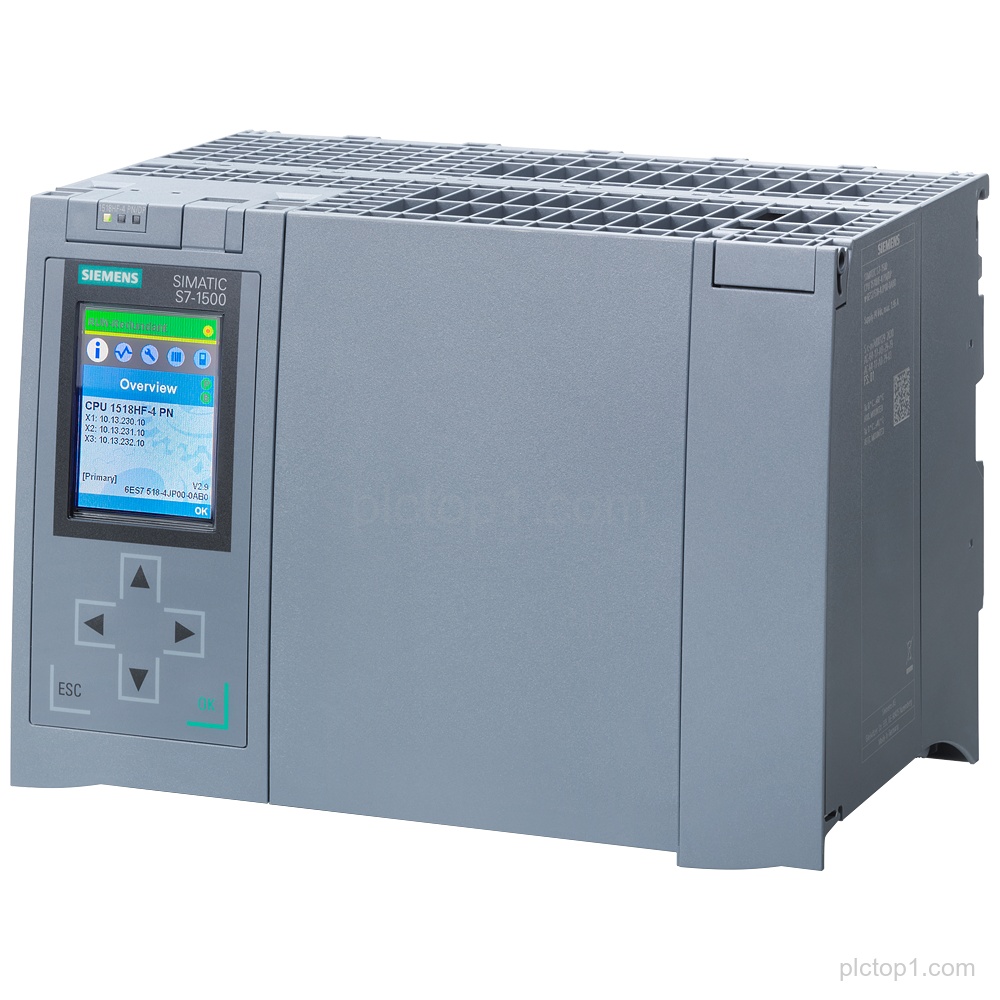

SIMATIC S7-1500H CPU 1518HF-4 PN (part number 6ES7518-4JP00-0AB0) is a central processing unit with 9 MB work memory for program and 60 MB for data, and it provides multiple PROFINET and H-SYNC interfaces. SIMATIC Memory Card required.
Detailed Parameters
Product family:SIMATIC S7-1500H
CPU type:CPU 1518HF-4 PN
Work memory for program:9 MB
Work memory for data:60 MB
1st interface:PROFINET RT with 2-port switch
2nd interface:PROFINET
3rd interface:PROFINET
4th/5th interface:H-SYNC
SIMATIC Memory Card:required
Engineering Context
The CPU 1518HF-4 PN provides 9 MB work memory for program and 60 MB for data for system processing.
The interface set includes PROFINET RT with a 2-port switch plus additional PROFINET interfaces, alongside H-SYNC on the 4th/5th interfaces.
Operation requires a SIMATIC Memory Card.
FAQ
1. What is the product family and CPU designation for part number 6ES7518-4JP00-0AB0?
SIMATIC S7-1500H CPU 1518HF-4 PN.
2. How much work memory is provided for program and data?
9 MB work memory for program and 60 MB for data.
3. What interfaces does CPU 1518HF-4 PN provide?
1st interface: PROFINET RT with 2-port switch; 2nd interface: PROFINET; 3rd interface: PROFINET; 4th/5th interface: H-SYNC.
4. Is a SIMATIC Memory Card required?
Yes, SIMATIC Memory Card required.
