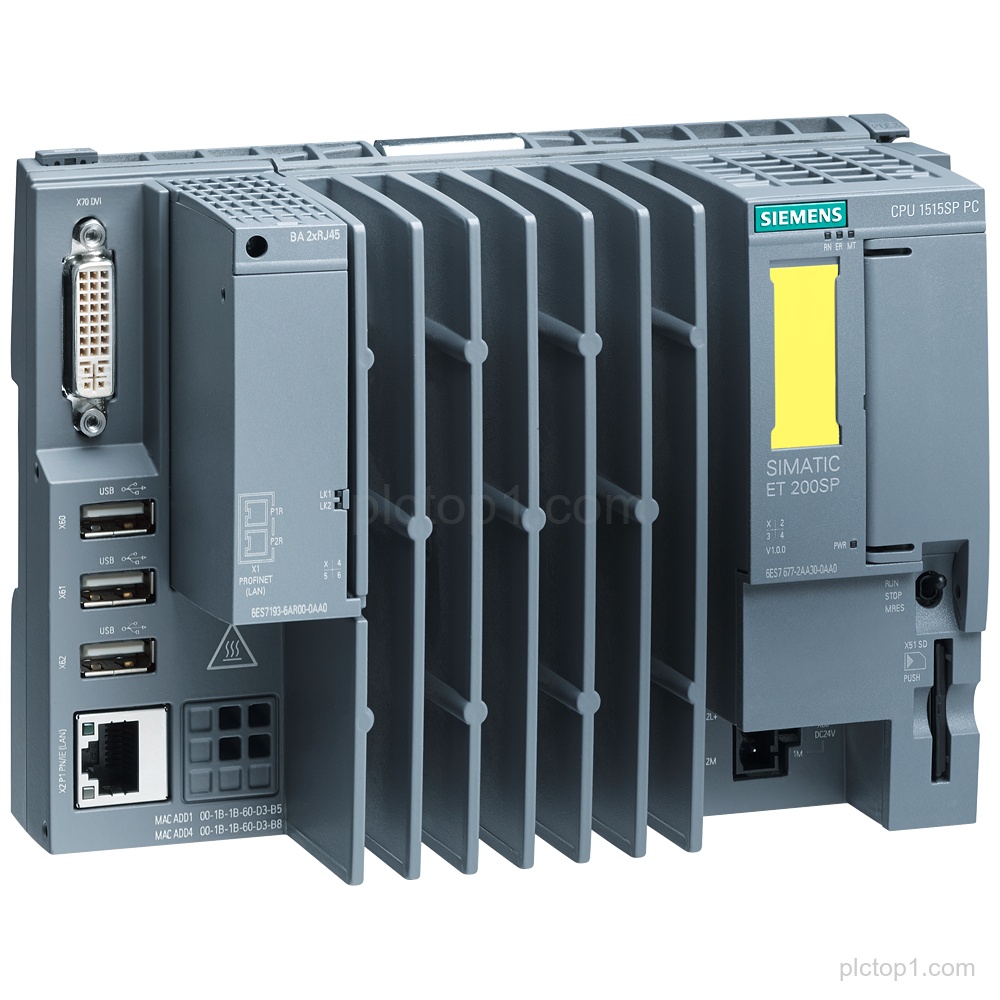

SIMATIC ET 200SP Open Controllers CPU 1515SP PC F (Part number: 6ES7677-2FA41-0FB0) with pre-installed WES 7 P 64 bit and S7-1500 Fail-safe SWC, and defined hardware interfaces for ET 200SP.
Detailed Parameters
Product family:SIMATIC ET 200SP Open Controllers
CPU designation:CPU 1515SP PC F
Memory (RAM):4 GB
Storage:30 GB CFAST
Pre-installed software:WES 7 P 64 bit
Fail-safe SWC:S7-1500 Fail-safe SWC CPU 1505SP F pre-installed
CFAST slot:1x slot CFAST
SD/MMC slot:1x slot SD/MMC
ET 200SP bus adapter interface:1x connection for ET 200SP bus adapter PROFINET
Ethernet interface:1x 10/100/1000 Mbit/s Ethernet
USB interfaces:3x USB
Graphics interface:1x DVI-I graphics card connection
Documentation media:Documentation on DVD
Restore media:Restore DVD
Engineering Context
The SIMATIC ET 200SP Open Controllers CPU 1515SP PC F provides the specified memory and CFAST storage for configured control systems.
The CPU includes pre-installed WES 7 P 64 bit and S7-1500 Fail-safe SWC CPU 1505SP F.
The system interfaces include CFAST and SD/MMC slots, an ET 200SP bus adapter PROFINET connection, and 10/100/1000 Mbit/s Ethernet.
FAQ
1. Which CPU designation is provided with Part number 6ES7677-2FA41-0FB0?
It is configured as CPU 1515SP PC F.
2. What pre-installed software is included?
WES 7 P 64 bit and S7-1500 Fail-safe SWC CPU 1505SP F are pre-installed.
3. What memory and CFAST storage are specified?
4 GB RAM and 30 GB CFAST are specified.
4. Which interface options are listed for this CPU?
It lists 1x slot CFAST, 1x slot SD/MMC, 1x connection for ET 200SP bus adapter PROFINET, 1x 10/100/1000 Mbit/s Ethernet, 3x USB, and 1x DVI-I graphics card connection.
5. Is documentation included, and in what format?
Yes. Documentation on DVD is provided, and a Restore DVD is also listed.
