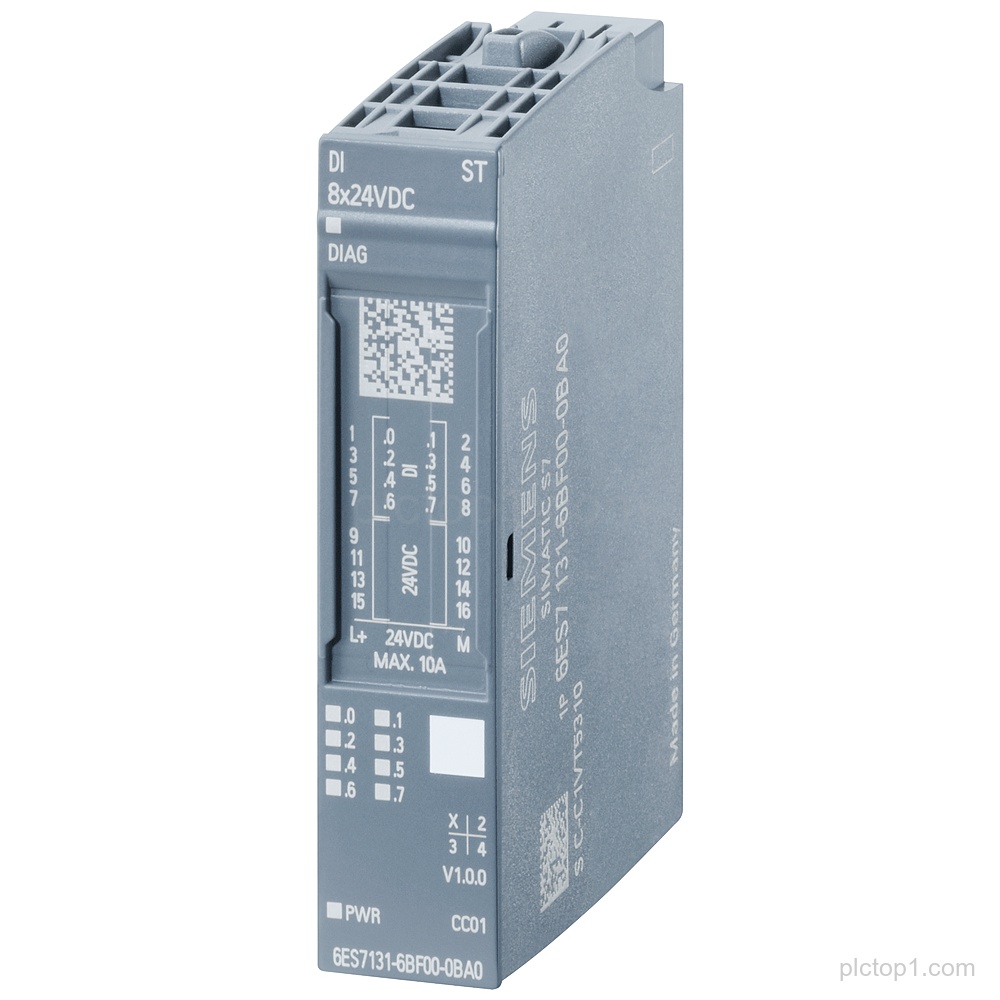

SIMATIC ET 200SP digital input module with part number 6ES7131-6BF00-0CA0, designed for DI 8x 24 V DC High Feature applications with input type 3 (IEC 61131) and sink input behavior (PNP, sink input).
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:digital input module
Designation:DI 8x 24 V DC High Feature
Input type:3 (IEC 61131)
Input configuration:sink input (PNP, sink input)
Packing unit:1 unit
Suitable for:BU type A0
Color code:CC01
Input delay:0.05..20 ms
Channel diagnostics for:Encoder power supply short circuit; wire break; supply voltage; channel fault LED
Engineering Context
The module provides 8 digital inputs for 24 V DC signals in the SIMATIC ET 200SP platform configuration.
Input behavior is specified as sink input (PNP, sink input) and uses input type 3 (IEC 61131).
Channel diagnostics cover encoder power supply short circuit, wire break, supply voltage, and channel fault LED.
FAQ
1. What is the module type and designation for part number 6ES7131-6BF00-0CA0?
It is a SIMATIC ET 200SP digital input module with designation DI 8x 24 V DC High Feature.
2. What input type and input configuration does the DI 8x 24 V DC High Feature module use?
It uses input type 3 (IEC 61131) and is a sink input (PNP, sink input).
3. What is the input delay range for this module?
The input delay is 0.05..20 ms.
4. Which channel diagnostics are supported?
Channel diagnostics are provided for encoder power supply short circuit, wire break, supply voltage, and channel fault LED.
5. Is the module suitable for BU type A0?
Yes, it is suitable for BU type A0.
