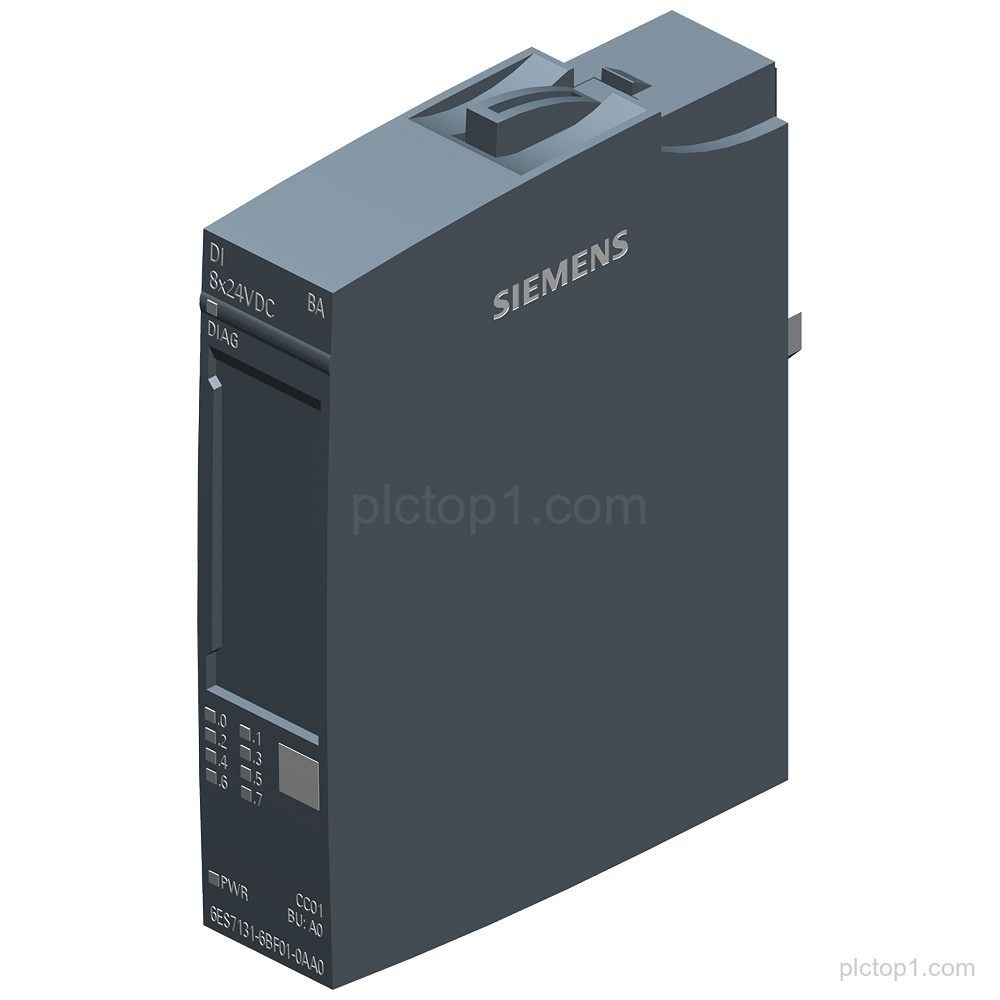

SIMATIC ET 200SP digital input module 6ES7131-6BF01-0AA0 provides 8x 24V DC basic digital inputs with module diagnostics for supply voltage.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Digital input module
Designation:DI 8x 24V DC Basic
Type:type 2 (IEC 61131)
Input configuration:sink input (PNP, P-reading)
Packing unit:1 piece
Compatibility:fits to BU-type A0
Colour Code:CC01
Input delay time:0,05..20ms
Module diagnostics:supply voltage
Engineering Context
The SIMATIC ET 200SP DI 8x 24V DC Basic module provides 8 digital inputs configured as a sink input with P-reading (PNP).
The module supports input delay time in the range 0,05..20ms depending on parameterization.
Module diagnostics are available for supply voltage.
FAQ
1. What product family and module type does 6ES7131-6BF01-0AA0 belong to?
6ES7131-6BF01-0AA0 belongs to SIMATIC ET 200SP and is a digital input module.
2. How many input channels are available on the DI 8x 24V DC Basic module?
The module provides DI 8x 24V DC Basic, i.e., 8 input channels.
3. What input configuration is specified for 6ES7131-6BF01-0AA0?
It is specified as a sink input (PNP, P-reading).
4. What diagnostics does the module support?
Module diagnostics for: supply voltage.
5. What is the input delay time range?
The input delay time is 0,05..20ms.
6. What base unit type is the module stated to fit to?
It fits to BU-type A0.
