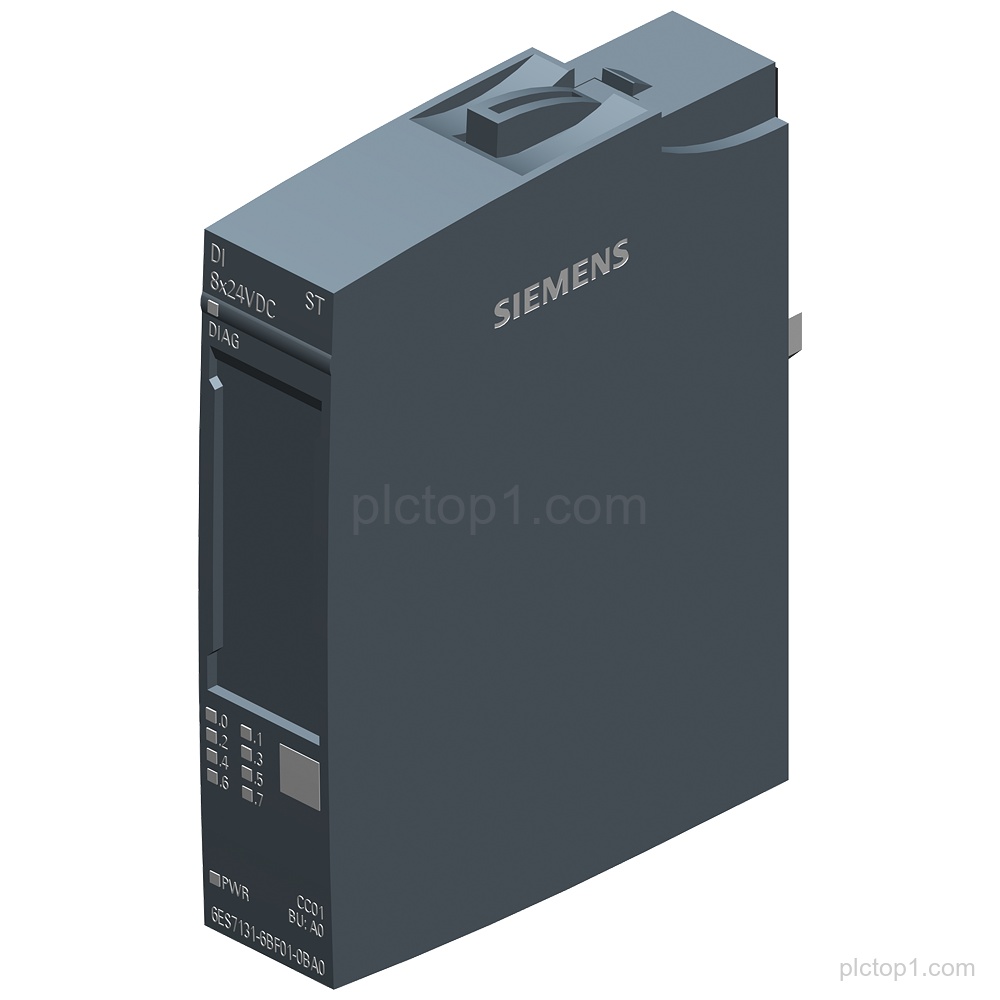

SIMATIC ET 200SP digital input module 6ES7131-6BF01-0BA0 for DI 8x 24V DC Standard, sink input (PNP, P-reading), with input delay time 0,05..20ms and module diagnostics for sensor supply short-circuit, wire break, and supply voltage.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Digital input module
Input type / function:DI 8x 24V DC Standard
Type:type 3 (IEC 61131)
Input configuration:sink input (PNP, P-reading)
Channel count:8
Fits to:BU-type A0
Colour code:CC01
Input delay time:0,05..20ms
Module diagnostics:short-circuit of sensor supply, wire break, supply voltage
Packing unit:1 piece
Engineering Context
The SIMATIC ET 200SP digital input module provides DI 8x 24V DC Standard input functionality using a sink input configuration (PNP, P-reading).
For signal conditioning, the module supports an input delay time of 0,05..20ms.
Module diagnostics include short-circuit of sensor supply, wire break, and supply voltage.
FAQ
1. What module family and function does 6ES7131-6BF01-0BA0 provide?
6ES7131-6BF01-0BA0 is a SIMATIC ET 200SP digital input module for DI 8x 24V DC Standard.
2. How many input channels does the module have?
The module is specified as DI 8x 24V DC Standard, i.e., 8 input channels.
3. What input configuration is supported?
It is specified as a sink input (PNP, P-reading).
4. What type and standard are stated for the module?
The module is stated as type 3 (IEC 61131).
5. What input delay time range is specified?
The input delay time is specified as 0,05..20ms.
6. Which diagnostics does the module support?
The module diagnostics listed are short-circuit of sensor supply, wire break, and supply voltage.
7. Which base unit type is it specified to fit to?
It is specified to fit to BU-type A0.
