Product information

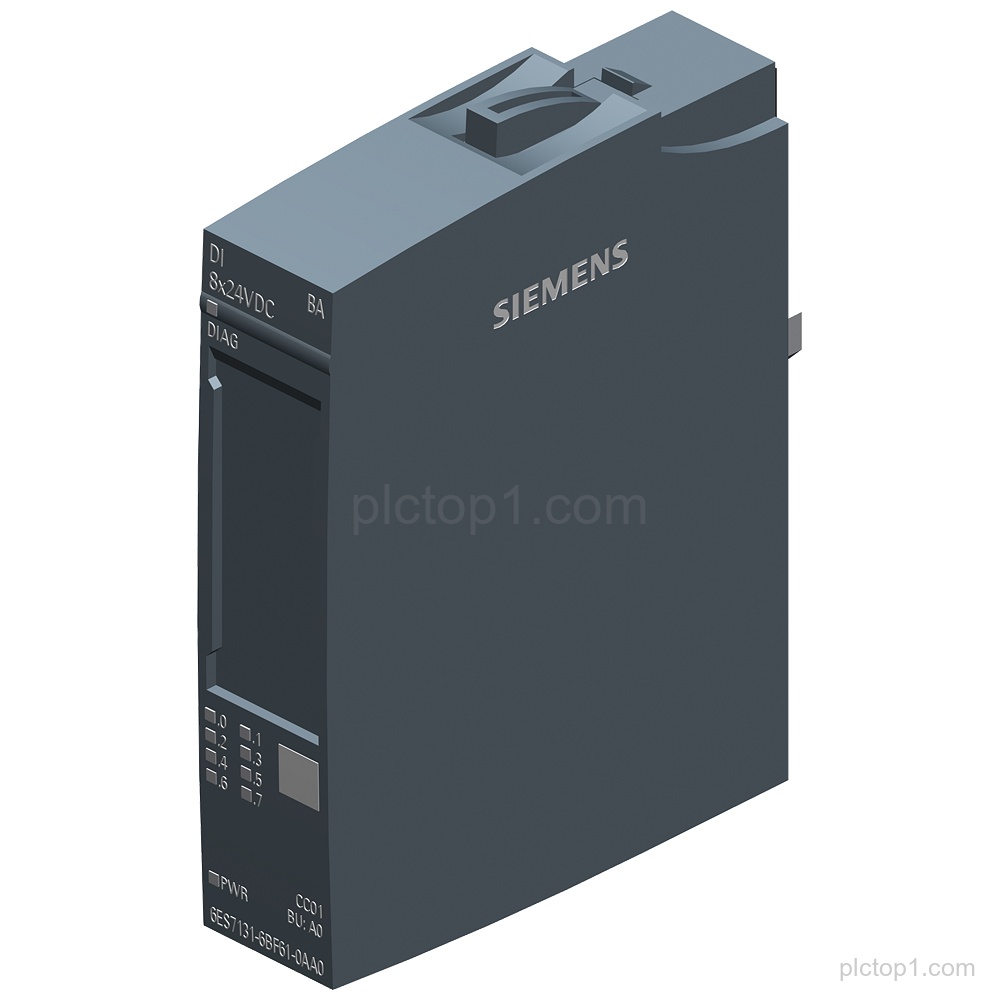

SIMATIC ET 200SP digital input module 6ES7131-6BF61-0AA0 for 8x 24V DC SRC BA (type 1, IEC 61131) with source input (NPN, M-reading), including module diagnostics for supply voltage.
Detailed Parameters
Module type:Digital input module
Product family:SIMATIC ET 200SP
Input signals:Source Input (NPN, M-reading)
Inputs:DI 8x 24V DC
Designator:SRC BA
Type:type 1 (IEC 61131)
Input delay time:0,05..20ms
Module diagnostics:supply voltage
Fitting base:fits to BU-type A0
Colour Code:CC02
Packing unit:1 piece
Engineering Context
The module provides DI 8x 24V DC SRC BA inputs for source input signals (NPN, M-reading).
Input delay time is specified as 0,05..20ms for the signal path.
Module diagnostics are specified for supply voltage.
FAQ
1. What is the product family and module function of 6ES7131-6BF61-0AA0?
6ES7131-6BF61-0AA0 is a SIMATIC ET 200SP digital input module.
2. How many inputs and what input voltage range are provided?
The module is specified as DI 8x 24V DC.
3. What input type does the module support?
It supports Source Input (NPN, M-reading).
4. What is the specified input delay time?
The input delay time is specified as 0,05..20ms.
5. Which diagnostics does the module support?
Module diagnostics are specified for supply voltage.
6. Which base unit type does it fit to?
It fits to BU-type A0.
