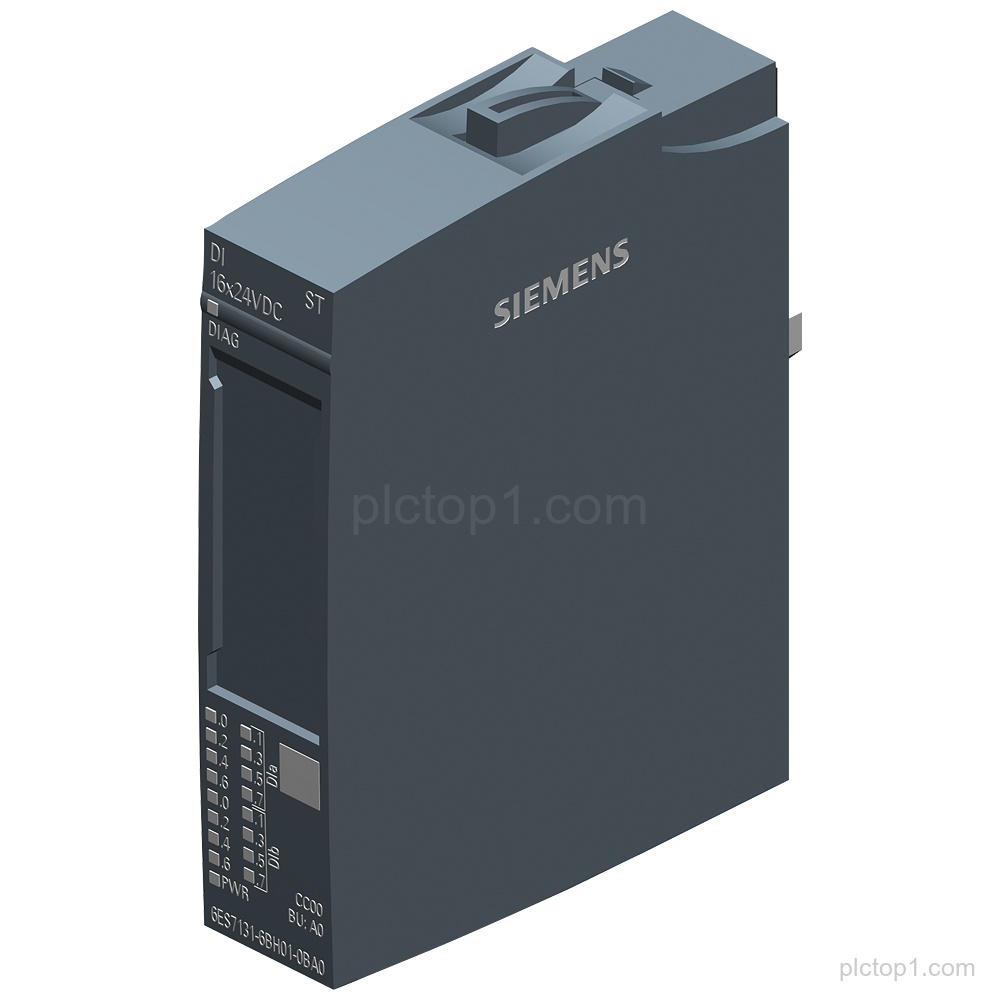

SIMATIC ET 200SP digital input module with part number 6ES7131-6BH01-0BA0 for DI 16x 24V DC Standard, type 3 (IEC 61131), sink input (PNP, P-reading), including diagnostics for wire break and diagnostics supply voltage.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Digital input module
Input type:DI 16x 24V DC Standard
Type:type 3 (IEC 61131)
Input configuration:sink input
Signal coding:(PNP, P-reading)
Packing unit:1 Piece
Mechanical fit:fits to BU-type A0
Colour code:CC00
Input delay time:0,05..20ms
Diagnostics:wire break
Diagnostics supply voltage:supported
Engineering Context
The module is part of SIMATIC ET 200SP and provides a DI 16x 24V DC Standard digital input function.
The input module operates as a sink input with (PNP, P-reading) signal reading.
It supports diagnostics including wire break and diagnostics supply voltage and has an input delay time of 0,05..20ms.
FAQ
1. What module family and function does 6ES7131-6BH01-0BA0 provide?
6ES7131-6BH01-0BA0 is a SIMATIC ET 200SP digital input module for DI 16x 24V DC Standard.
2. Which input type and signal reading are specified?
It is specified as a sink input with (PNP, P-reading) and type 3 (IEC 61131).
3. What input delay time range is specified for the module?
The input delay time is specified as 0,05..20ms.
4. Which diagnostics functions are explicitly listed?
The module lists diagnostics for wire break and diagnostics supply voltage.
5. What is the specified packaging quantity and mechanical fit?
The packing unit is 1 Piece and it fits to BU-type A0.
