Product information

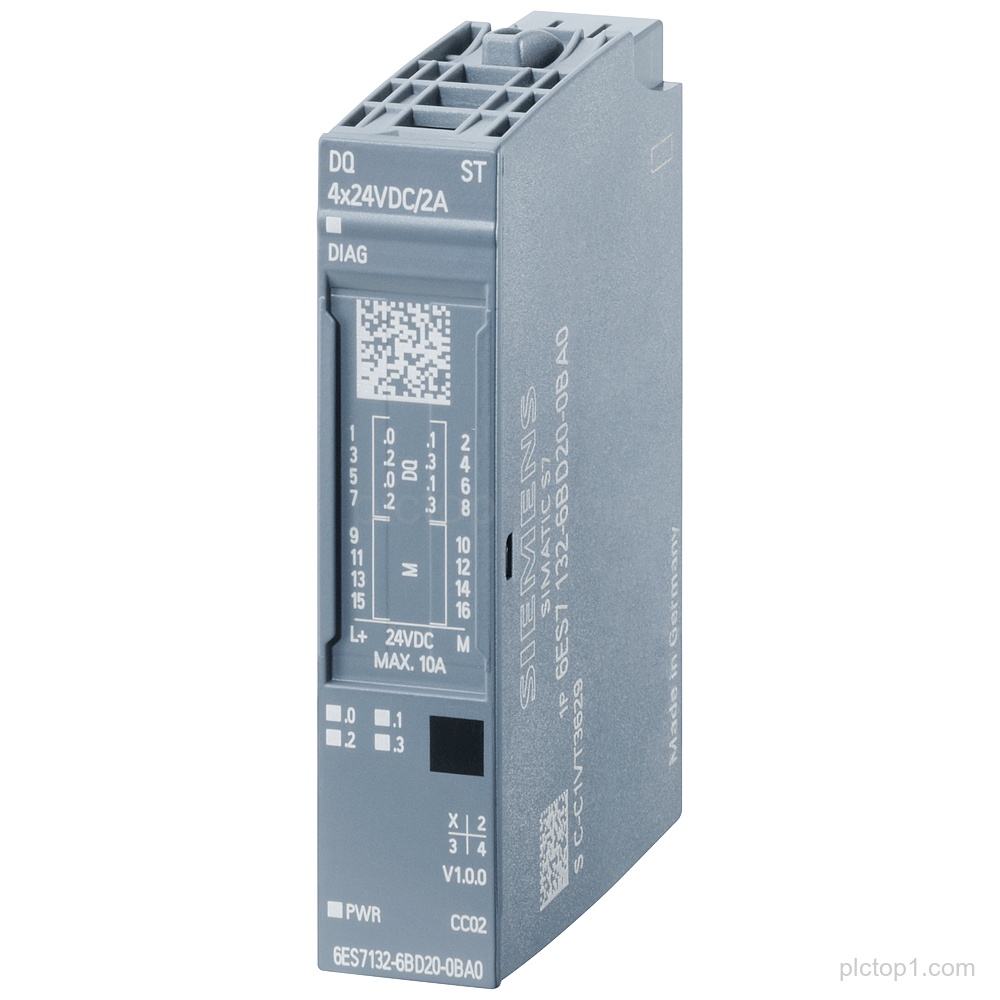

SIMATIC ET 200SP digital output module for part number 6ES7132-6BD20-0BA0; it provides DQ 4x 24VDC/2A Standard outputs and module diagnostics, suitable for BU type A0 with Color code CC02.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:digital output module
Designation:DQ
Output channels:4
Output voltage:24VDC
Output current:2A
Version:Standard
Suitable for:BU type A0
Color code:CC02
Diagnostics:Module diagnostics
Engineering Context
The module is a SIMATIC ET 200SP digital output module with DQ designation.
It is suitable for BU type A0 and uses Color code CC02.
Module diagnostics are provided.
FAQ
1. What module family and type does 6ES7132-6BD20-0BA0 belong to?
It belongs to SIMATIC ET 200SP and is a digital output module.
2. How many output channels and what output voltage/current are specified?
DQ 4x 24VDC/2A Standard.
3. Which BU type is this module suitable for?
It is suitable for BU type A0.
4. What color code is specified for this module?
Color code CC02.
5. What diagnostics are provided?
Module diagnostics.
