Product information

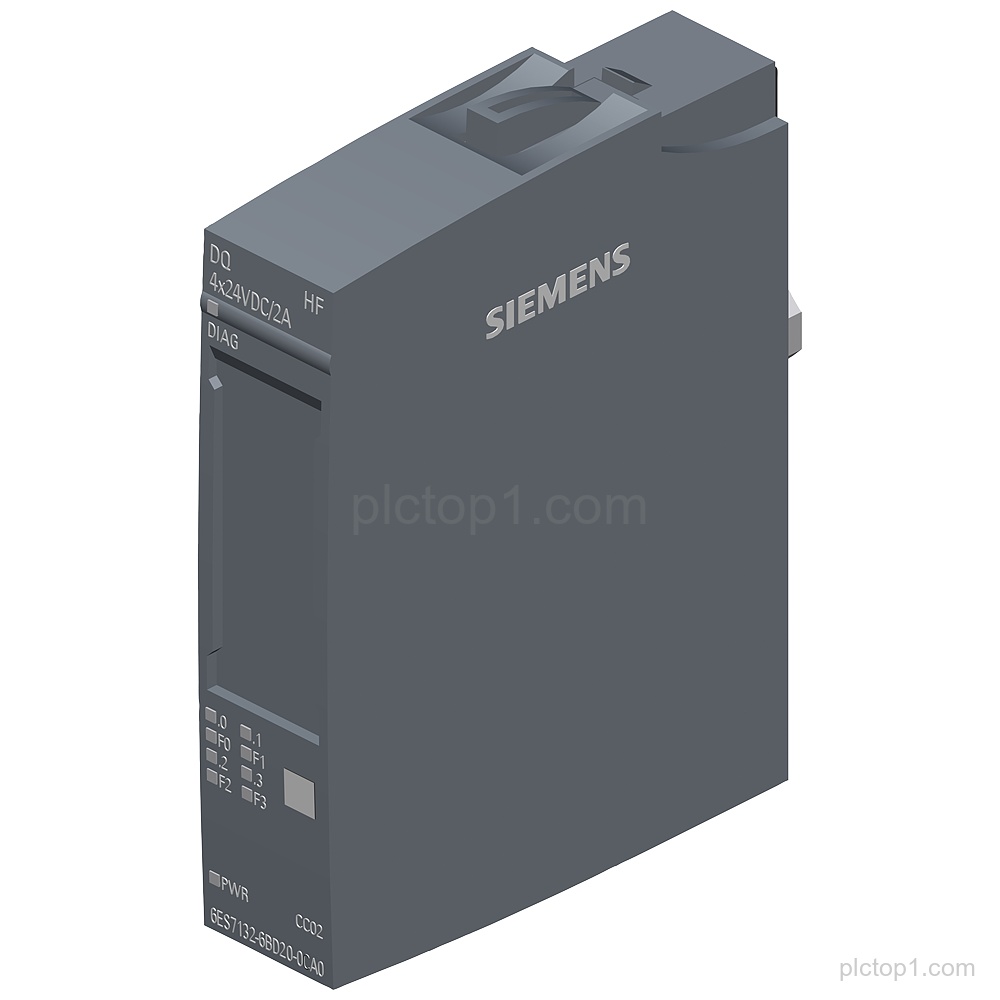

SIMATIC ET 200SP digital output module 6ES7132-6BD20-0CA0, designed for BU type A0, Color code CC02, with channel diagnostics.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:digital output module
Function designation:DQ 4x 24VDC/2A High Feature
Output channels:4
Output voltage:24VDC
Output current:2A
Suitability:BU type A0
Color code:CC02
Diagnostics:channel diagnostics
Engineering Context
The module provides digital output functionality in the SIMATIC ET 200SP system.
The DQ 4x 24VDC/2A High Feature designation specifies 4 output channels with 24VDC and 2A per channel.
Channel diagnostics are included to support diagnostic handling at the channel level.
FAQ
1. What product family and module type does 6ES7132-6BD20-0CA0 belong to?
It belongs to the SIMATIC ET 200SP product family and is a digital output module.
2. What does the designation DQ 4x 24VDC/2A High Feature specify for this module?
It specifies 4 output channels with 24VDC and 2A output.
3. For which BU type is the module suitable?
It is suitable for BU type A0.
4. What color code is specified for 6ES7132-6BD20-0CA0?
The color code is CC02.
5. What diagnostics capability is provided by this module?
It supports channel diagnostics.
