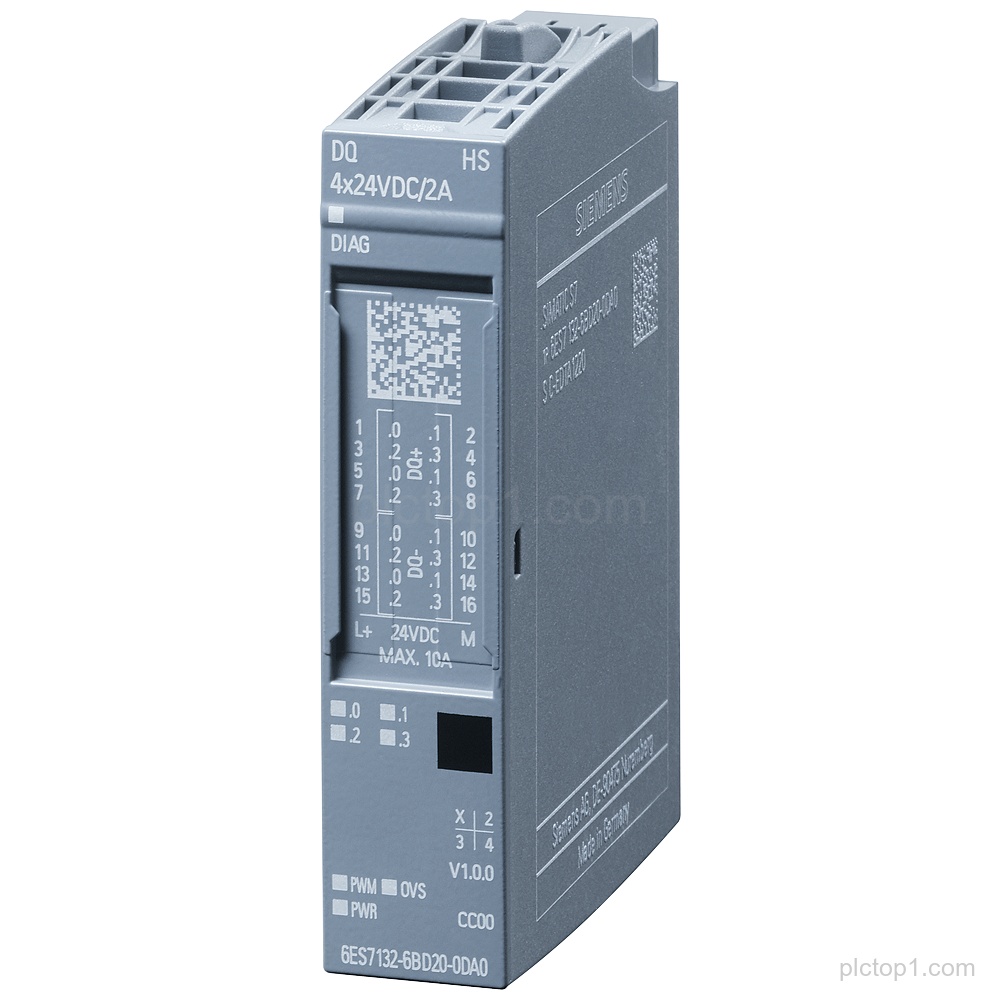

SIMATIC ET 200SP digital output module with part number 6ES7132-6BD20-0DA0 for high-speed DQ 4x 24 V DC/2A applications, featuring Pack quantity: 1 unit and module diagnostics.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:digital output module
Designation:DQ 4x 24 V DC/2A High Speed
Output configuration:DQ 4x
Output voltage:24 V DC
Output current per channel:2A
High Speed:Yes
Pack quantity:1 unit
Suitable for:BU type A0
Color code:CC00
Alternative operating modes:DQ, Oversampling, PWM
Module diagnostics:Module diagnostics
Engineering Context
Designed as a SIMATIC ET 200SP digital output module with DQ 4x 24 V DC/2A High Speed characteristics.
Supports alternative operating modes including DQ, Oversampling, and PWM, depending on system configuration.
Provides module diagnostics for the output module.
FAQ
1. What is the module designation for 6ES7132-6BD20-0DA0?
The designation is DQ 4x 24 V DC/2A High Speed.
2. How many output channels does this digital output module provide?
It provides DQ 4x outputs.
3. What output voltage and current are specified for this module?
The specified output voltage is 24 V DC and the specified current is 2A.
4. Which operating modes are available?
The alternative operating modes are DQ, Oversampling, and PWM.
5. Does this module include diagnostics?
Yes, it includes module diagnostics.
6. For which BU type is the module suitable?
It is suitable for BU type A0.
7. What is the pack quantity?
The pack quantity is 1 unit.
8. What color code is specified?
The color code is CC00.
