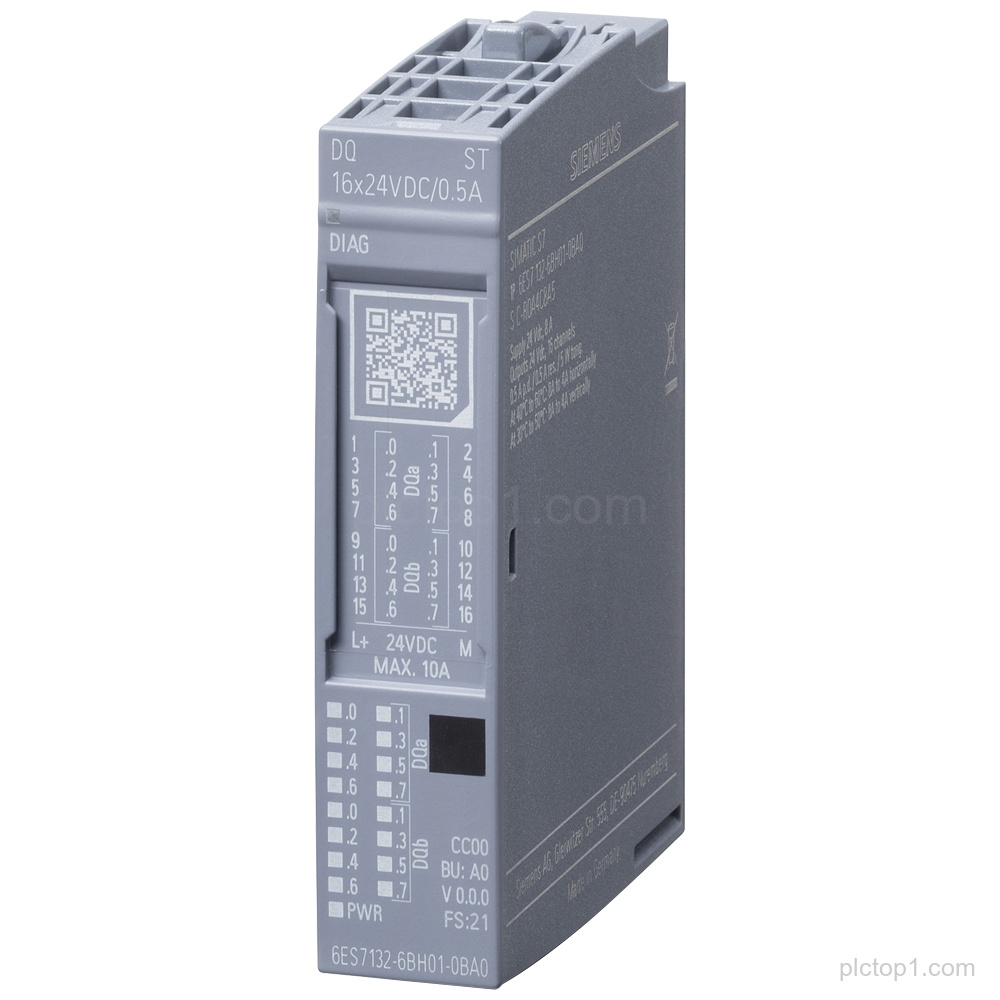

SIMATIC ET 200SP digital output module (6ES7132-6BH01-0BA0) provides source output (PNP, P-switching) with substitute value output and module diagnostics for specified fault conditions.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Digital output module
Output channels:DQ 16x
Output voltage:24V DC
Output current:0,5A
Standard:Standard
Output type:Source output (PNP,P-switching)
Packing unit:1 piece
Fits to:BU-type A0
Colour Code:CC00
Substitute value output:Yes
Module diagnostics:Short-circuit to L+ and ground; wire break; supply voltage
Engineering Context
The module is a SIMATIC ET 200SP digital output module providing DQ 16x 24V DC/0,5A standard outputs.
The outputs are configured as source output (PNP,P-switching) and include substitute value output.
Module diagnostics cover short-circuit to L+ and ground, wire break, and supply voltage.
FAQ
1. What module family and type does 6ES7132-6BH01-0BA0 belong to?
6ES7132-6BH01-0BA0 belongs to SIMATIC ET 200SP and is a digital output module.
2. How many digital output channels does the module provide and what output rating is stated?
It provides DQ 16x outputs with 24V DC and 0,5A standard.
3. What output switching type is used by this module?
The module provides source output (PNP,P-switching).
4. Does the module support substitute value output?
Yes, substitute value output is stated.
5. Which module diagnostics are specified for 6ES7132-6BH01-0BA0?
Short-circuit to L+ and ground, wire break, and supply voltage.
6. To which base unit type does the module fit?
It fits to BU-type A0.
