Product information

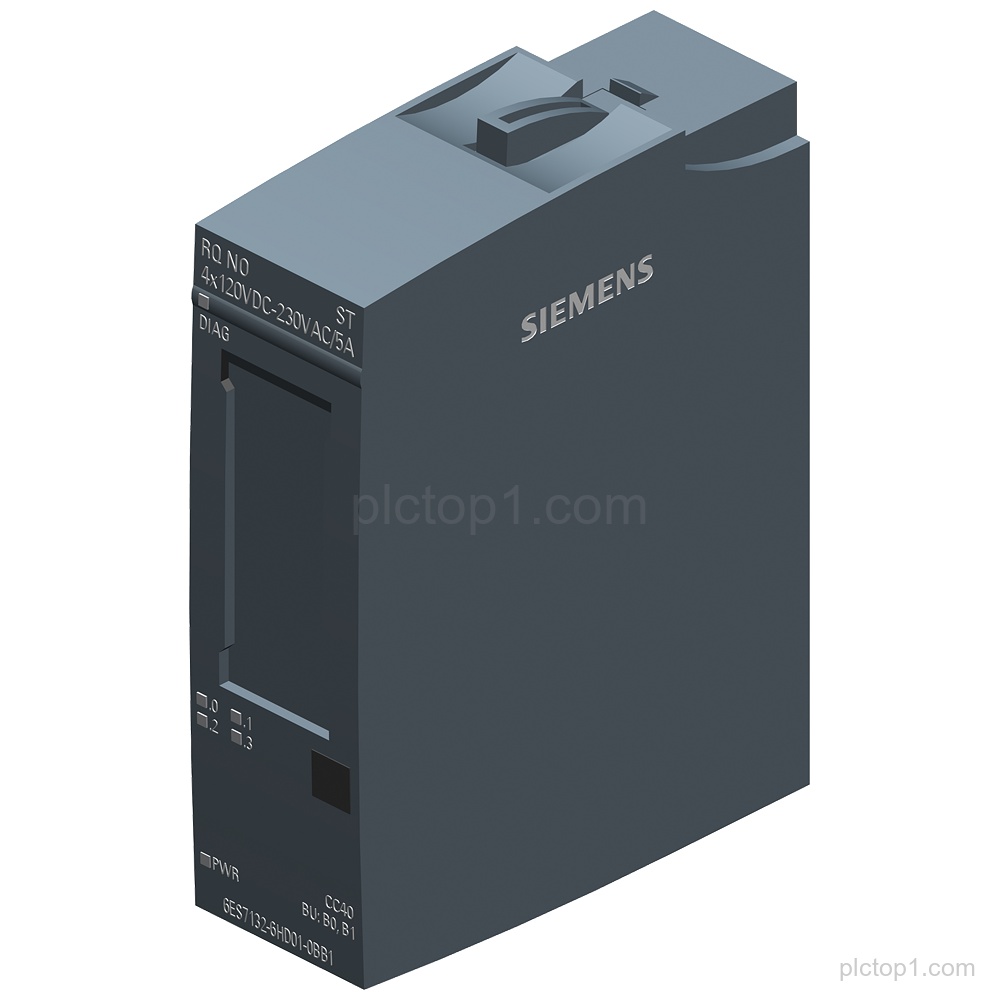

SIMATIC ET 200SP relay module 6ES7132-6HD01-0BB1 provides isolated contacts with substitute value output and module diagnostics for supply voltage.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Relay module
Contact type:4 normally open contacts
Isolated contacts:Isolated contacts
Rated voltage range:RQ NO 4x 120V DC..230VAC/5A ST.
Substitute value output:Substitute value output
Module diagnostics:supply voltage
Packing unit:1 piece
Fits to:BU-type B0 and B1
Colour Code:CC40
Engineering Context
The SIMATIC ET 200SP relay module provides 4 normally open relay contacts with isolated contacts.
The module supports substitute value output.
Module diagnostics are provided for supply voltage.
FAQ
1. What is the product family and module type for part 6ES7132-6HD01-0BB1?
6ES7132-6HD01-0BB1 is a SIMATIC ET 200SP relay module.
2. How many contacts does the relay module provide and what contact type is used?
It provides 4 normally open contacts.
3. Does the module use isolated contacts?
Yes, it has isolated contacts.
4. Which diagnostics does the module support?
Module diagnostics for supply voltage.
5. What substitute function is available?
Substitute value output.
6. Which BU types is the module stated to fit to?
It fits to BU-type B0 and B1.
