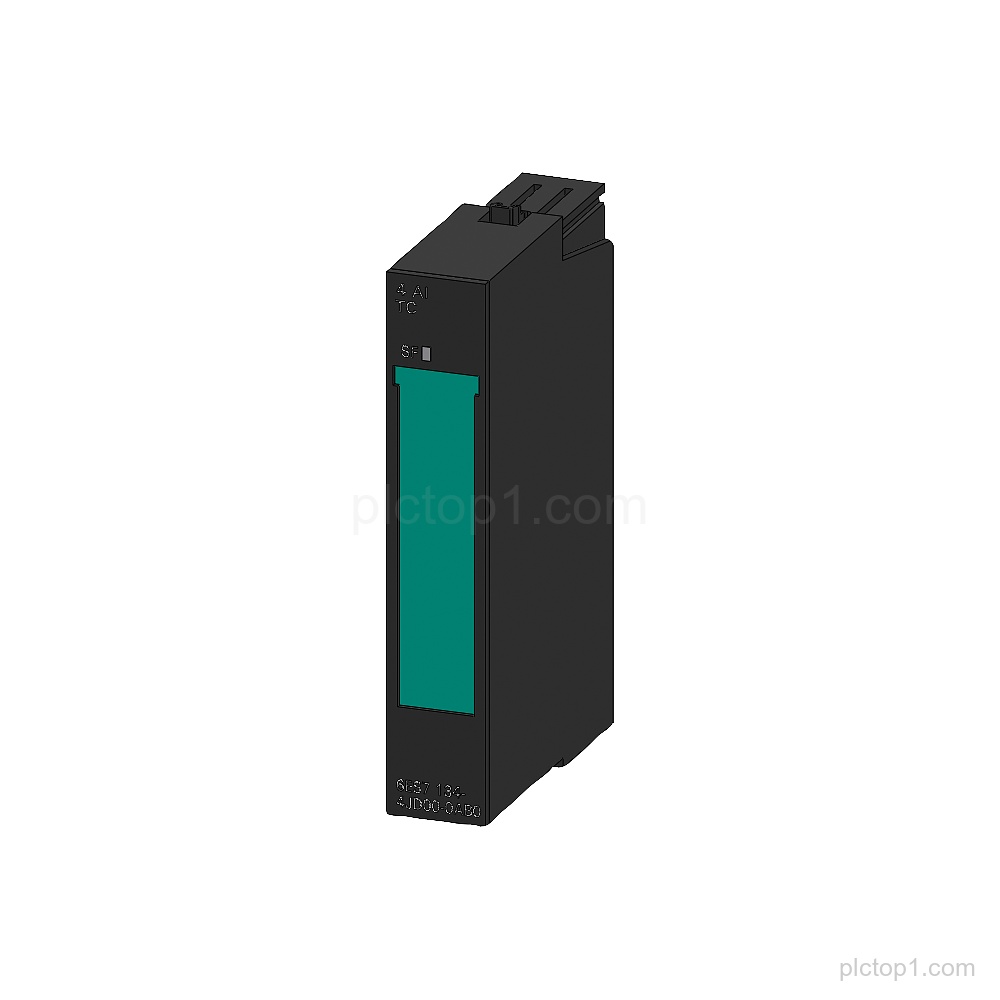

SIMATIC DP electronics module for ET 200S (spare part): Part number 6ES7134-4JD00-0AB0 for 4 AI TC channels with +/-80 mV, 15 bit+sign, and SF LED (group fault).
Detailed Parameters
Product type:Electronics module
Spare part:Yes
System:SIMATIC DP
For:ET 200S
Number of channels:4
Signal type:AI TC
Input range:+/-80 mV
Resolution:15 bit+sign
Status indication:SF LED (group fault)
Module width:15 mm
Engineering Context
The module is an electronics module for SIMATIC DP in an ET 200S system.
It is specified for 4 AI TC channels with an input range of +/-80 mV.
SF LED (group fault) is provided for indication of group-level status.
FAQ
1. What is the part number and product family for this electronics module?
The part number is 6ES7134-4JD00-0AB0, and the product family/system designation is SIMATIC DP.
2. Is this item provided as a spare part?
Yes, it is specified as a spare part.
3. For which ET system is the module intended?
It is intended for ET 200S.
4. How many channels does the module provide and what signal type is specified?
It provides 4 AI TC channels.
5. What input range and resolution are specified?
The input range is +/-80 mV and the resolution is 15 bit+sign.
6. What LED indication is specified?
SF LED (group fault) is specified.
7. What is the specified module width?
The module width is specified as 15 mm.
