Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

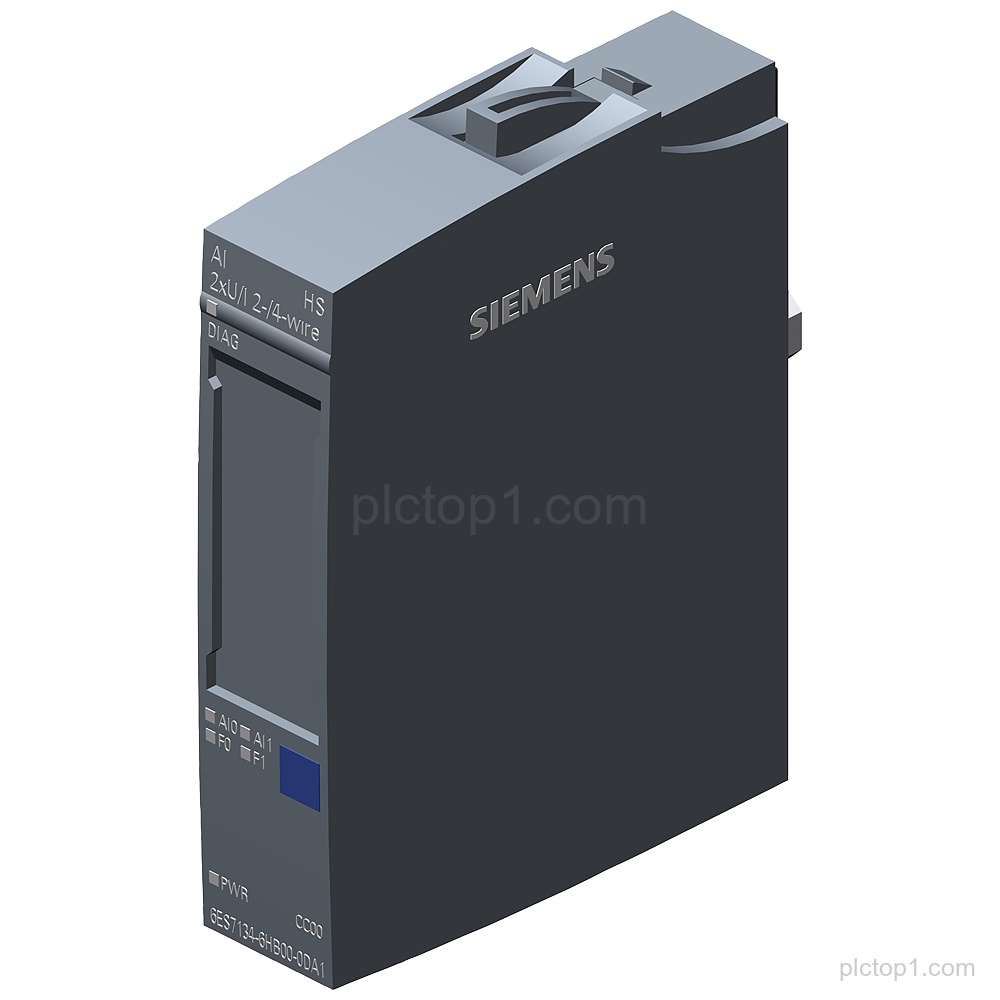

SIMATIC ET 200SP Analog input module AI 2x U/I 2-.4-wire High Speed with part number 6ES7134-6HB00-0DA1, designed for BU type A0 and A1 and suitable for Color code CC00.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Analog input module
Input type / channel designation:AI 2x U/I 2-.4-wire High Speed
Suitable for BU type:A0, A1
Color code:CC00
Channel diagnostics:Yes
Resolution:16 bit
Accuracy (tolerance):+/-0.3%
Engineering Context
The module provides analog input functionality within SIMATIC ET 200SP for AI 2x U/I 2-.4-wire High Speed signal acquisition.
It is designed to be suitable for BU type A0 and A1 and uses Color code CC00.
Channel diagnostics are provided for the module to support monitoring at the channel level.
FAQ
1. What module family and function does 6ES7134-6HB00-0DA1 belong to?
6ES7134-6HB00-0DA1 is a SIMATIC ET 200SP Analog input module.
2. What input configuration is supported?
The module supports AI 2x U/I 2-.4-wire High Speed.
3. Is channel diagnostics available?
Yes, channel diagnostics are provided.
4. What resolution and accuracy are specified for the module?
The module is specified with 16 bit resolution and +/-0.3% accuracy.
5. Which BU types is the module suitable for?
The module is suitable for BU type A0 and A1.
6. What is the specified color code?
The specified color code is CC00.
