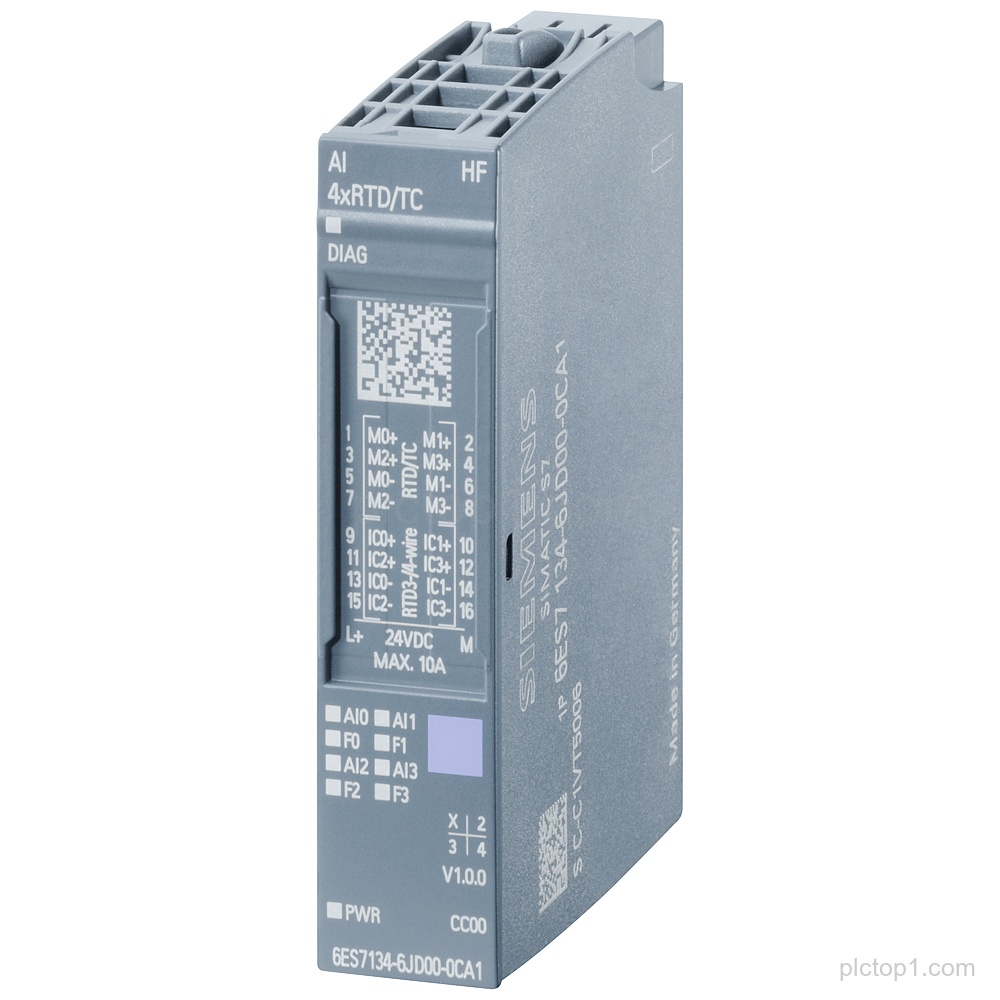

SIMATIC ET 200SP analog input module AI 4xRTD/TC High Feature, part number 6ES7134-6JD00-0CA1, is suitable for BU type A0 and A1 with Color code CC00 and supports 2-/3-/4-wire connections.
Detailed Parameters
Product family / system:SIMATIC ET 200SP
Module type:Analog input module
Module designation:AI 4xRTD/TC High Feature
Part number:6ES7134-6JD00-0CA1
BU type suitability:BU type A0, A1
Color code:CC00
Number of channels:4
Signal type:RTD/TC
Connection:2-/3-/4-wire
Channel diagnostics:Yes
Resolution:16 bit
Accuracy:+/-0.1%
Engineering Context
The AI 4xRTD/TC High Feature analog input module is intended for RTD/TC signal acquisition in SIMATIC ET 200SP.
The module supports channel diagnostics for the analog input channels.
The module is suitable for BU type A0 and A1 with Color code CC00 and supports 2-/3-/4-wire connections.
FAQ
1. What is the module type for 6ES7134-6JD00-0CA1?
6ES7134-6JD00-0CA1 is an SIMATIC ET 200SP analog input module.
2. Which sensor signal types does AI 4xRTD/TC High Feature support?
AI 4xRTD/TC High Feature supports RTD/TC.
3. How many analog input channels does the module provide?
The module provides 4 channels.
4. Does the module support channel diagnostics?
Yes, it supports channel diagnostics.
5. What resolution and accuracy are specified for the module?
It is specified with 16 bit resolution and +/-0.1% accuracy.
6. Which wiring connection types are supported?
It supports 2-/3-/4-wire connections.
7. For which BU types is this module suitable and what is the required color code?
It is suitable for BU type A0 and A1 and has Color code CC00.
