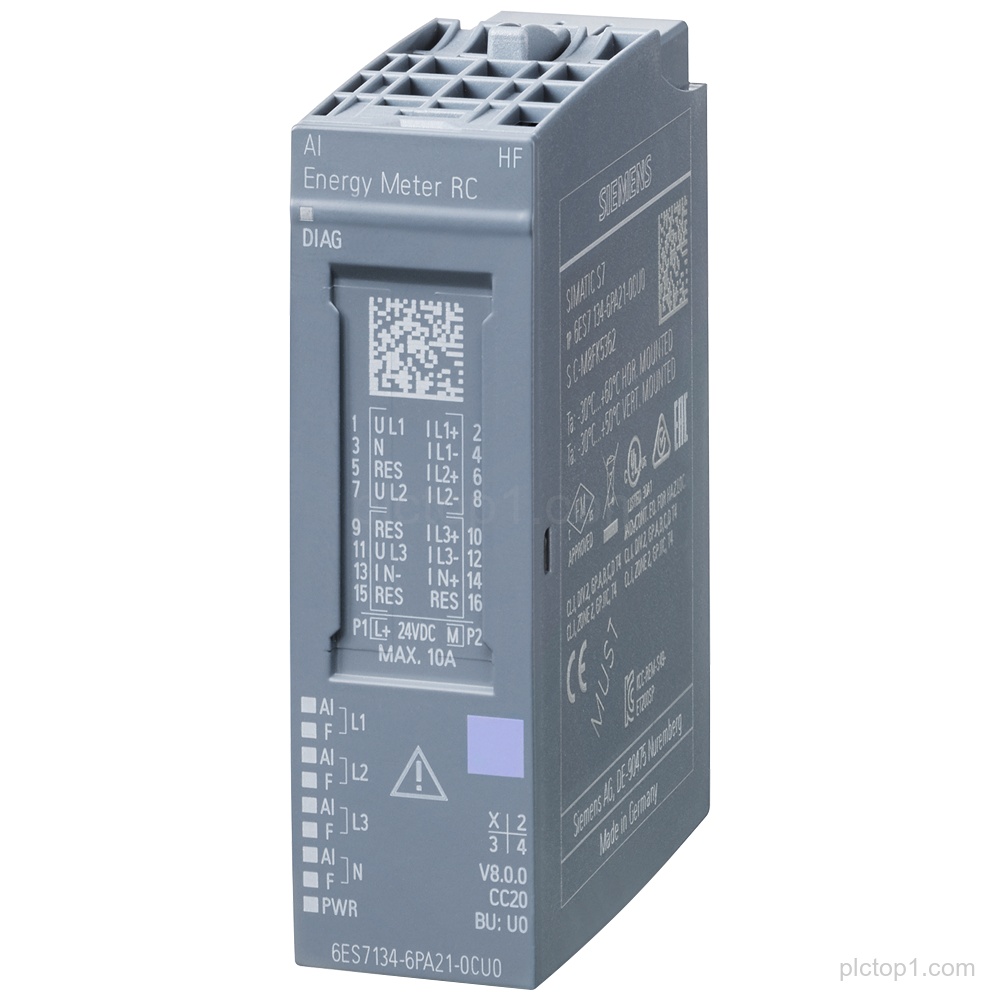

SIMATIC ET 200SP AI Energy Meter RC HF (Part number: 6ES7134-6PA21-0CU0) is an analog input module intended for use with Rogowski coils or current/voltage transformer 333 mV, providing network analysis functions and suitable channel diagnostics for BU type U0.
Detailed Parameters
Module type:analog input module
Product designation:AI Energy Meter RC HF
Input type/sensor input:for Rogowski coils or current/voltage transformer
Input level:current/voltage transformer 333 mV
Functions:network analysis functions
Suitability:suitable for BU type U0
Diagnostics:channel diagnostics
Engineering Context
The module AI Energy Meter RC HF is designed as an analog input module within SIMATIC ET 200SP.
It supports network analysis functions when used with Rogowski coils or a current/voltage transformer 333 mV.
Channel diagnostics are available for configurations suitable for BU type U0.
FAQ
1. What module family and module type is 6ES7134-6PA21-0CU0?
6ES7134-6PA21-0CU0 is a SIMATIC ET 200SP analog input module with the designation AI Energy Meter RC HF.
2. Which sensors or signal sources is the module intended for?
It is for Rogowski coils or current/voltage transformer 333 mV.
3. What functions are provided by the AI Energy Meter RC HF module?
It provides network analysis functions.
4. Is channel diagnostics supported?
Yes, it is provided as channel diagnostics.
5. For which BU type is the module suitable?
It is suitable for BU type U0.
