Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

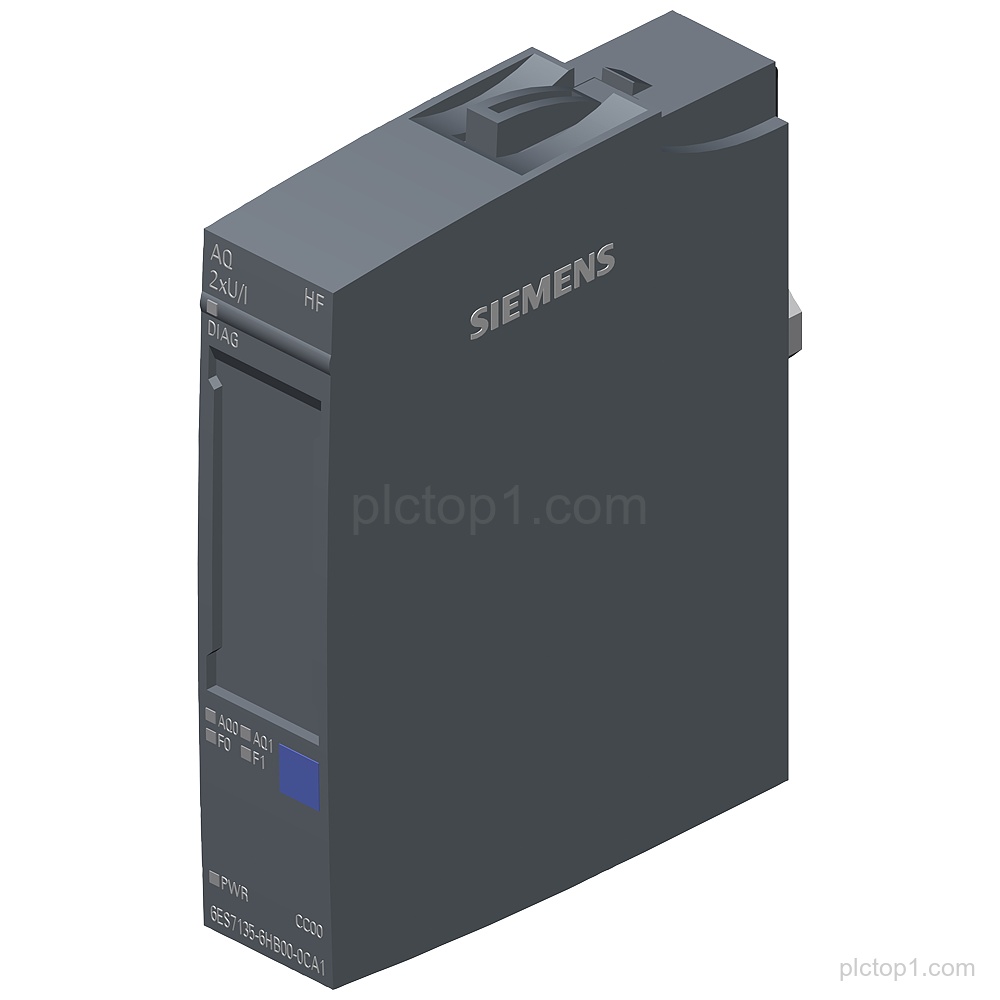

SIMATIC ET 200SP AQ 2x U/I High Feature, 6ES7135-6HB00-0CA1, is an analog output module suitable for BU type A0 and A1. It provides 2 analog output channels and channel diagnostics with 16 bit resolution.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Analog output module
Designation:AQ 2x U/I High Feature
Suitable for BU type:A0, A1
Color code:CC00
Channel diagnostics:Provided
Channel count:2
Resolution:16 bit
Accuracy:+/-0.1%
Engineering Context
The AQ 2x U/I High Feature is used as an analog output module in the SIMATIC ET 200SP system.
It is suitable for BU type A0 and A1 and provides channel diagnostics.
The module supports 2 analog output channels with 16 bit resolution and +/-0.1% accuracy.
FAQ
1. What is the module type of 6ES7135-6HB00-0CA1?
6ES7135-6HB00-0CA1 is a SIMATIC ET 200SP analog output module designated as AQ 2x U/I High Feature.
2. How many analog output channels does the AQ 2x U/I High Feature provide?
It provides 2 channels.
3. Does the module include channel diagnostics?
Yes, channel diagnostics are provided.
4. What resolution and accuracy are specified for this module?
The module is specified with 16 bit resolution and +/-0.1% accuracy.
5. Which BU types is this module suitable for?
It is suitable for BU type A0 and A1.
6. What color code is specified for the module?
The specified color code is CC00.
