Product information

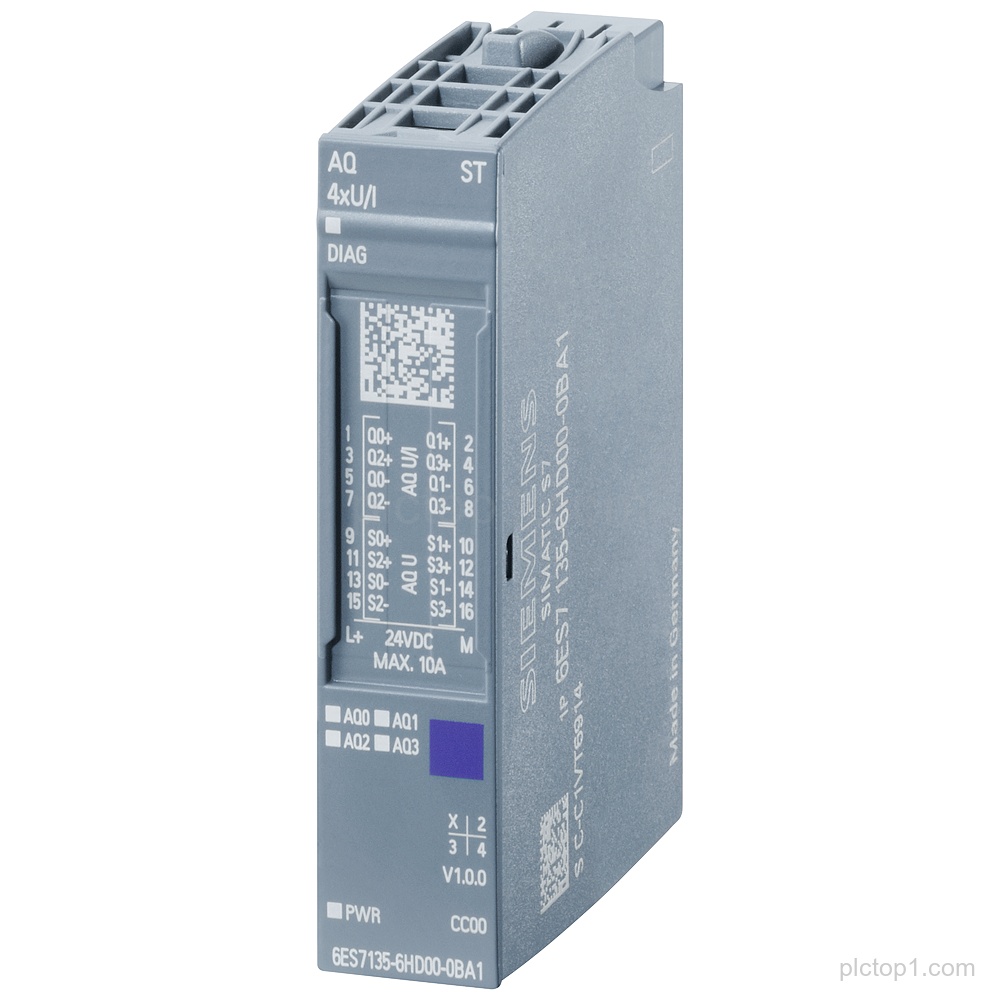

SIMATIC ET 200SP Analog output module AQ 4XU/I Standard (Part number: 6ES7135-6HD00-0BA1) provides module diagnostics, 16 bit value representation, and a stated analog accuracy of +/-0.3%.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module type:Analog output module
Product designation:AQ 4XU/I Standard
Suitable for:BU type A0, A1
Color code:CC00
Module diagnostics:Provided
Resolution:16 bit
Analog accuracy:+/-0.3%
Engineering Context
The module is an Analog output module within the SIMATIC ET 200SP system.
It is designed for operation with BU type A0 and A1 and has color code CC00.
Module diagnostics are provided and the module uses 16 bit value representation with an analog accuracy of +/-0.3%.
FAQ
1. What SIMATIC product family does 6ES7135-6HD00-0BA1 belong to?
6ES7135-6HD00-0BA1 belongs to the SIMATIC ET 200SP product family.
2. What is the function of 6ES7135-6HD00-0BA1?
It is an Analog output module (AQ 4XU/I Standard).
3. Which BU types is this module suitable for?
It is suitable for BU type A0 and A1.
4. Is module diagnostics available on this module?
Yes, module diagnostics are provided.
5. What is the stated resolution for this module?
The module is specified with 16 bit.
6. What is the stated analog accuracy?
The module is specified with +/-0.3%.
