Product information

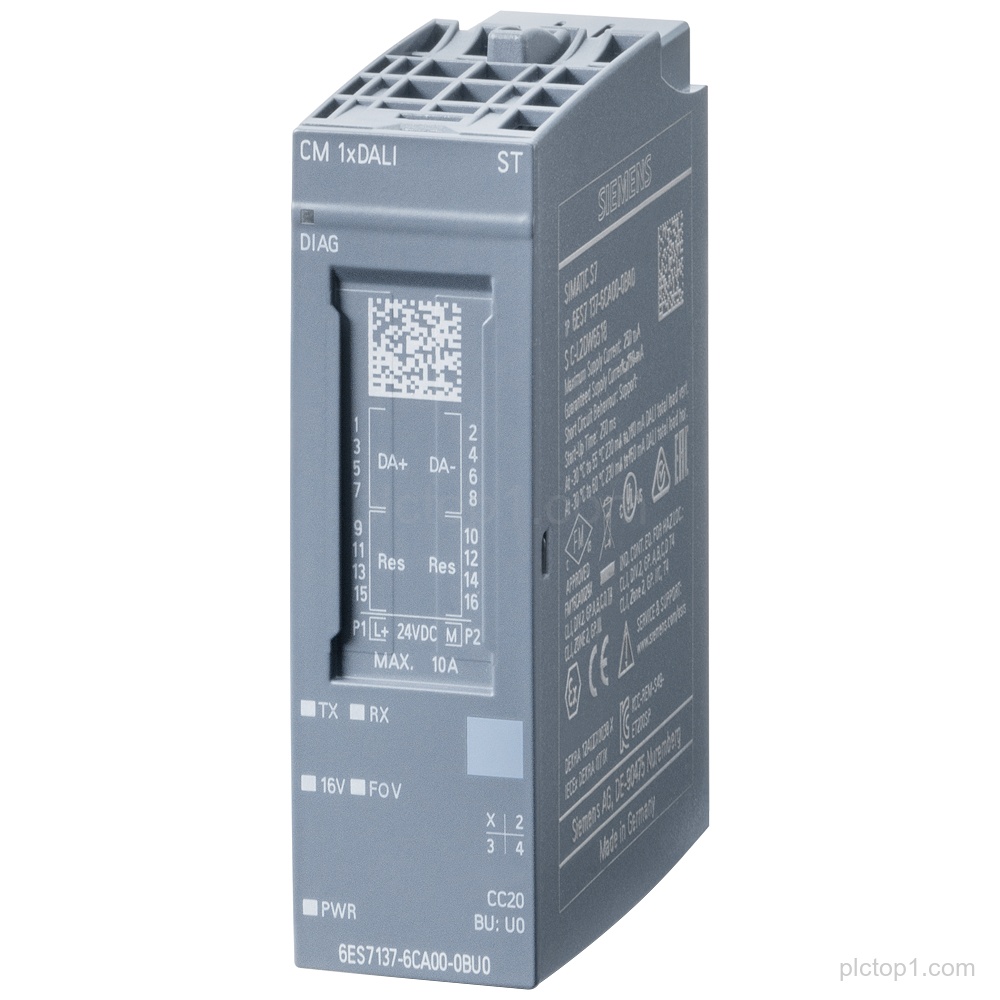

SIMATIC ET 200SP CM 1x DALI, DALI master module, integrated DALI bus power supply 160 mA; part number 6ES7137-6CA00-0BU0.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module:CM 1x DALI
Function designation:DALI master module
Integrated DALI bus power supply:160 mA
Max. DALI control gears:up to 64
Max. control devices:63
Color code:CC20
Suitability:suitable for BU type U0
Engineering Context
The SIMATIC ET 200SP CM 1x DALI provides a DALI master function with an integrated DALI bus power supply.
The module supports connecting up to 64 DALI control gears and up to 63 control devices.
The color code for the module is CC20 and it is suitable for BU type U0.
FAQ
1. What module type is 6ES7137-6CA00-0BU0?
6ES7137-6CA00-0BU0 is SIMATIC ET 200SP CM 1x DALI and a DALI master module.
2. Does this module include a DALI bus power supply?
Yes. It has an integrated DALI bus power supply of 160 mA.
3. How many DALI control gears and control devices can be connected?
It supports up to 64 DALI control gears and 63 control devices.
4. What color code is used by this module?
The color code is CC20.
5. For which BU type is the module suitable?
It is suitable for BU type U0.
