Product information

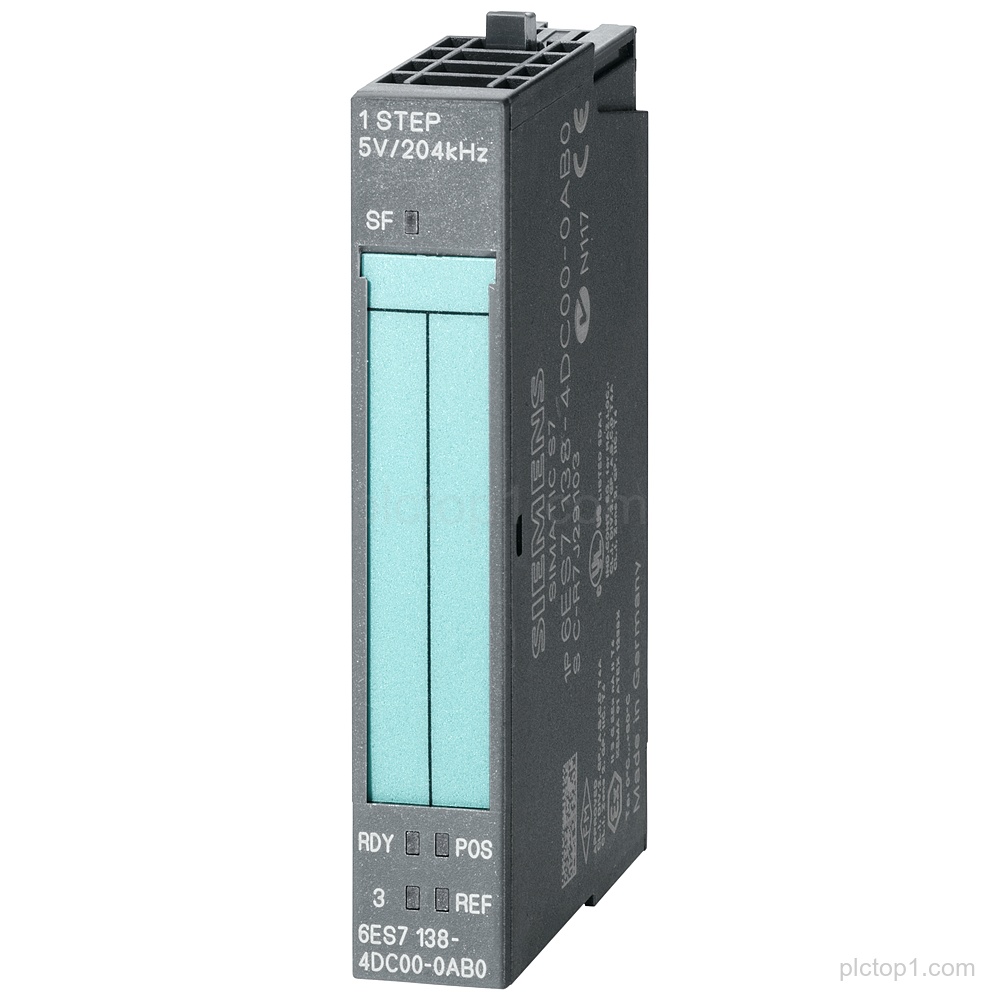

SIMATIC DP electronics module for ET 200S; spare part number 6ES7138-4DC01-0AB0 is intended for stepper motor positioning using a 1-channel +/-5 V interface to the power unit.
Detailed Parameters
Spare part:Yes
Product line:SIMATIC DP
Module for:ET 200S
Width:15 mm
Channel count:1-channel
Interface:+/-5 V
STEP 5 V:STEP 5 V
Positioning frequency:204 kHz
Function designation:for stepper motor positioning
Engineering Context
The SIMATIC DP electronics module is designed for ET 200S and supports stepper motor positioning.
The module provides a 1-channel +/-5 V interface to the power unit.
The module is specified as a 15 mm wide electronics module in the ET 200S system.
FAQ
1. What system and module type does 6ES7138-4DC01-0AB0 belong to?
6ES7138-4DC01-0AB0 is a SIMATIC DP electronics module for ET 200S.
2. What is the channel count and signal interface of the module?
It is a 1-channel module with a +/-5 V interface to the power unit.
3. What is the specified application/function of this electronics module?
It is intended for stepper motor positioning.
4. What positioning-related timing values are provided in the product information?
The product information specifies STEP 5 V and 204 kHz.
5. Is 6ES7138-4DC01-0AB0 specified as a spare part?
Yes, it is specified as a spare part.
