Product information

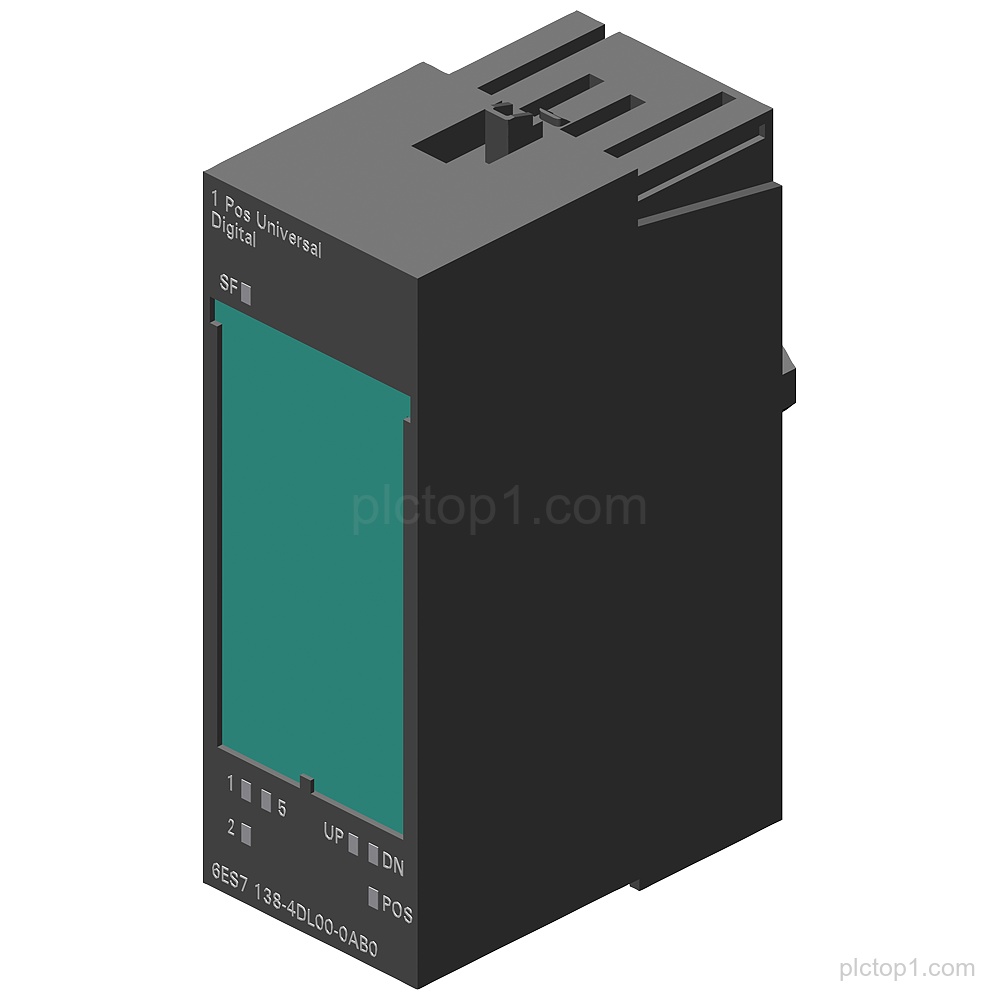

SIMATIC DP Electronics module for ET 200S (1 POS U) with controlled positioning and digital outputs for 5 V/24 V incremental encoder and SSI encoder, 30 mm overall width. Part number: 6ES7138-4DL00-0AB0.
Detailed Parameters
Article type:Spare part
Product family:SIMATIC DP
System:ET 200S
Module type / designation:Electronics module for ET 200S, 1 POS U
Function:Controlled positioning
Outputs:Digital outputs
Incremental encoder supply:5 V/24 V
Encoder interface:SSI encoder
Overall width:30 mm
Engineering Context
The module is specified as a SIMATIC DP electronics module for ET 200S with 1 POS U designation.
It is designed for controlled positioning with digital outputs for 5 V/24 V incremental encoders and SSI encoder operation.
The module is intended for an ET 200S configuration requiring a 30 mm overall width electronics module.
FAQ
1. What is the product family and module designation for part number 6ES7138-4DL00-0AB0?
It is a SIMATIC DP electronics module for ET 200S with the designation 1 POS U.
2. What is the core function of this electronics module?
It is for controlled positioning.
3. Which encoder types does the module support according to the provided information?
It provides digital outputs for 5 V/24 V incremental encoder and an SSI encoder.
4. What overall width is specified for the module?
The overall width is specified as 30 mm.
5. Is part number 6ES7138-4DL00-0AB0 identified as a spare part?
Yes, the information states it is a spare part.
