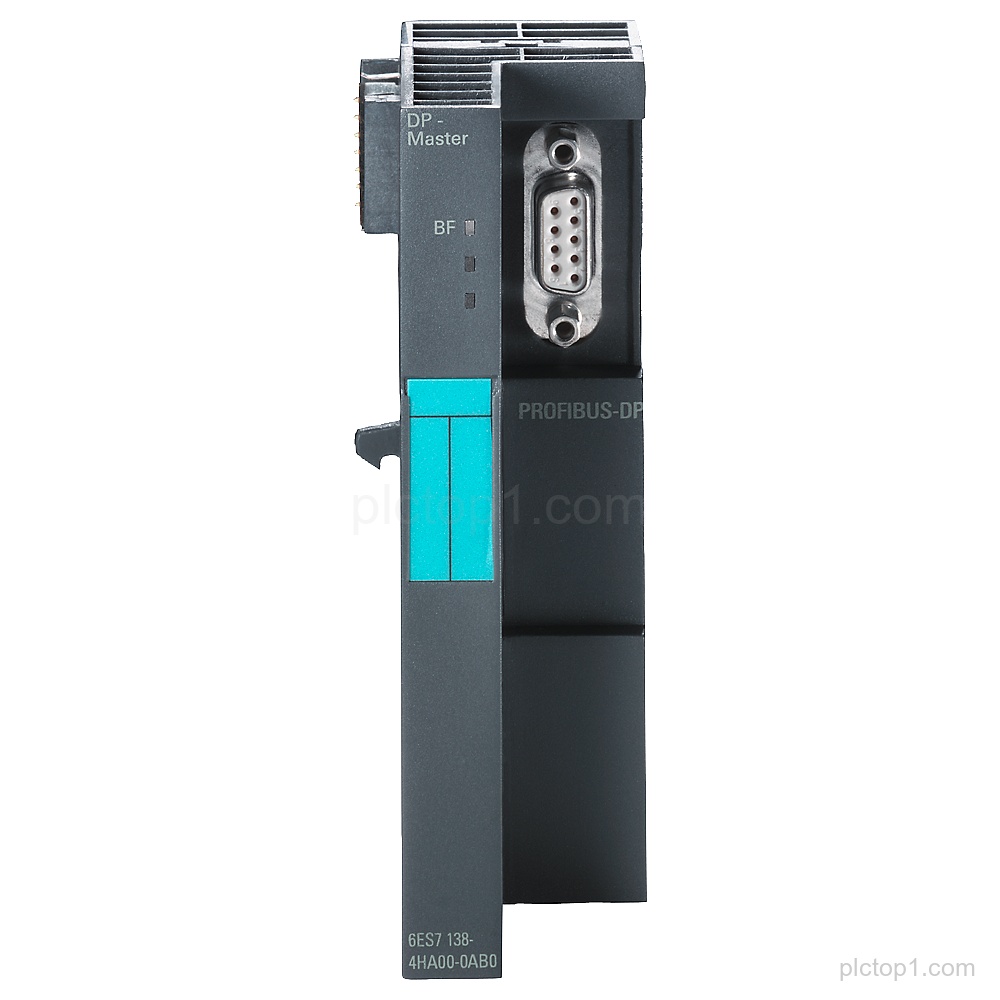

SIMATIC DP DP master interface with PROFIBUS DP interface, part number 6ES7138-4HA00-0AB0, for use with IM151-7 CPU or IM151-8 PN/DP (ET200S).
Detailed Parameters
Product type:DP master interface module
PROFIBUS DP interface:module with PROFIBUS DP interface (9-pole D-sub socket) as DP master
Intended for:IM151-7 CPU or IM151-8 PN/DP (ET200S)
Network:SIMATIC DP, PROFIBUS DP
Spare part:spare part
Engineering Context
The module is designed as a DP master interface for SIMATIC DP.
The PROFIBUS DP interface is implemented via a 9-pole D-sub socket.
The DP master interface is intended for IM151-7 CPU or IM151-8 PN/DP in ET200S.
FAQ
1. What is the function of 6ES7138-4HA00-0AB0?
It is a DP master interface module for SIMATIC DP with a PROFIBUS DP interface as DP master.
2. Which interface socket does the module use for PROFIBUS DP?
It uses a PROFIBUS DP interface with a 9-pole D-sub socket.
3. For which CPU variants is the DP master interface intended?
It is intended for IM151-7 CPU or IM151-8 PN/DP (ET200S).
4. Is this item a spare part?
Yes, it is identified as a spare part.
