Product information

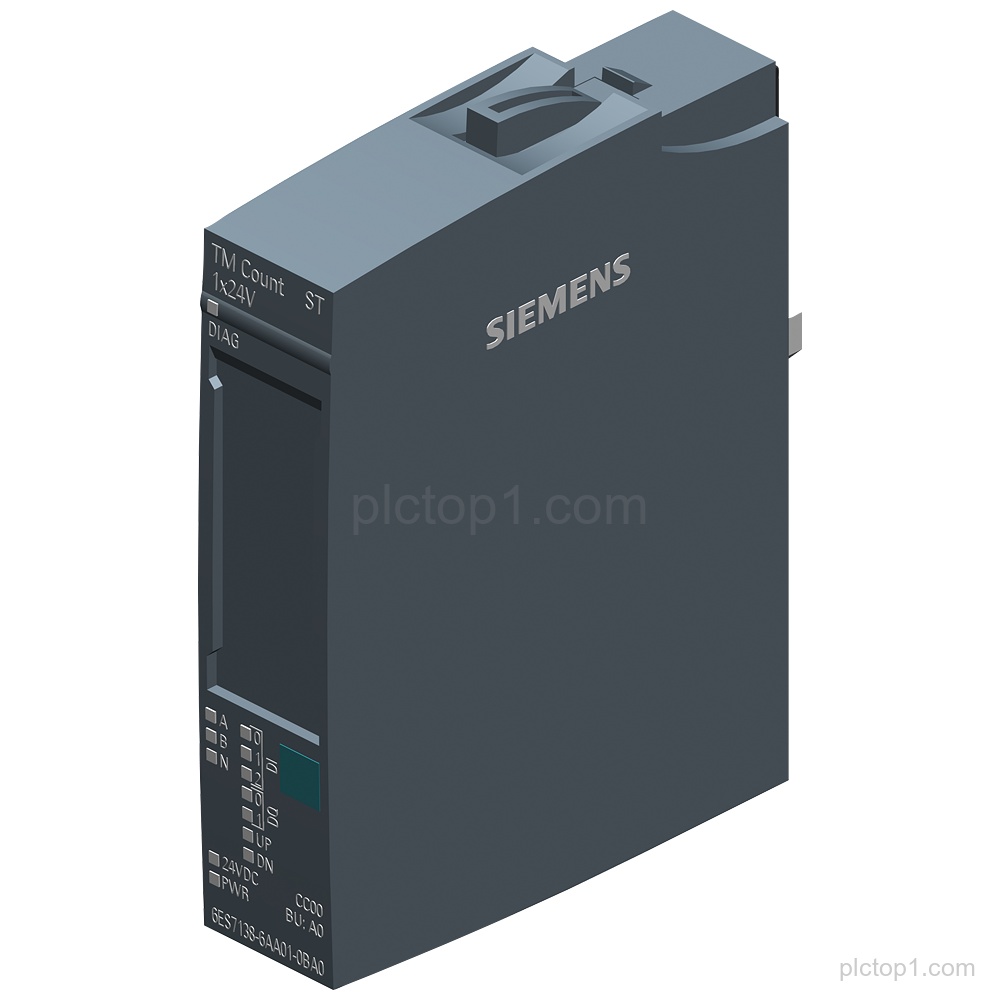

SIMATIC ET 200SP TM count 1x 24 V Counter module, part number 6ES7138-6AA01-0BA0, for 24 V incremental encoder or pulse encoder signals with 1 channel and 3 DI / 2 DQ.
Detailed Parameters
Product family:SIMATIC ET 200SP
Module designation:TM count 1x 24 V Counter module
Encoder / pulse input:1 channel for 24 V incremental encoder or pulse encoder
Digital inputs (DI):3 DI
Digital outputs (DQ):2 DQ
Suitable for:BU type A0
Packing quantity:1 unit
Engineering Context
This TM count 1x 24 V Counter module is part of the SIMATIC ET 200SP system.
The module provides 1 channel for connecting a 24 V incremental encoder or pulse encoder.
It is suitable for use with BU type A0 and includes 3 DI and 2 DQ.
FAQ
1. Which module family and designation does 6ES7138-6AA01-0BA0 belong to?
6ES7138-6AA01-0BA0 is a SIMATIC ET 200SP TM count 1x 24 V Counter module.
2. How many channels are available for encoder or pulse signals?
It provides 1 channel for 24 V incremental encoder or pulse encoder.
3. What are the DI and DQ counts?
The module has 3 DI and 2 DQ.
4. Which BU type is the module suitable for?
It is suitable for BU type A0.
5. What is the packing quantity?
The packing quantity is 1 unit.
