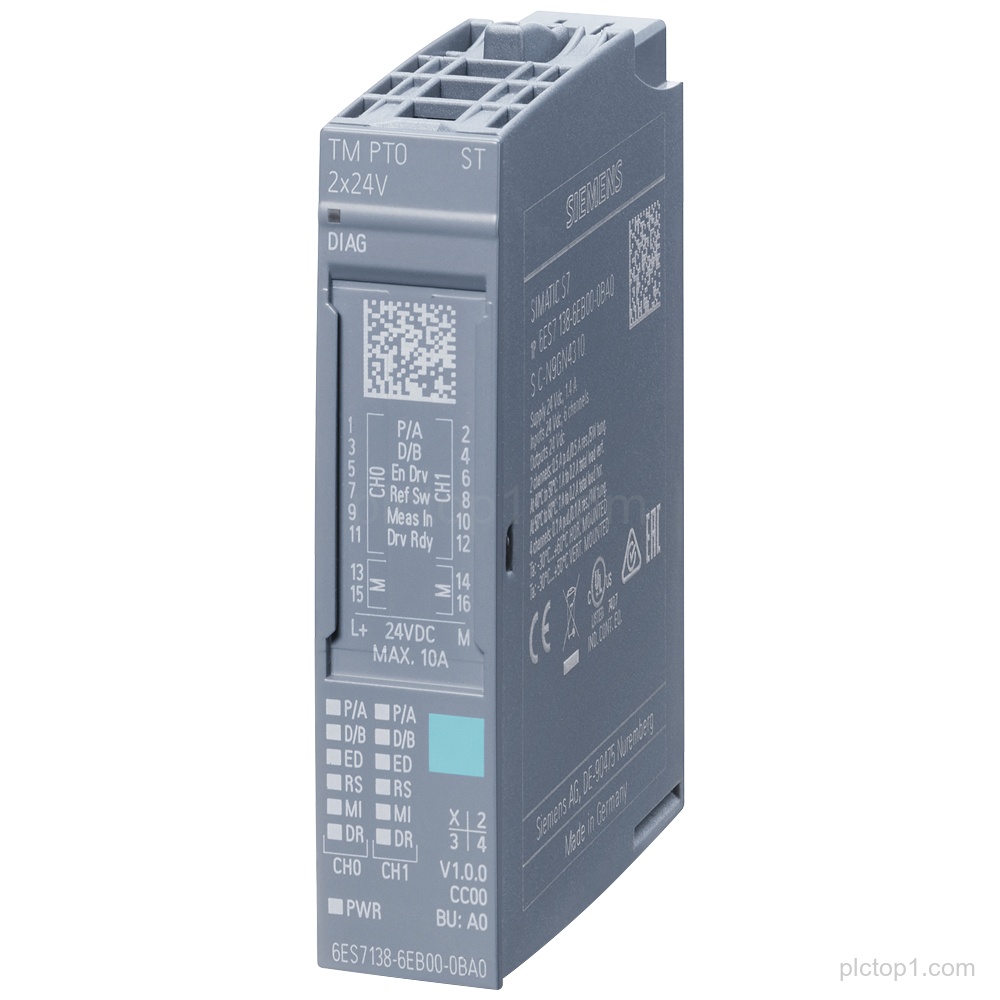

SIMATIC ET 200SP TM PTO 2×24 V, interface module for stepper drives (Part number: 6ES7138-6EB00-0BA0). Provides 2 channels pulse train output with PTO: 24 V and per channel signals of 2 DI and 1 DQ 24 V DC, suitable for BU type A0.
Detailed Parameters
Product family / system:SIMATIC ET 200SP
Module type:TM PTO 2×24 V
Interface module function:interface module for stepper drives
Output type:pulse train output
Number of pulse train output channels:2
PTO supply voltage:24 V
DI per channel:2
DQ per channel:1
DQ per channel voltage:24 V DC
Suitable for:BU type A0
Engineering Context
The TM PTO 2×24 V interface module is intended for stepper drives within the SIMATIC ET 200SP system.
The module provides 2 channels of pulse train output with PTO: 24 V.
Per channel, the module includes 2 DI and 1 DQ with a DQ voltage of 24 V DC and is suitable for BU type A0.
FAQ
1. What module family does 6ES7138-6EB00-0BA0 belong to?
6ES7138-6EB00-0BA0 belongs to SIMATIC ET 200SP.
2. What is the function of TM PTO 2×24 V on this part number?
It is an interface module for stepper drives.
3. How many pulse train output channels are provided?
The module provides 2 channels pulse train output.
4. What is the PTO voltage for the pulse train output?
The PTO voltage is 24 V.
5. How many DI and DQ signals are available per channel, and what is the DQ voltage?
Per channel: 2 DI and 1 DQ with DQ 24 V DC.
6. For which BU type is the module suitable?
It is suitable for BU type A0.
