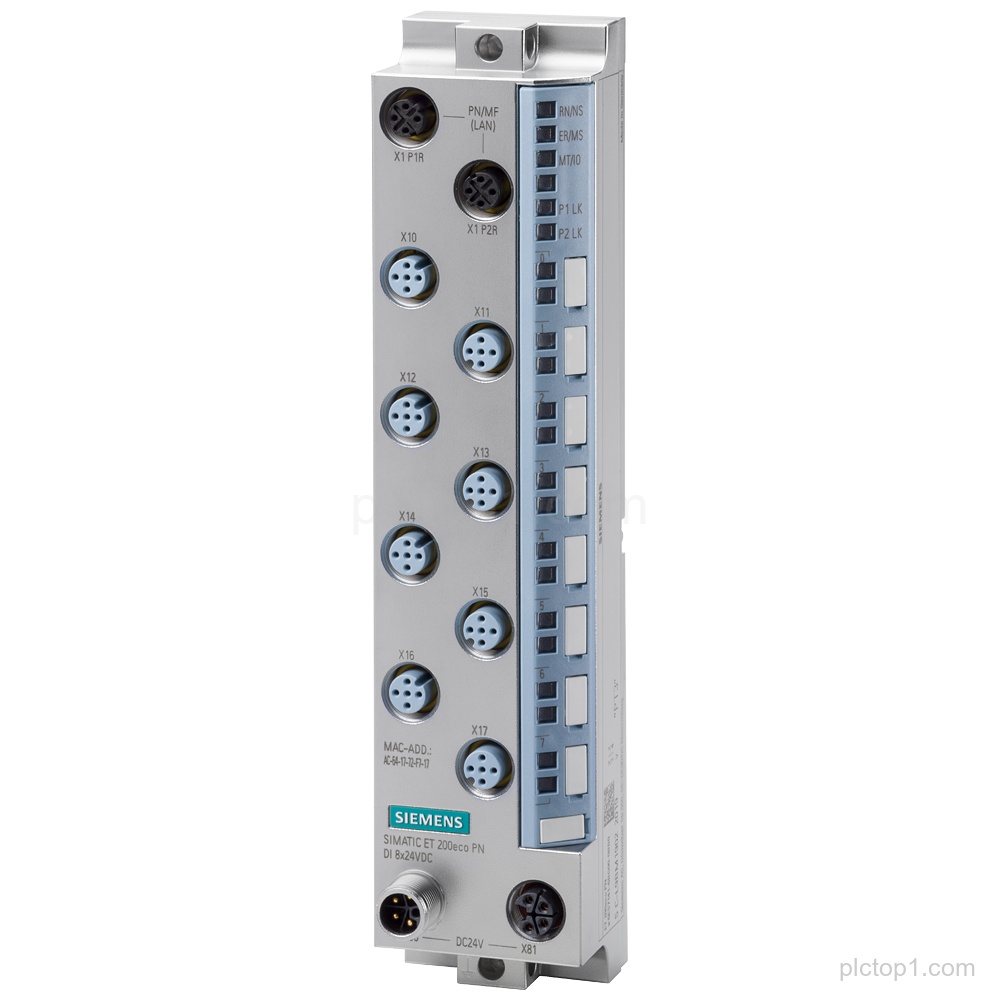

SIMATIC ET 200eco PN DI 8x 24 V DC M12-L digital input module, part number 6ES7141-6BG00-0BB0, provides eight 24 V DC sinking inputs with configurable input delay and channel diagnostics for selected input and power supply fault conditions.
Detailed Parameters
Product family/system:SIMATIC ET 200eco PN
Function designation:DI 8x 24 V DC, M12-L
Input channels:8
Input voltage:24 V DC
Connector type:M12-L
Number of M12 connections:8x M12
Assignment:single and double assignment
Input type:input type 3 (IEC 61131)
Input characteristic:sink input (PNP, sinking input)
Input delay:0.05..20 ms
Channel diagnostics:wire break at input; encoder power supply short-circuit
Isochronous mode:0.25 ms
Startup behavior:prioritized startup
Redundancy:S2 redundancy
I&M:I&M0…3
Supported mechanisms:MSI, MRP
Fieldbus support:multi-fieldbus
PROFINET IO:PN IO
Ethernet protocols:Ethernet IP, Modbus TCP
Degree of protection:IP67 / IP69K
Engineering Context
The module 6ES7141-6BG00-0BB0 is part of the SIMATIC ET 200eco PN system and provides DI 8x 24 V DC with M12-L connections.
Channel diagnostics include wire break at input and encoder power supply short-circuit.
The module supports 0.25 ms isochronous mode and S2 redundancy depending on system configuration.
FAQ
1. What does 6ES7141-6BG00-0BB0 provide?
SIMATIC ET 200eco PN DI 8x 24 V DC, M12-L digital inputs with sink input (PNP, sinking input) and 8x M12 connections.
2. How many input channels does the module have?
8 input channels.
3. What is the input type and signal characteristic?
Input type 3 (IEC 61131) and sink input (PNP, sinking input).
4. What input delay range is supported?
0.05..20 ms.
5. Which channel diagnostics are specified?
Wire break at input and encoder power supply short-circuit.
6. What redundancy and timing features are specified?
S2 redundancy and 0.25 ms isochronous mode.
7. Which network protocols are specified?
Ethernet IP and Modbus TCP (and PN IO is specified).
8. What degree of protection is specified?
IP67 / IP69K.
