Product information

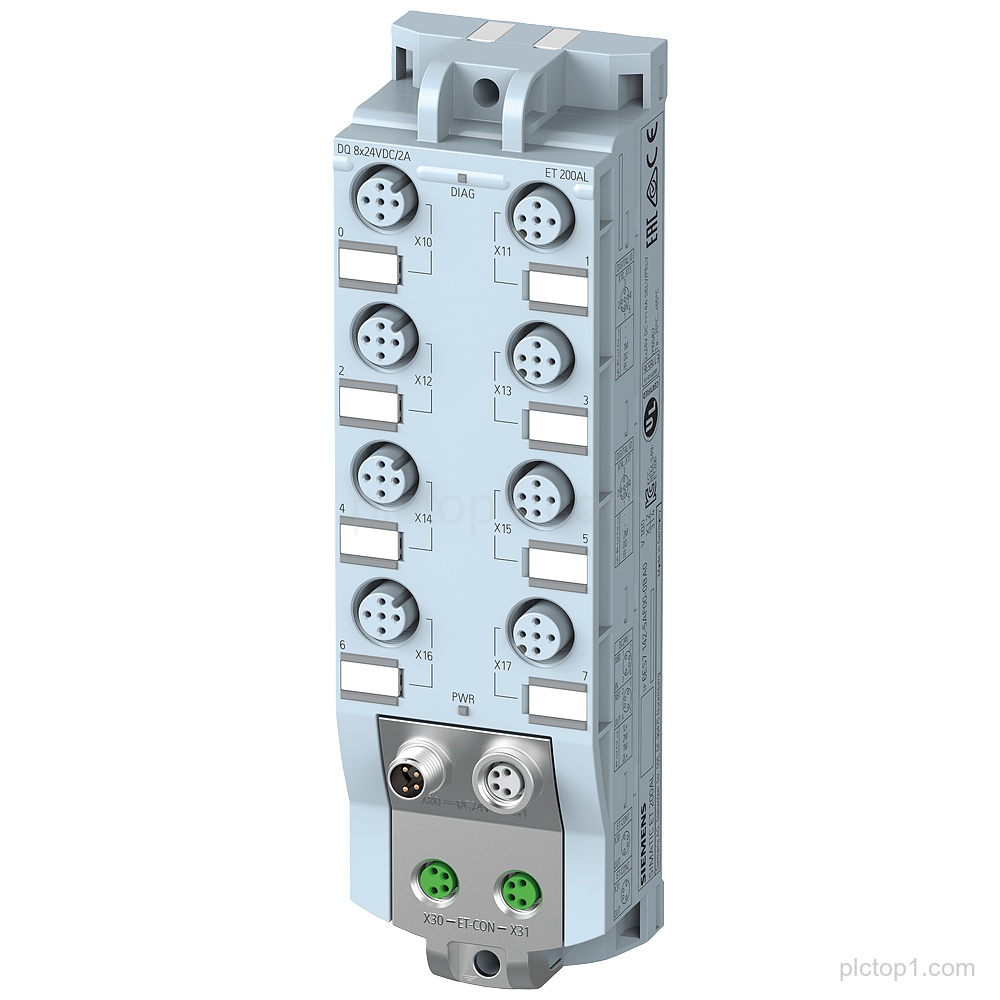

SIMATIC ET 200AL DQ 6ES7142-5AF00-0BA0 provides 8x 24 V DC/2 A outputs via 8x M12 and supports a Degree of protection IP67.
Detailed Parameters
Product family:SIMATIC ET 200AL
Module designation:DQ
Number of outputs:8x
Output rating:24 V DC/2 A
Connector type:8x M12
Degree of protection:IP67
Engineering Context
SIMATIC ET 200AL DQ module 6ES7142-5AF00-0BA0 is designed as an output (DQ) module with 8x channels.
The module is intended to provide outputs with 24 V DC/2 A using 8x M12 connections.
The Degree of protection is IP67.
FAQ
1. What is the product family and module type for 6ES7142-5AF00-0BA0?
6ES7142-5AF00-0BA0 belongs to SIMATIC ET 200AL and is a DQ module.
2. How many outputs does the DQ module 6ES7142-5AF00-0BA0 provide?
It provides 8x outputs.
3. What is the output rating of the module?
The output rating is 24 V DC/2 A.
4. Which connection interface is used for the outputs?
It uses 8x M12 connections.
5. What is the Degree of protection of 6ES7142-5AF00-0BA0?
The Degree of protection is IP67.
