Product information

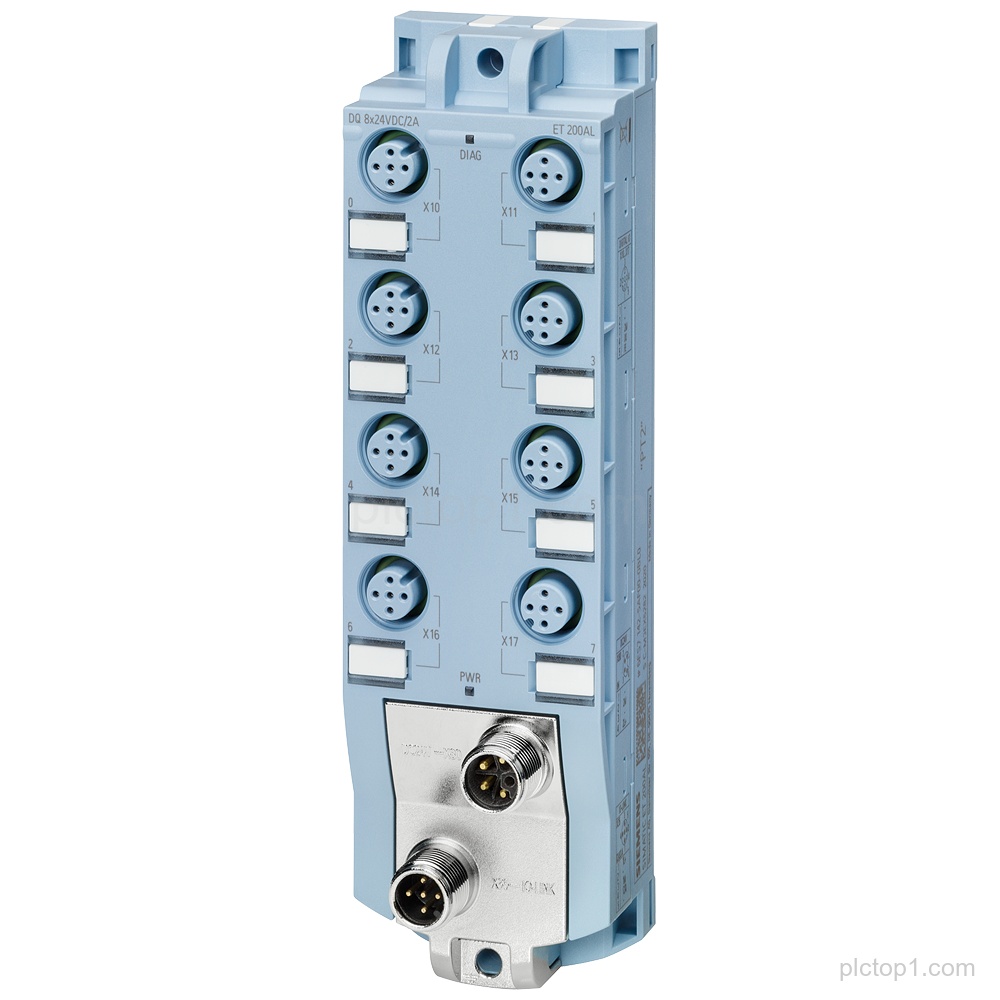

SIMATIC ET 200AL IO-Link DQ module (Part number: 6ES7142-5AF00-0BL0) for 8x 24 V DC/2 A outputs with 8x M12 connectors and a degree of protection IP67.
Detailed Parameters
Product family:SIMATIC ET 200AL
Interface:IO-Link
Function:DQ
Number of digital outputs:8x
Output voltage:24 V DC
Output current:2 A
Connector type:8x M12
Degree of protection:IP67
Engineering Context
The module belongs to the SIMATIC ET 200AL IO-Link system as a DQ (digital outputs) component.
It provides 8x digital outputs specified as 24 V DC/2 A with 8x M12 connectors.
The degree of protection is IP67.
FAQ
1. Which product family and designation does 6ES7142-5AF00-0BL0 belong to?
6ES7142-5AF00-0BL0 is a SIMATIC ET 200AL IO-Link DQ (digital outputs) module.
2. How many digital outputs are provided and what are the output ratings?
The module provides 8x digital outputs with 24 V DC/2 A.
3. What connector type is specified for the outputs?
The module provides 8x M12 connections.
4. What degree of protection is specified?
The degree of protection is IP67.
