Product information

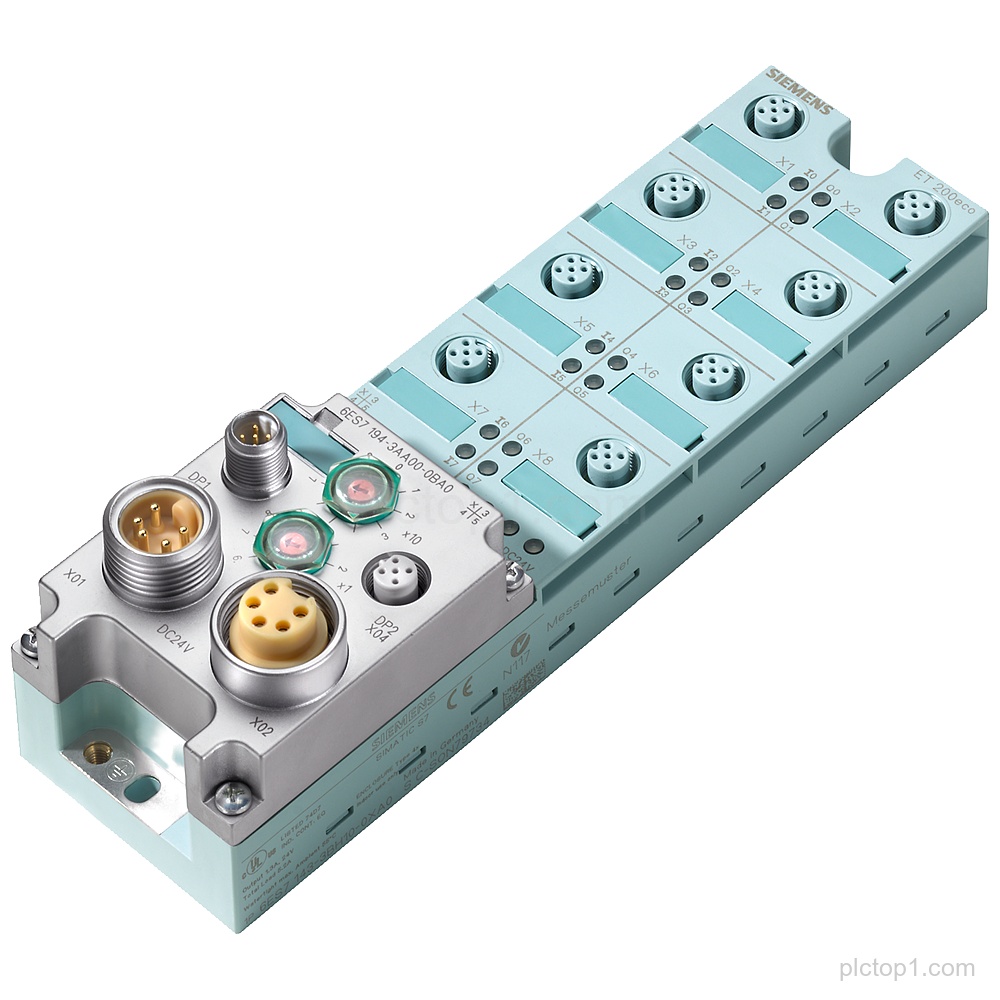

SIMATIC DP Basic module BM 143 ET 200ECO provides 8 DI/8 DO with duplicate assignment for use with ET 200ECO, Part number 6ES7143-3BH10-0XA0; connection block 6ES7194-3AA00-0.A0 must be ordered separately.
Detailed Parameters
Product family:SIMATIC DP
Product designation:Basic module BM 143 ET 200ECO
Signal configuration:8 DI/8 DO
Current rating:1.3A
Connector type/count:8xM12
Assignment:Duplicate assignment
Protection degree:IP65/67
Connection block:Connection block 6ES7194-3AA00-0.A0 order separately
Engineering Context
The Basic module BM 143 ET 200ECO in SIMATIC DP is configured as 8 DI/8 DO.
The module uses 8xM12 connectors and supports duplicate assignment.
The connection block 6ES7194-3AA00-0.A0 is ordered separately for module connection.
FAQ
1. What is the product designation for Part number 6ES7143-3BH10-0XA0?
SIMATIC DP Basic module BM 143 ET 200ECO.
2. How many input and output channels does the module provide?
8 DI and 8 DO.
3. What connector type and count are used?
8xM12.
4. Does the module support duplicate assignment?
Yes, duplicate assignment.
5. What is the protection degree?
IP65/67.
6. Is the connection block included with the module?
No, the connection block 6ES7194-3AA00-0.A0 is ordered separately.
