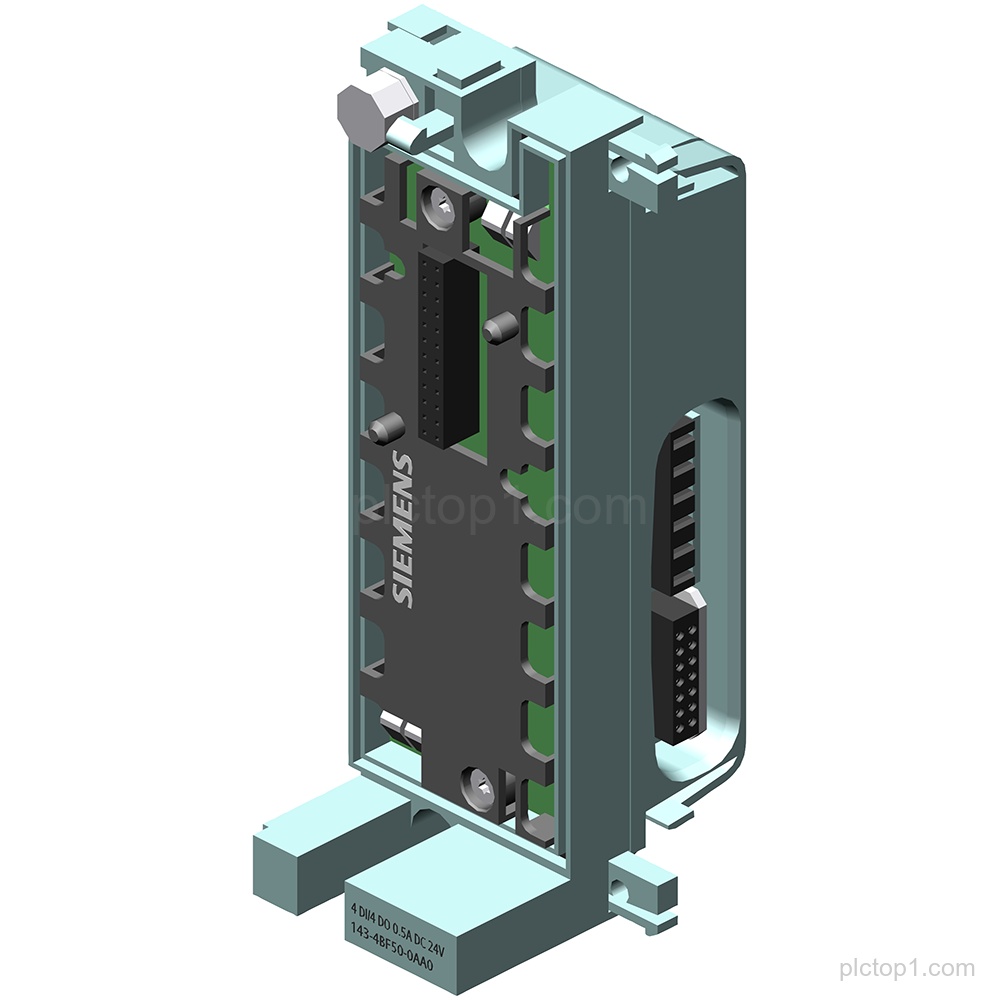

ET 200 PRO electronic module for SIMATIC DP with part number 6ES7143-4BF50-0AA0, designed as a 4 DI/4 DO 24 V DC module with 0.5A module diagnostics; incl. bus module; connection module IO 6ES7194-4..00-0AA0 ordered separately.
Detailed Parameters
Product system:ET 200 PRO
Product designation:SIMATIC DP
Module type:Electronic module
Digital inputs:4 DI
Digital outputs:4 DO
Supply voltage:24 V DC
Module diagnostics:0.5A
Includes:bus module
Connection module:Connection module IO 6ES7194-4..00-0AA0 order separately
Engineering Context
This SIMATIC DP electronic module is intended for use in the ET 200 PRO system with 4 DI/4 DO 24 V DC.
The module provides module diagnostics with the value 0.5A.
A separate connection module IO 6ES7194-4..00-0AA0 is required (ordered separately).
FAQ
1. What module family and designation does 6ES7143-4BF50-0AA0 belong to?
It belongs to SIMATIC DP as an electronic module for ET 200 PRO.
2. How many digital inputs and outputs are provided?
The module provides 4 DI and 4 DO.
3. What supply voltage is specified for the module?
The module is specified for 24 V DC.
4. What diagnostics are included?
The module includes module diagnostics with 0.5A.
5. Does the scope of delivery include the bus module and what must be ordered separately?
It includes the bus module; the connection module IO 6ES7194-4..00-0AA0 must be ordered separately.
