Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

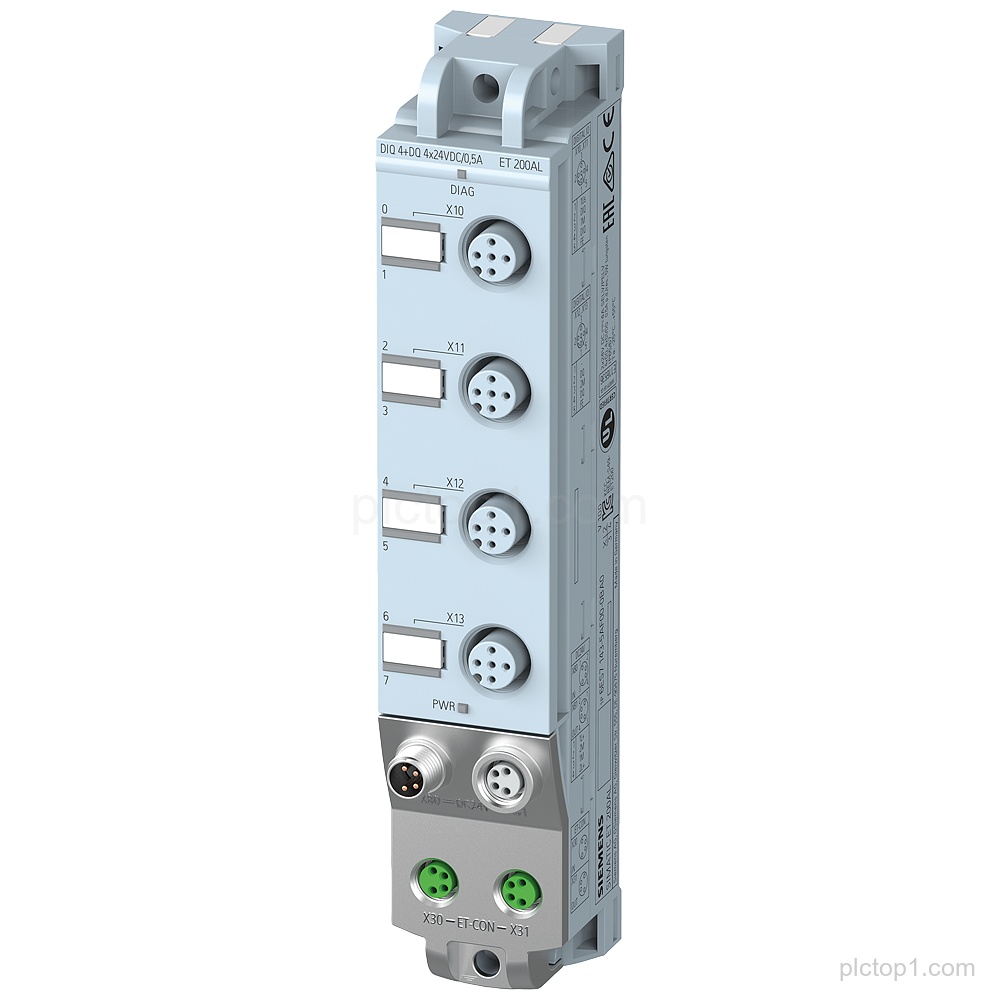

SIMATIC ET 200AL DIQ 4+DQ 4 with part number 6ES7143-5AF00-0BA0 is configured with 4x M12 and a degree of protection IP67, supporting 4x 24 V DC/0.5 A for DIQ/DQ function groups.
Detailed Parameters
Product family:SIMATIC ET 200AL
Module designation:DIQ 4+DQ 4
Digital outputs:4x 24 V DC/0.5 A
Connector type/count:4x M12
Degree of protection:IP67
Engineering Context
The SIMATIC ET 200AL DIQ 4+DQ 4 combines DIQ and DQ functionality in one module.
The module is provided with 4x M12 connections for the DIQ/DQ signals.
The specified degree of protection is IP67.
FAQ
1. What is the Siemens product family and module designation for 6ES7143-5AF00-0BA0?
It is SIMATIC ET 200AL with module designation DIQ 4+DQ 4.
2. How many channels does the DIQ 4+DQ 4 module provide?
DIQ 4+DQ 4 indicates 4 digital input channels and 4 digital output channels.
3. What is the specified output rating for the DIQ 4+DQ 4 module?
4x 24 V DC/0.5 A.
4. Which connector type is used on the module?
4x M12.
5. What is the degree of protection of the module?
IP67.
