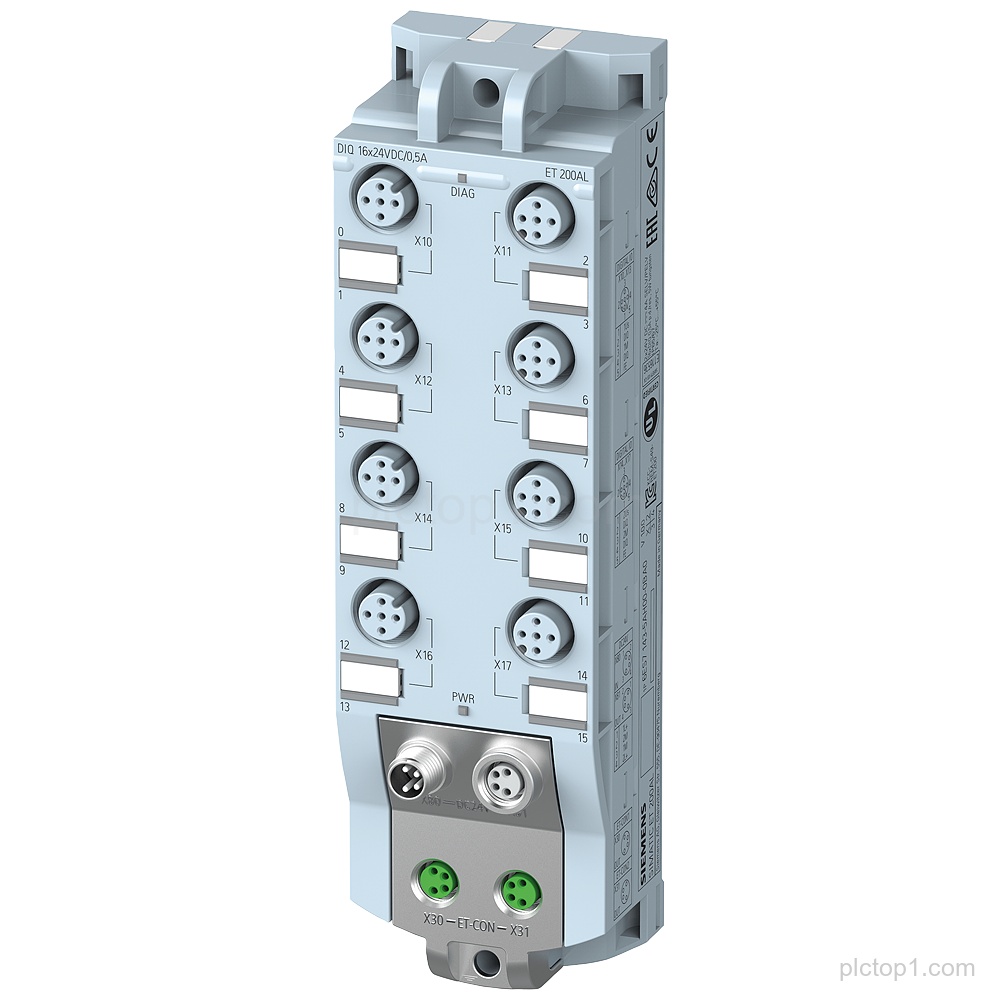

SIMATIC ET 200AL DIQ 16×24 V DC/0.5 A 8xM12, Degree of protection IP67 (Part number: 6ES7143-5AH00-0BA0).
Detailed Parameters
Product family:SIMATIC ET 200AL
Module designation:DIQ
Input count:16
Input voltage:24 V DC
Current per input:0.5 A
Connection type:8xM12
Degree of protection:IP67
Engineering Context
The DIQ module is intended for use within the SIMATIC ET 200AL system.
The module provides 16 DIQ inputs with 24 V DC and 0.5 A.
With 8xM12 connections and a Degree of protection IP67, the module is suitable for protected installation conditions as specified.
FAQ
1. Which SIMATIC product family does 6ES7143-5AH00-0BA0 belong to?
It belongs to SIMATIC ET 200AL.
2. What is the module designation for 6ES7143-5AH00-0BA0?
The module designation is DIQ.
3. How many inputs are provided on the DIQ module?
It provides 16 inputs.
4. What input voltage and current are specified?
The inputs are specified as 24 V DC and 0.5 A.
5. What connector format is specified?
The connector format is 8xM12.
6. What is the Degree of protection for this module?
The Degree of protection is IP67.
