Ordering this product
Check the full part number and required version against your equipment. Add any electrical or connection requirements when contacting us.
Product information

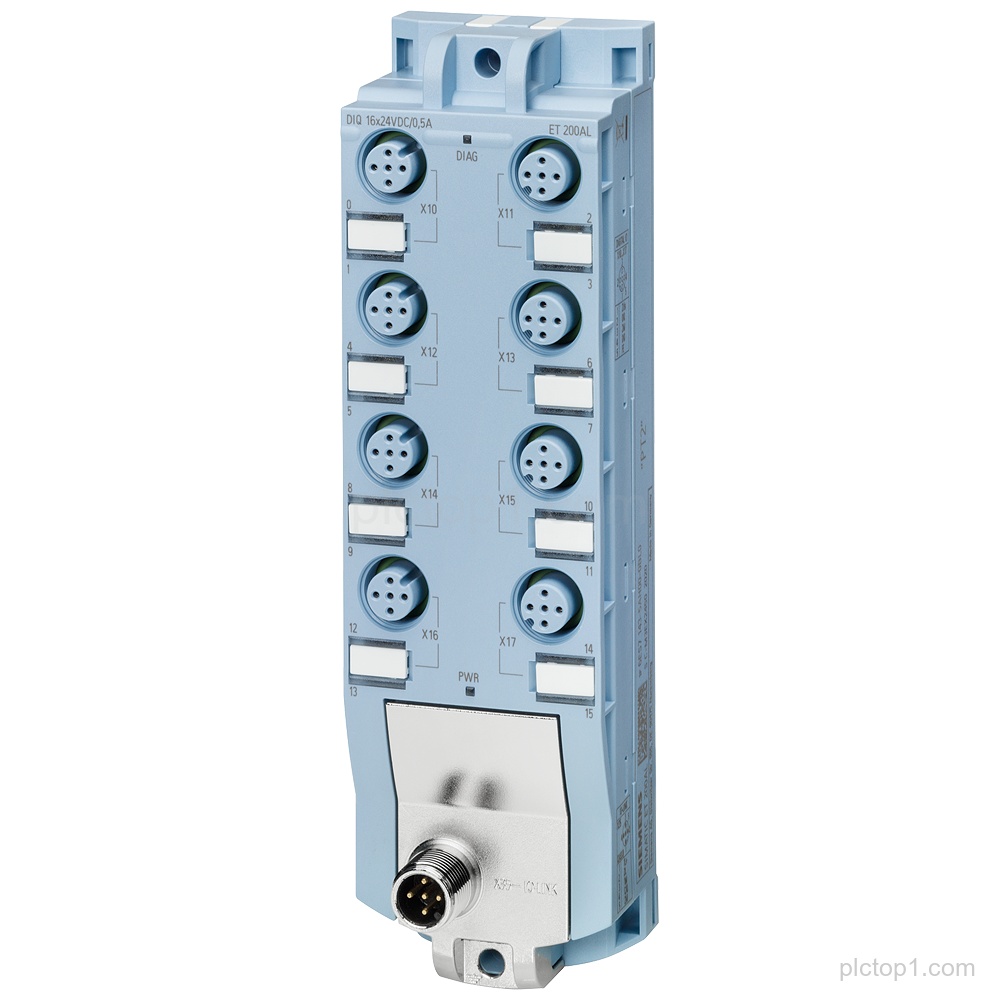

SIMATIC ET 200AL IO-Link DIQ module (part number 6ES7143-5AH00-0BL0) provides digital inputs for 24 V DC with 0.5 A per channel, using 8x M12 connections and an IP67 degree of protection.
Detailed Parameters
Product family:SIMATIC ET 200AL
IO-Link:IO-Link
Module designation:DIQ 16×24 V DC/0.5 A
Channel/connectors:8x M12
Degree of protection:IP67
Engineering Context
This SIMATIC ET 200AL IO-Link DIQ module supports DIQ 16×24 V DC/0.5 A configurations with 8x M12 connections.
The degree of protection for this module is IP67.
The module is intended for use within a SIMATIC ET 200AL system configured with IO-Link.
FAQ
1. What is the product family and designation of part 6ES7143-5AH00-0BL0?
6ES7143-5AH00-0BL0 is a SIMATIC ET 200AL IO-Link DIQ module.
2. What signal and rating does the DIQ module provide?
It is specified as DIQ 16×24 V DC/0.5 A.
3. How many M12 connectors are provided on this module?
The module has 8x M12.
4. What is the degree of protection of 6ES7143-5AH00-0BL0?
The degree of protection is IP67.
