Product information

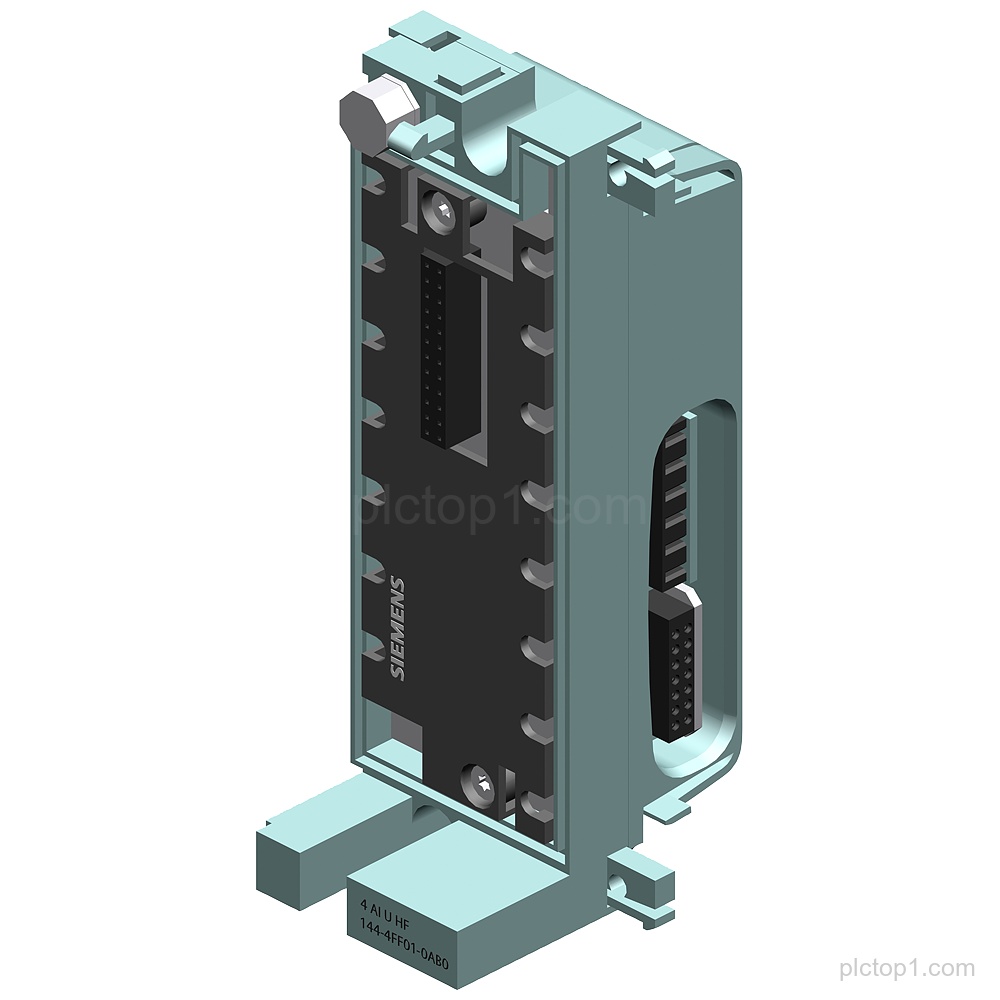

SIMATIC DP electronic module for ET 200 PRO 4 AI U High Feature with part number 6ES7144-4FF01-0AB0; includes the bus module and requires the Connection module IO 6ES7194-4..00-0AA0 ordered separately.
Detailed Parameters
Product family:SIMATIC DP
Module type:Electronic module
Target system:ET 200 PRO 4 AI U High Feature
Input ranges:+-10 V; 0…10 V; +-5 V; 1…5V
Diagnostics:Channel diagnostics
Included items:incl. bus module
Connection module:Connection module IO 6ES7194-4..00-0AA0 order separately
Engineering Context
Designed as an electronic module in the SIMATIC DP system for ET 200 PRO 4 AI U High Feature.
Provides analog input voltage ranges of +-10 V, 0…10 V, +-5 V, and 1…5V with channel diagnostics.
Supplied including the bus module, while the Connection module IO 6ES7194-4..00-0AA0 must be ordered separately.
FAQ
1. Which product family and module designation does 6ES7144-4FF01-0AB0 belong to?
It is a SIMATIC DP electronic module for ET 200 PRO 4 AI U High Feature.
2. What input voltage ranges are supported?
+-10 V; 0…10 V; +-5 V; 1…5V.
3. Does the module include diagnostics?
Yes, it supports channel diagnostics.
4. Is the bus module included with the electronic module?
Yes, it is included (incl. bus module).
5. Does the module require a separate connection module?
Yes, the Connection module IO 6ES7194-4..00-0AA0 is ordered separately.
