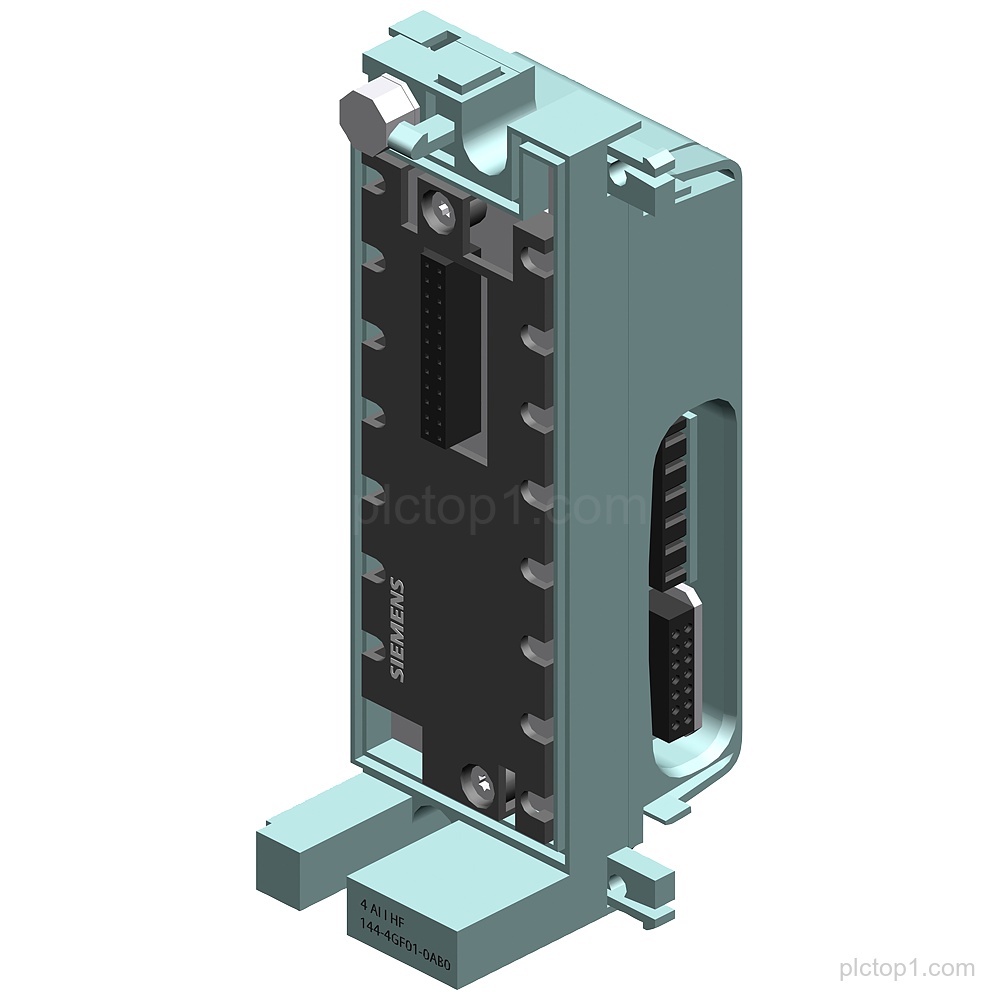

Electronic module for ET 200 PRO (SIMATIC DP) with part number 6ES7144-4GF01-0AB0, designed for 4-channel analog input (AI I High Feature) with channel diagnostics.
Detailed Parameters
System family:SIMATIC DP
Module type:Electronic module for ET 200 PRO 4 AI I High Feature
Number of channels:4
Input current range:+-20 mA; 0…20 mA; 4-20mA
Diagnostics:Channel diagnostics
Included components:Incl. bus module
Connection module:Connection module IO 6ES7194-4..00-0AA0 order separately
Engineering Context
For SIMATIC DP, this electronic module is designed as an ET 200 PRO 4 AI I High Feature analog input module.
The module supports the specified current input ranges and provides channel diagnostics.
The bus module is included with the module, while the connection module IO 6ES7194-4..00-0AA0 is ordered separately.
FAQ
1. What is the product family and module designation for 6ES7144-4GF01-0AB0?
SIMATIC DP electronic module for ET 200 PRO 4 AI I High Feature.
2. How many channels does the ET 200 PRO AI module support?
The module is a 4-channel (4 AI) electronic module.
3. Which analog current input ranges are supported?
+-20 mA; 0…20 mA; 4-20mA.
4. Does the module include diagnostics?
Yes, it includes channel diagnostics.
5. Is the connection module included with this electronic module?
No. The Connection module IO 6ES7194-4..00-0AA0 must be ordered separately.
