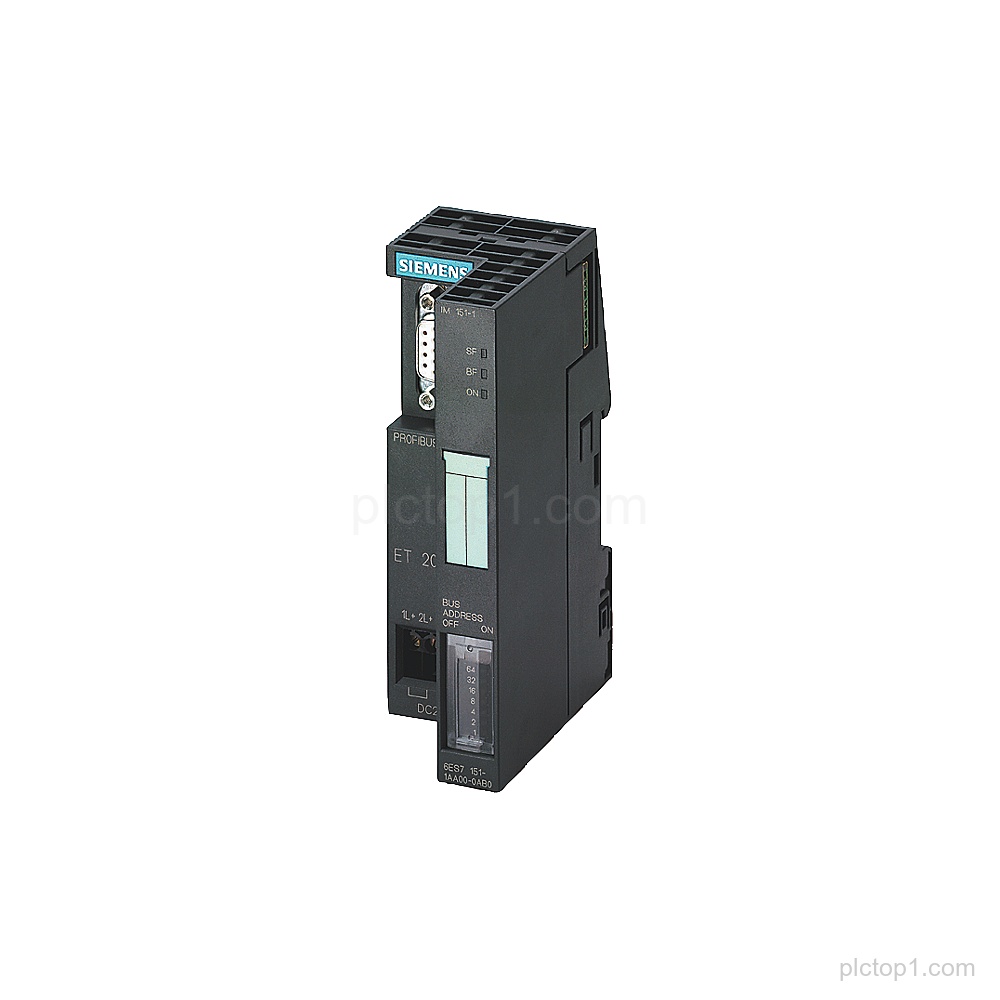

SIMATIC DP Interface module IM151-1 High Feature f. ET200S supports transmission rates up to 12 Mbit/s and provides bus connection via 9-pin D-sub incl. termination module. Part number: 6ES7151-1BA02-0AB0.
Detailed Parameters
Product type:Spare part
SIMATIC DP designation:Interface module IM151-1 High Feature f. ET200S
Transmission rate:up to 12 Mbit/s
Data volume (I/O max.):244 bytes each
Maximum number of connectable I/O modules:max. 63 modules can be connected
Isochronous mode:is supported
Bus connection:via 9-pin D-sub incl. termination module
Engineering Context
The Interface module IM151-1 High Feature f. ET200S is intended as a spare part within SIMATIC DP.
The module supports DP transmission rates up to 12 Mbit/s and provides a defined I/O data volume of 244 bytes each for I/O max.
Bus connection is provided via 9-pin D-sub including the termination module, with isochronous mode supported.
