Product information

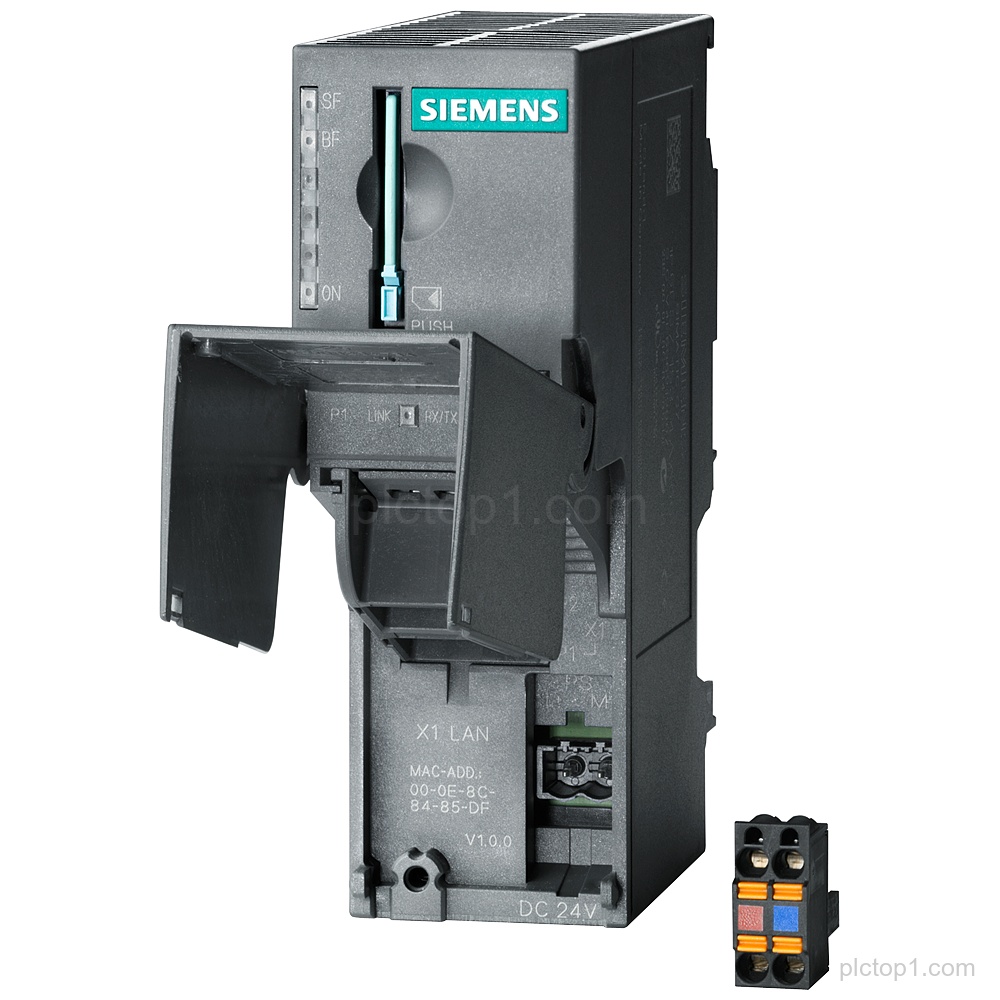

SIMATIC DP ET 200M IM 153-4 PN IO spare part with part number 6ES7153-4AA01-0XB0 for connection of up to 12 S7-300 modules, including module exchange without PG and operation without MMC.
Detailed Parameters
Product family / system:SIMATIC DP
Application / device:connection ET 200M IM 153-4 PN IO
Part number:6ES7153-4AA01-0XB0
Supported modules:for max. 12 S7-300 modules
Extended functions:isochronous real time communication class 1 and 2
Module exchange:module exchange without PG
Operation:operation without MMC
Maintenance support:maintenance support of new IO modules
Engineering Context
The SIMATIC DP ET 200M IM 153-4 PN IO provides a connection for systems with up to 12 S7-300 modules.
The IM 153-4 PN IO extended functions include isochronous real time communication class 1 and 2.
The module supports module exchange without PG and operation without MMC, with maintenance support for new IO modules.
FAQ
1. What is the product for part number 6ES7153-4AA01-0XB0?
It is a SIMATIC DP spare part: connection ET 200M IM 153-4 PN IO.
2. For how many S7-300 modules is the ET 200M IM 153-4 PN IO connection specified?
For max. 12 S7-300 modules.
3. Which extended functions are listed for this IM 153-4 PN IO connection?
Isochronous real time communication class 1 and 2.
4. Does this product support module exchange without PG?
Yes, module exchange without PG is listed.
5. Is MMC required for operation?
No, operation without MMC is listed.
6. What maintenance support is stated for new IO modules?
Maintenance support of new IO modules is listed.
